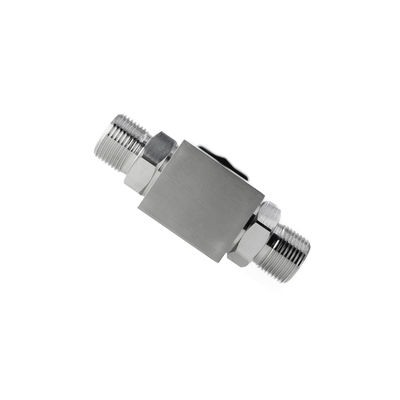

SS304 IP68 Differential Pressure Transducer With G1/4 Both Side Threaded
| Place of Origin | China |
|---|---|
| Brand Name | Sier |
| Certification | CE,RoHS |
| Model Number | SPT90 |
| Minimum Order Quantity | 1 |
| Price | USD50~70/Piece |
| Packaging Details | Carton |
| Delivery Time | 7 |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 pieces each month |
Product Details
| Housing | Stainless Steel 304 | Diaphragm | Stainless Steel 316L |
|---|---|---|---|
| O-ring | Viton | Filled Liquid | Silicon Oil |
| Pressure Port | G1/4 Female | Storage Temp. | -40～120 |
| High Light | IP68 flush mount pressure transducer,RoHS SS304 displacement measurement sensor,IP68 contact displacement sensor |
||
Product Description
Features
·Full stainless steel construction, compact size, easy installation;
·Using piezoresistive differential pressure sensor, 316L isolated diaphragm;
·Temperature compensation and aging, stable performance;
·Zero and span adjustable outside;
Introduction
SPT90 uses piezoresistive differential pressure sensor as sensing element. Silicon oil is filled in between die and two diaphragms, when measured differential pressure is added on two diaphragm, the pressure could be transferred onto die through silicon oil. Sensor die connects with amplifier circuit through wires, using semi-conductor’s piezoresistive effect, transforming differential pressure signal into electric signal. The whole product is used for differential pressure measurement of petroleum, chemi-industry, power station and hydrology, etc.
Specification
| Min. | Typ. | Max. | Unit | ||
| 0.5 | 0.5 | %FS | |||
| 0.5 | 0.5 | ||||
| Zero Thermal error | 0～100kPa | 0.75 | 1.25 | ±%FS, @25℃ | |
| 200～3500kPa | 0.5 | 0.75 | |||
| FS Thermal error | 0～100kPa | 0.75 | 1.25 | ||
| 200～3500kPa | 0.5 | 0.75 | |||
| Stability | ≤200kPa | 0.5 | %FS/year | ||
| ≤3500kPa | 0.2 | ||||
| Static pressure effect | 0.05 | ±%FS, each 100kPa | |||
| Compensation temp. | 0～50 | ℃ | |||
| Operation temp. | -10～80 | ||||
| Storage temp. | -40～120 | ||||
Electric Characteristic
| Power supply | 2-wire 15～28VDC 3-wire 15～28VDC |
| Output signal | 2-wire 4～20mADC 3-wire 0/1～5VDC,0～10/20mADC |
| Electric connection | plug connection or Φ7.2mm 7-pin cable |
| Response time(10%～90%) | ≤1ms |
| Insulation resistor | 100MΩ,50VDC |
Construction Material
| Housing | stainless steel 1Cr18Ni9Ti |
| Diaphragm | stainless steel 316L |
| O-ring | Viton |
| Filled liquid | silicon oil |
| Pressure port | G1/4 female |
Environment Condition
| Shock effect | ≤1% at 3gRMS, 30～2000Hz |
| Impact | ≤1% at 100g, 10ms |
| Lifetime | 1×108 pressure cycles |
| Media | liquid or gas which is compatible with construction material |
