4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT21C
Minimum Order Quantity 1
Price USD20~35/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing SS304 Pressure Port SS304
Diaphragm SS316L Sealing Gasket Viton
Plug Housing Plastic Cable Polyethylene
High Light

110MPa Low Cost Pressure Transmitter

,

4ma capacitive fuel level sensor

Leave a Message
Product Description

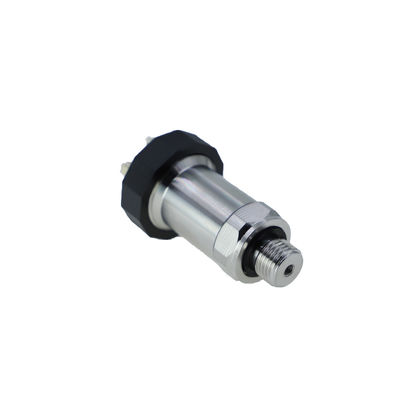

4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 0

Features4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 1

  • Reliable performance, easy application
  • Short protection and reverse polarity protection
  • Gauge, absolute and sealed gauge optional
  • Compact size

Specification

Pressure range -0.1…0~0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.5%FS
Long term stability max. ±0.3%FS/year
Offset thermal drift 0.1%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
Span thermal drift 0.1%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
Compensated temp. 0~50℃
Application temp. -30~80℃
Storage temp. -40~120℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug/M12 connector

Construction and Outline Dimension

Construction material:

Housing SS304
Pressure port SS304
Diaphragm SS316L
Sealing gasket Viton
Plug housing Plastic

4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 2

Outline dimension:

4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 3

Electrical Connection

4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 4

4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 5

4-20mA China Factory Compact Size Low Cost Pressure Transmitter With High Quality 6
