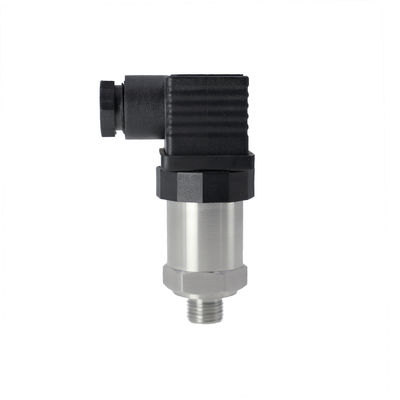

SS316L Low Cost Pressure Transmitter

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT21C
Minimum Order Quantity 1
Price USD20~35/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing SS304 Pressure Port SS304
Diaphragm SS316L Sealing Gasket Viton
Plug Housing Plastic Cable Φ7.5mm Polyethylene Special Cable
Highlight

RoHS 20mA Smart Pressure Transmitter

,

SS316L differential pressure measurement

,

20mA differential pressure measurement

Leave a Message
Product Description

Compact Size Pressure Transmitter

FeaturesSS316L Low Cost Pressure Transmitter 0

  • Reliable performance, easy application
  • Short protection and reverse polarity protection
  • Gauge, absolute and sealed gauge optional
  • Compact size





Specification

Pressure range -0.1…0~0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.5%FS
Long term stability max. ±0.3%FS/year
Offset thermal drift 0.1%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
Span thermal drift 0.1%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
Compensated temp. 0~50℃
Application temp. -30~80℃
Storage temp. -40~120℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug/M12 connector





Construction and Outline Dimension

Construction material:

Housing SS304
Pressure port SS304
Diaphragm SS316L
Sealing gasket Viton
Plug housing Plastic

SS316L Low Cost Pressure Transmitter 1

Outline dimension:

SS316L Low Cost Pressure Transmitter 2

Electrical Connection

SS316L Low Cost Pressure Transmitter 3

SS316L Low Cost Pressure Transmitter 4
