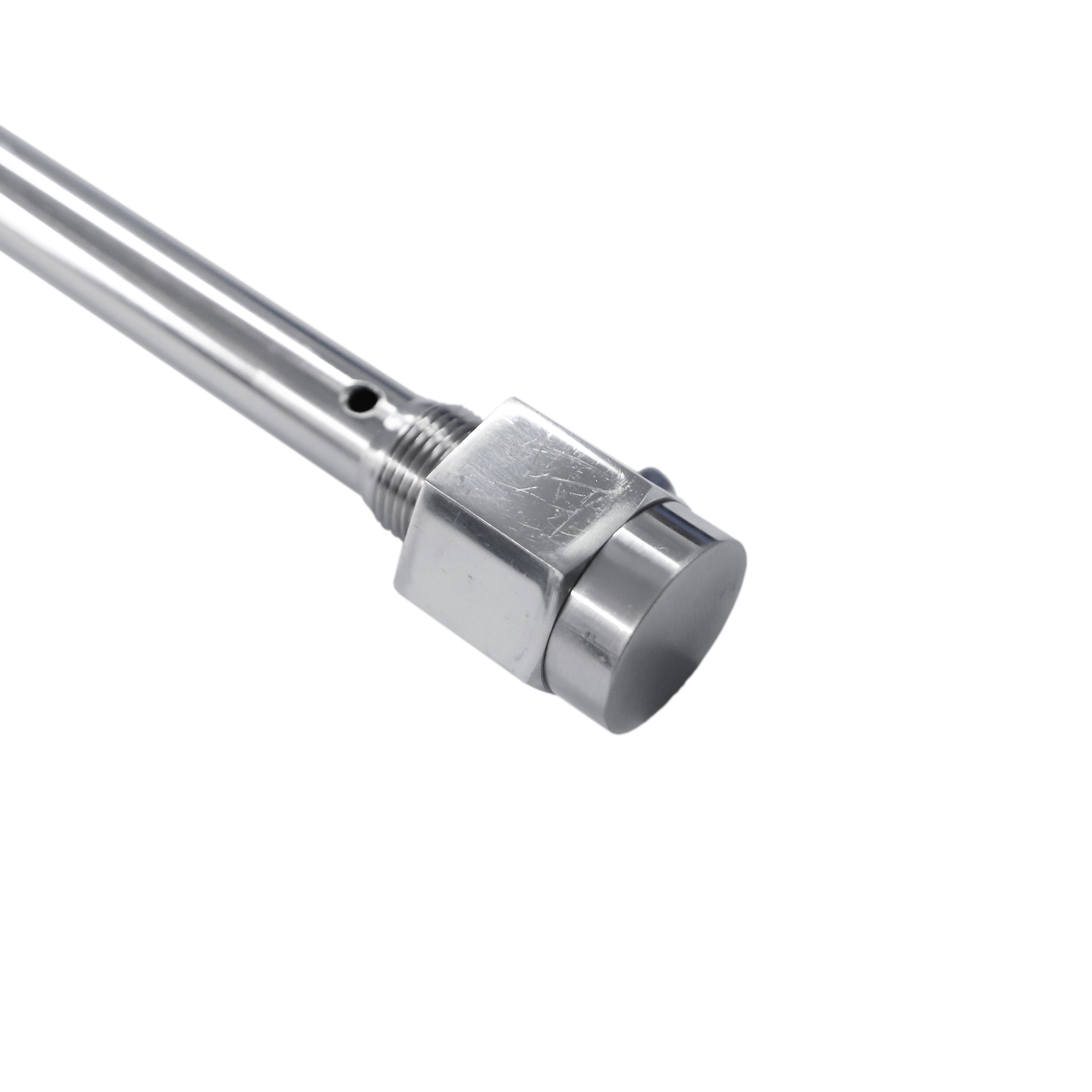

DC5V Capacitive Fuel Level Sensor

  • DC5V Capacitive Fuel Level Sensor
  • DC5V Capacitive Fuel Level Sensor
  • DC5V Capacitive Fuel Level Sensor
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT61
Minimum Order Quantity 1
Price USD40~80/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing SS304 Pressure Port SS304
Probe SS304 Sealing Gasket NBR/Viton
Cable PE Cable Protection Probe PE
Highlight

RoHS DC5V submersible pressure transmitter

,

RoHS 100mm submersible level transducer

,

DC5V submersible water pressure sensor
Leave a Message
Product Description





DC5V Capacitive Fuel Level Sensor 0



FeaturesDC5V Capacitive Fuel Level Sensor 1

Reliable performance, easy application
All Stainless-Steel construction
Short protection and reverse polarity protection
4/20mA, 0/5V, 0/3.3V, RS485, RS232 optional
Customize design available



Introduction

The capacitive fuel sensor for general fuel measurement purpose. It uses full stainless-steel construction and high resolution capacitive measurement system, make sure the measurement result is stable even when on the moving vehicle. It is widely used on heavy duty trucks, fuel distribution station, diesel generator, and other site which need to measure the fuel level constantly. It also provides GPS system for customer to monitoring abnormal fuel consumption.









Specification

Measure range 100~1400mm
Pressure range -1~4bar
Working temperature -35~+70℃
Probe size φ16mm
Power supply DC5V, 9~36V
Working current ＜10mA
Mounting option G1/2 thread, Flange mounting(customized connection available)
Output signal 4~20mA, 0~3.3V, 0~5V, RS485, RS232, CAN.
Explosion proof EXd II CT5
Accuracy ±0.5%
Electrical Connection Wires or customized plug



DC5V Capacitive Fuel Level Sensor 2


Construction and Outline Dimension
Construction material:

Housing SS304
Pressure port SS304
Probe SS304
Sealing gasket NBR/Viton
Cable PE
Cable protection probe PE




DC5V Capacitive Fuel Level Sensor 3


DC5V Capacitive Fuel Level Sensor 4

DC5V Capacitive Fuel Level Sensor 5
