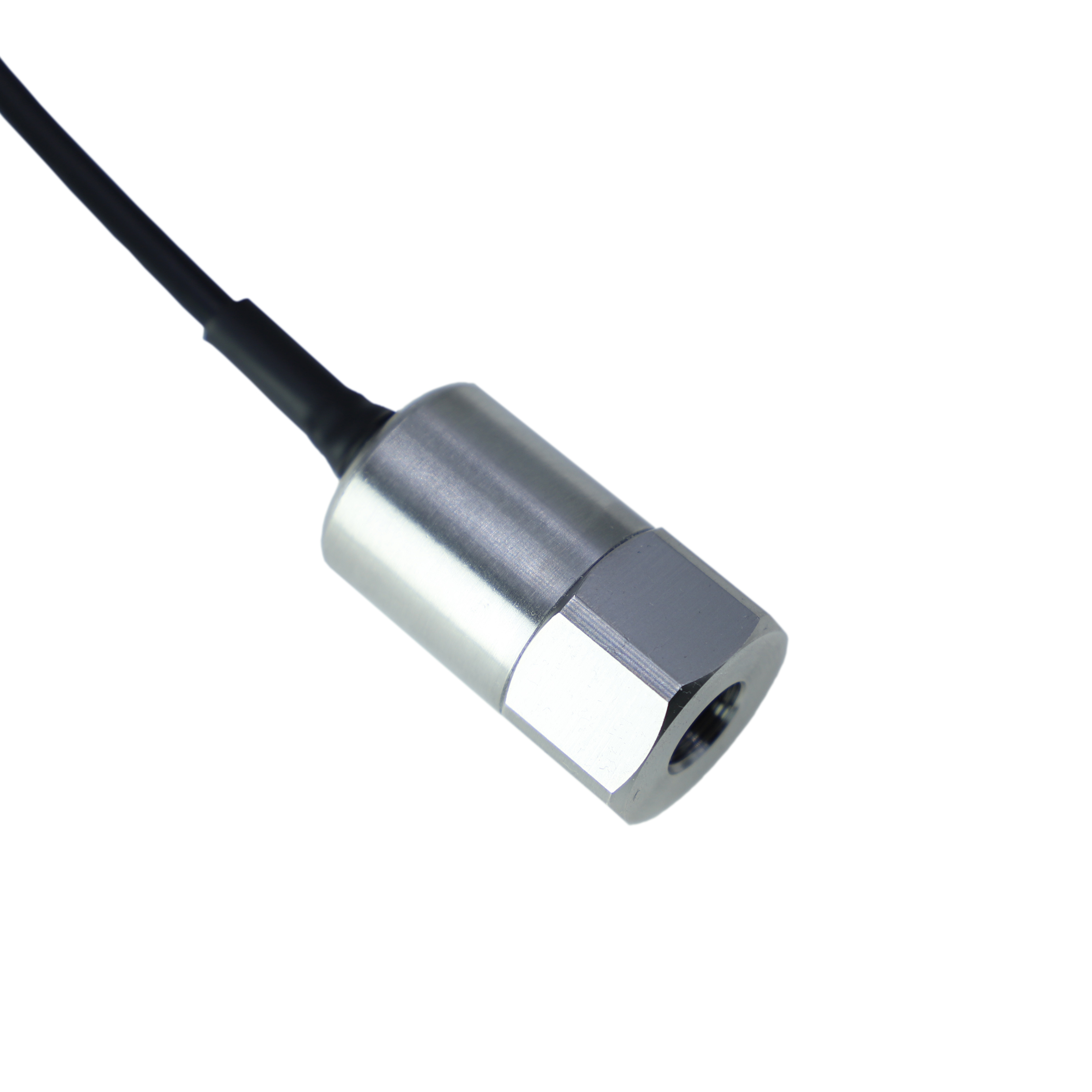

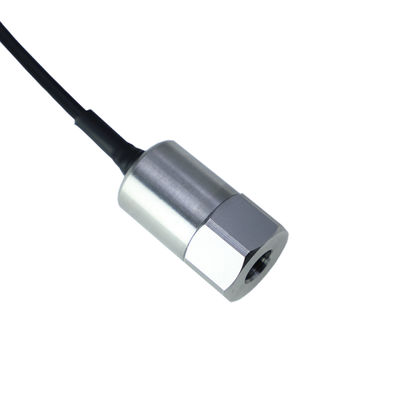

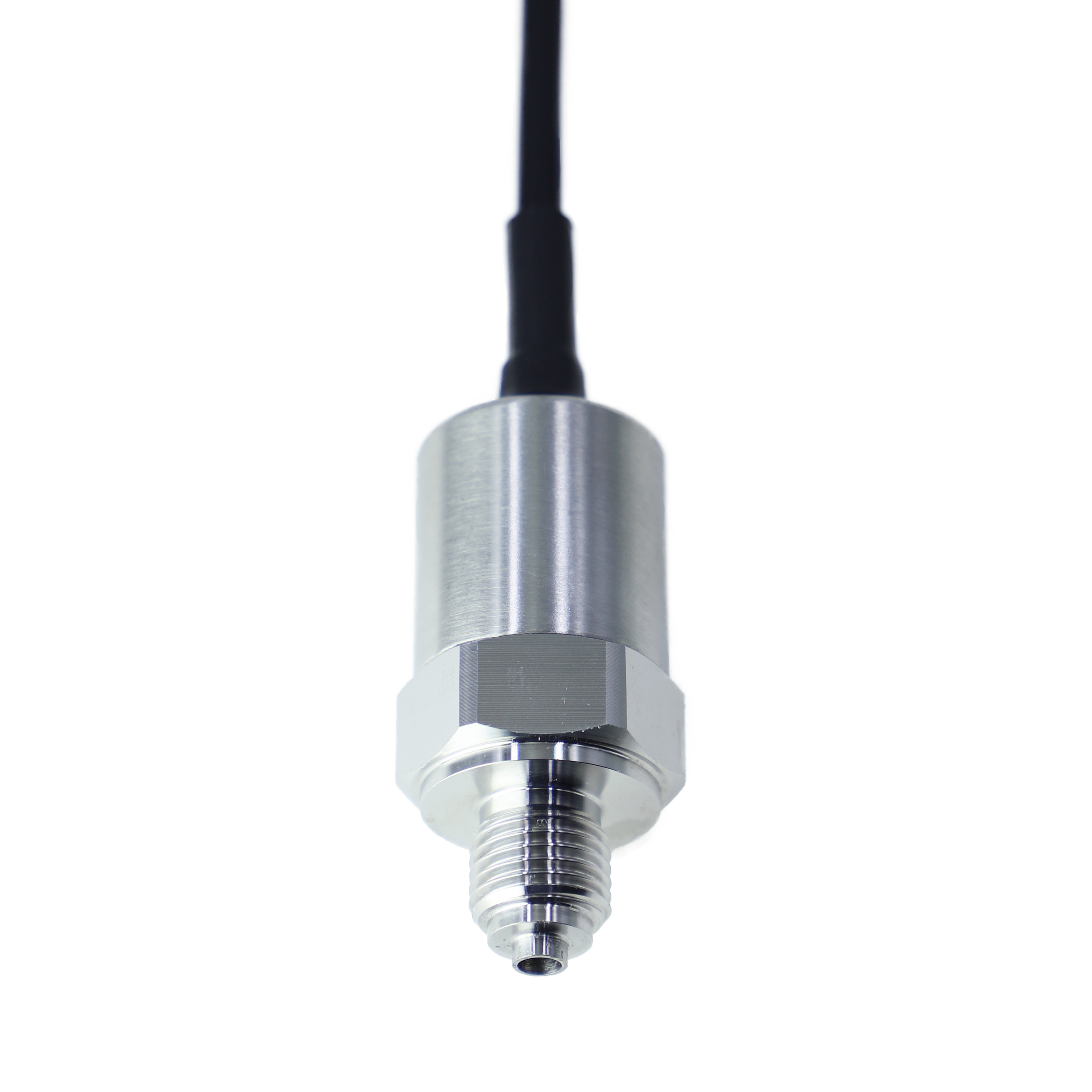

RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter

  • RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter
  • RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter
  • RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT21C1
Minimum Order Quantity 1
Price USD15~25/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing SS304 Pressure Port SS304
Diaphragm SS316L Sealing Gasket Viton
Plug Housing Plastic Cable Φ7.5mm Polyethylene Special Cable
High Light

4mA G1/4 low cost pressure transmitter

,

RoHS high pressure transducer

,

G1/4 Smart Pressure Transmitter
Leave a Message
Product Description

Pressure Transmitter

FeaturesRoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter 0

Reliable performance, easy application
Short protection and reverse polarity protection
Low cost
Compact size



Introduction

SPT21C1 is economical pressure transmitter, uses standard ceramic pressure sensor and special circuit board to make it cost effective and good performance. This product is used for measure and control of liquid or gas pressure.



Specification

• Pressure range: 0～0.5…40MPa (0~5…400bar)
• Over pressure: 2 times FS
• Pressure type: Gauge
• Process connection: G1/4 male thread (or as per customer’s requirement)
• Accuracy: ±0.5％FS
• Long term stability: max. ±0.3%FS/year
• Offset thermal drift: ±0.02%FS/℃
• Application temp.: -30~80℃
• Storage temp.: -40~125℃
• Power supply: 12~28VDC
• Output signal: 4~20mADC(2 wires) 0/1~5VDC(3 wires)
• Load resistance: ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
• Housing protection: IP65
• Electrical connection: DIN43650 plug,M12 (or as per customer’s requirement)

RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter 1



Construction and Outline Dimension

Construction material:

• Housing: SS

• Pressure port: SS

• Sensor: Ceramic

• Sealing gasket: Viton

• Plug housing: Plastic

• Cable: Polyethylene

Outline dimension:

RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter 2

RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter 3

RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter 4

RoHS High Temperature 4mA G1/4 Low Cost Pressure Transmitter 5
