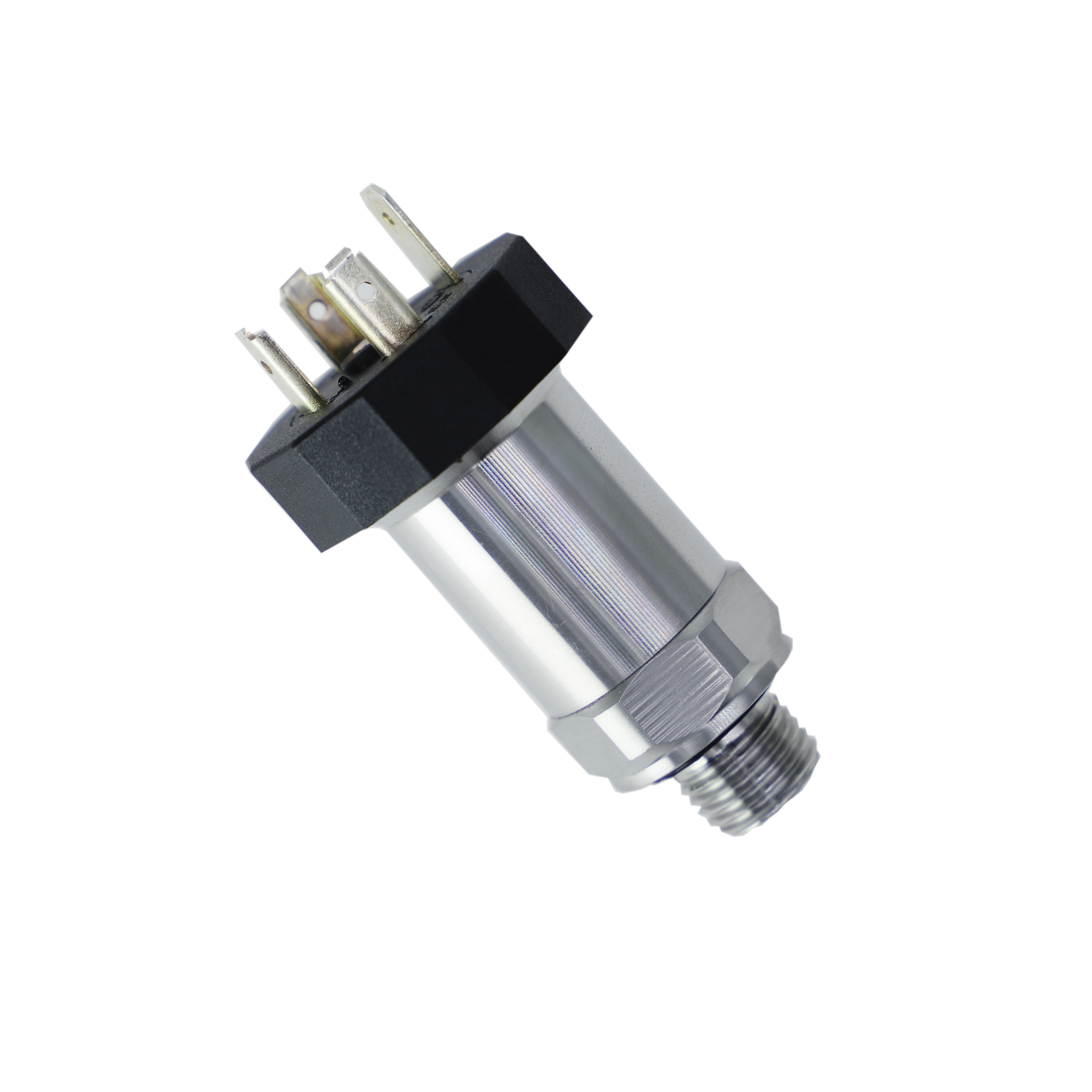

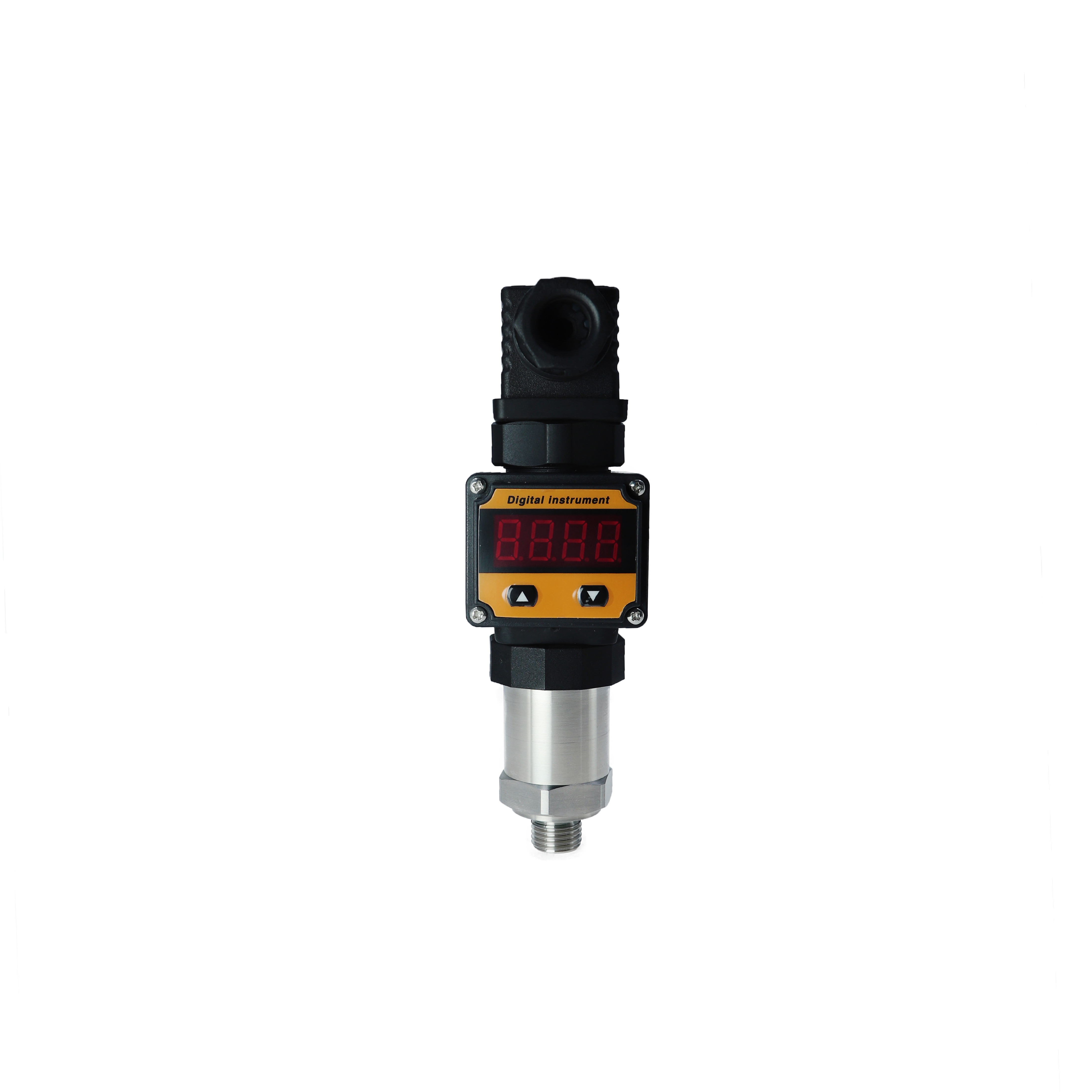

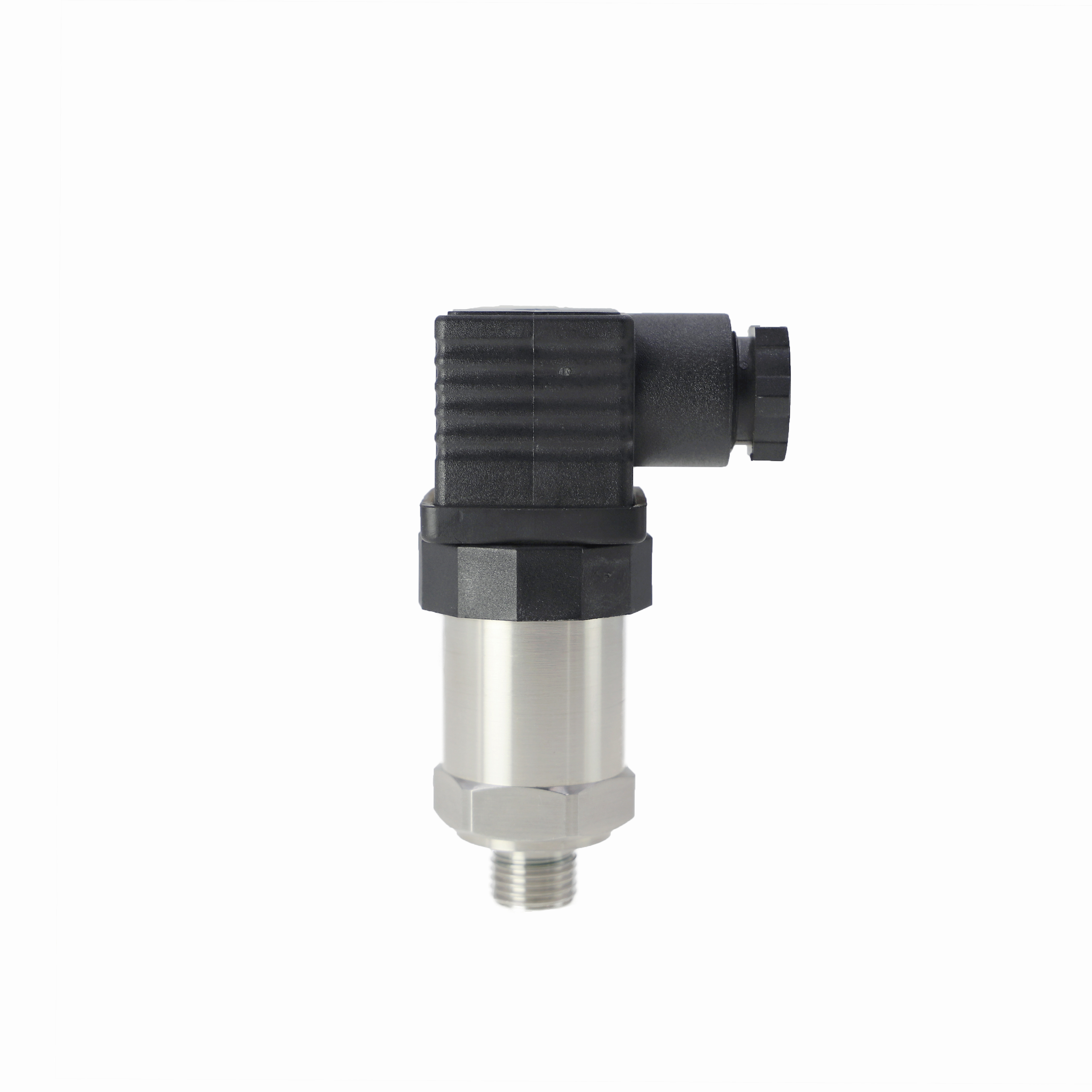

IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer

  • IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer
  • IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer
  • IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT21C
Minimum Order Quantity 1
Price USD20~35/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing SS304 Pressure Port SS304
Diaphragm SS316L Sealing Gasket Viton
Plug Housing Plastic Cable Φ7.5mm Polyethylene Special Cable
High Light

100MPa Ceramic Pressure Transmitter

,

4mA strain gauge pressure transducer

,

IP65 Ceramic Pressure Transmitter
Leave a Message
Product Description

Pressure Transmitter

FeaturesIP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer 0

  • Reliable performance, easy application
  • Short protection and reverse polarity protection
  • Gauge, absolute and sealed gauge optional
  • Compact size

Specification

  • Pressure range: -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
  • Over pressure: 1.5 times FS or 110MPa (min. value is valid)
  • Pressure type: Gauge/absolute/sealed gauge optional
  • Process connection: G1/4 male thread (or as per customer’s requirement)
  • Accuracy: ±0.5％FS
  • Long term stability: max. ±0.3%FS/year
  • Offset thermal drift: 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
  • Span thermal drift: 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
  • Compensated temp.: 0~50℃
  • Application temp.: -30~80℃
  • Storage temp.: -40~120℃
  • Power supply: 1 2~28VDC
  • Output signal: 4~20mADC(2 wires) 0/1~5VDC(3 wires)
  • Load resistance: ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
  • Housing protection: IP65
  • Electrical connection: DIN43650 plug/M12 connector

Construction and Outline Dimension

Construction material:

♦ Housing: SS304

♦Pressure port: SS304

♦ Diaphragm: SS316L

♦Sealing gasket: Viton

♦ Plug housing: Plastic

              ♦Cable: Φ7.5mm Polyethylene Special Cable

IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer 1

Outline dimension:

IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer 2

Electrical Connection

IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer 3

IP65 100MPa 4mA Low Cost High Stability Gauge Pressure Transducer 4
