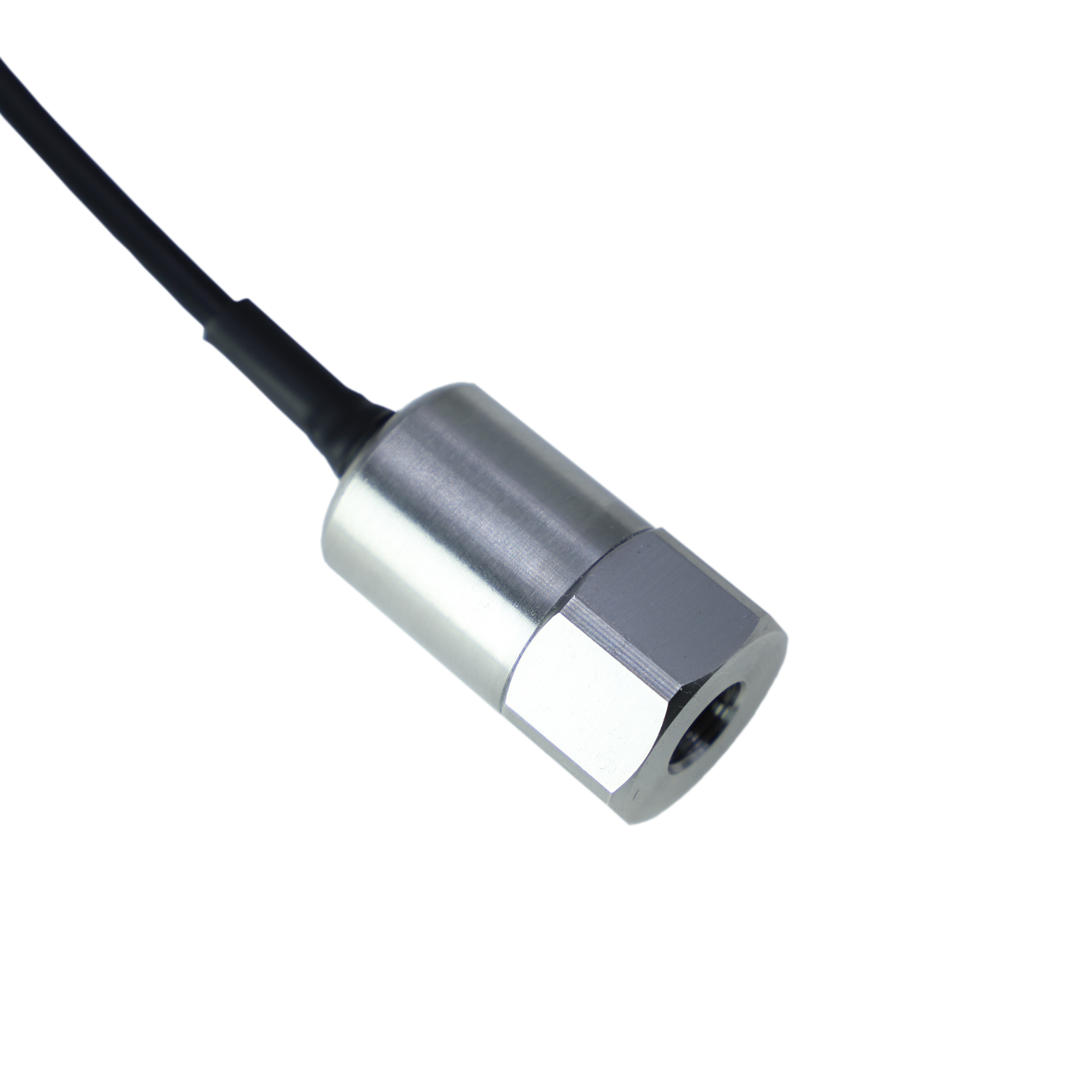

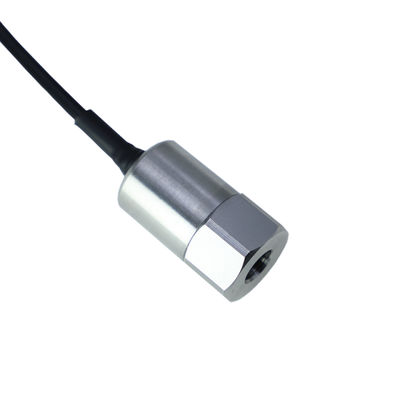

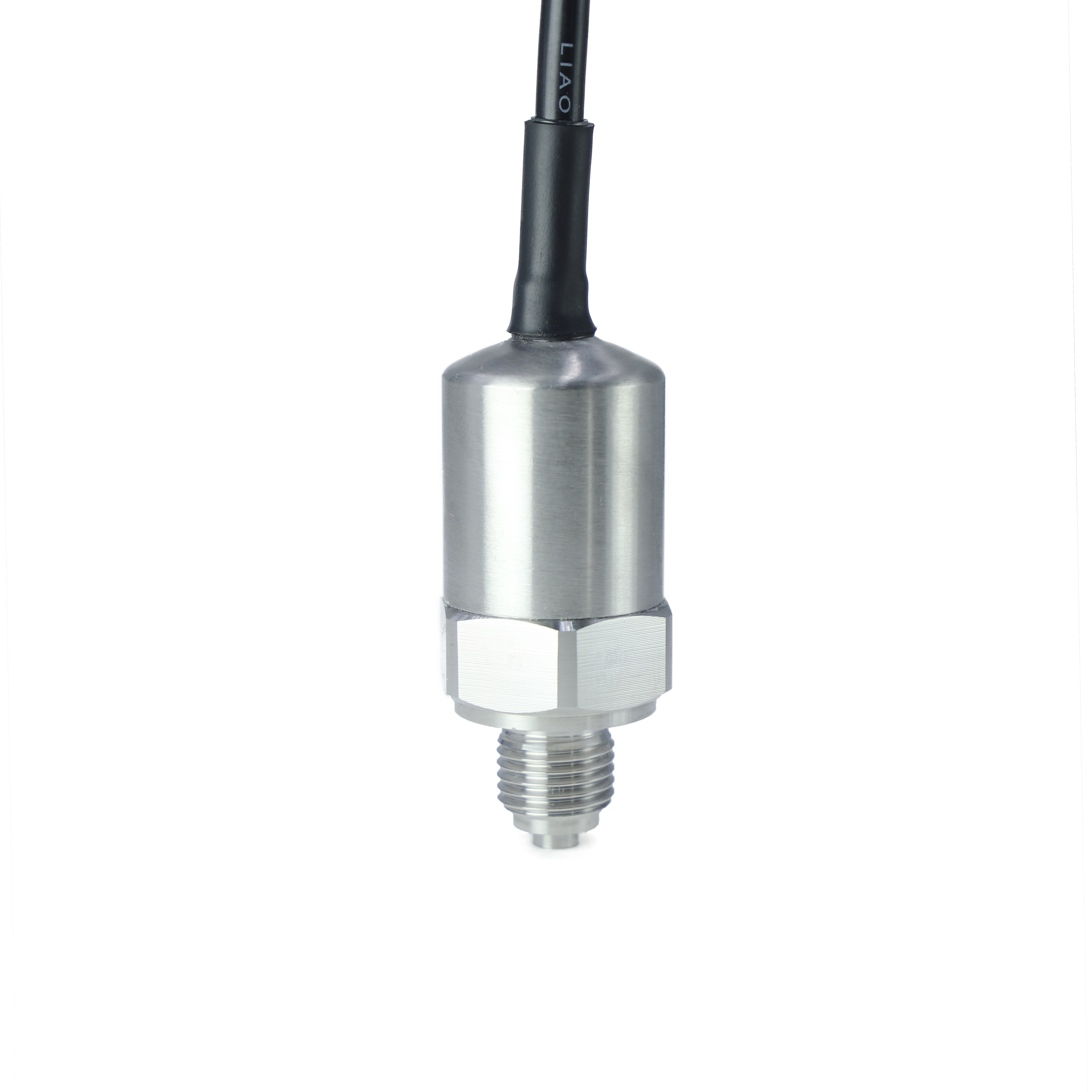

DC5V Low Cost Pressure Transmitter Polyethylene Cable Male Thread
| Place of Origin | China |
|---|---|
| Brand Name | Sier |
| Certification | CE,RoHS |
| Model Number | SPT21C1 |
| Minimum Order Quantity | 1 |
| Price | USD15~25/Piece |
| Packaging Details | Carton |
| Delivery Time | 7 |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 pieces each month |
Product Details
| Housing | SS304 | Pressure Port | SS304 |
|---|---|---|---|
| Diaphragm | SS316L | Sealing Gasket | Viton |
| Plug Housing | Plastic | Cable | Φ7.5mm Polyethylene Special Cable |
| Output | 4~20mADC(2 Wires) 0/1~5VDC(3 Wires) | ||
| High Light | DC5V low cost pressure transmitter,corrosion proof capacitive pressure transducer,0.5％FS gas pressure transmitter |
||
Product Description
Pressure Transmitter
Features
Reliable performance, good long term stability
easy application
Short protection and strong reverse polarity protection
Current and low cost
Compact size with light weight
Introduction
SPT21C1 is economical pressure transmitter, uses standard ceramic pressure sensor and special circuit board to make it cost effective. This product is easy to be installed,also OEM service offered.
Specification
| Pressure range | 0～0.5…40MPa (0~5…400bar) |
| Over pressure | 2 times FS |
| Pressure type | Gauge |
| Process connection | G1/4 male thread (or as per customer’s requirement) |
| Accuracy | ±0.5％FS |
| Long term stability | max. ±0.3%FS/year |
| Offset thermal drift | ±0.02%FS/℃ |
| Application temp. | -30~80℃ |
| Storage temp. | -40~125℃ |
| Power supply | 12~28VDC |
| Output signal | 4~20mADC(2 wires) 0/1~5VDC(3 wires) |
| Load resistance | ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire) |
| Housing protection | IP65 |
| Electrical connection | Hirschmann connector,M12 (or as per customer’s requirement) |
Construction and Outline Dimension
Construction material:
| Housing | SS |
| Pressure port | SS |
| Sensor | Ceramic |
| Sealing gasket | Viton |
| Plug housing | Plastic |
| Cable | Polyethylene |
Outline dimension:
