4-20ma 0-5v Large Range Pressure Transmitter For Air Liquids Pressure Sensor

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Minimum Order Quantity 1 piece
Price USD400~700/Piece
Packaging Details Carton
Delivery Time 7days
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Repeatability 0.04% FS Nonlinear 0.04% FS
Impact Resistance ~50g/1ms Response Time ≤ 1 Millisecond (typical)
Protection IP67 Type Large Range
Leave a Message
Product Description

Feathers
This type pressure transmitter is one kind of solid flattened diaphragm with special treatment at the measuring terminal, hard particles in the measured medium will not damage the isolated flattened diaphragm. Compact structure, corrosion resistance, vibration resistance, corpuscle impact resistance, wide range temperature compensation. It is especially suitable for the measurement of fluid pressure of high viscous substances or with particulates. It solves the problem of medium blockage in the pressure tapping hole. pressure transmitter adopts the advanced electronic ceramic technology in the world to measure the dielectric-free liquid in the components. The medium and high temperature pressure transmitter is assembled with imported high temperature resistant sensitive elements. transducer probe can work stably for a long time at 150℃. All three products both have the characteristics of overload resistance, strong impact resistance, good linearity, long-term stability, wide temperature range and corrosion resistance. Used in hydraulic, military, scientific research, aerospace, petroleum, chemical industry, electric power, ocean and other fields.

Our services
Service Commitment

Product Quality
All products are guaranteeded for one year, if any problems happen in guarantee period.our company will maintain for free.


Spare Part Replacement
First mold for free,more than 50% discount if more order.


Technical Service
We can provide design, installation and debugging services or remote maintanance teaching.


Detail Product Information
Provide picture,video,instruction and product brochure.



Specification

Media to be measured
wet soil, crude oil, corrosive liquids and gases
Pressure type absolute pressure, sealed reference pressure, vent pressure
Range 0~35MPa, 70MPa, 105MPa, 140MPa, 210MPa, 315MPa
Power supply 9-30VDC
Output signal 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC, 3mV/V
Nonlinear 0.04% FS
Repeatability 0.04% FS
Accuracy 0.1% FS, 0.2% FS, 0.5% FS
Long-term stability 0.1% FS / year (typical)
Working temperature -43~85°C/125°C
Compensation temperature -25 ~ 70 ° C / 100 ° C
Response time ≤ 1 millisecond (typical)
Insulation resistance ≥500MΩ/100V
Overload pressure 200% FS (2 times full scale, special: 5 times full scale)
Destruction pressure 500% FS (5 times full scale, special 10 times full scale)
Vibration resistance about 10g/0~2000HZ
Impact resistance about 50g/1ms
Connection method Chuck seal or specifified
Wetted material
17-4PH stainless steel
Relative humidity 0~100%RH
Protection rating IP67
Electrical output lead aerospace connector, Amphenol

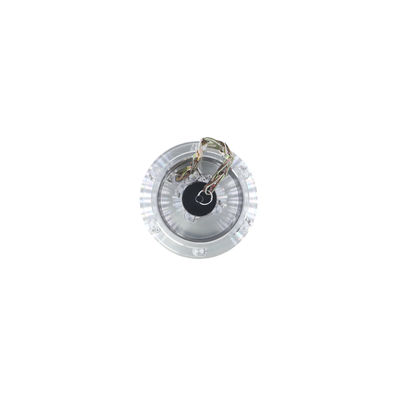

4-20ma 0-5v Large Range Pressure Transmitter For Air Liquids Pressure Sensor 0

 Q&A

Q: What are your advantages compared with your competitors?
A: With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.

Q: Are you manufacturer?
A: Yes, we are manufacturer.

Q: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.


Q: What are your Payment Terms?
Answer: Payment shall be made by T/T etc.


Q: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.

Q: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.

If have any questions please contact with us freely
