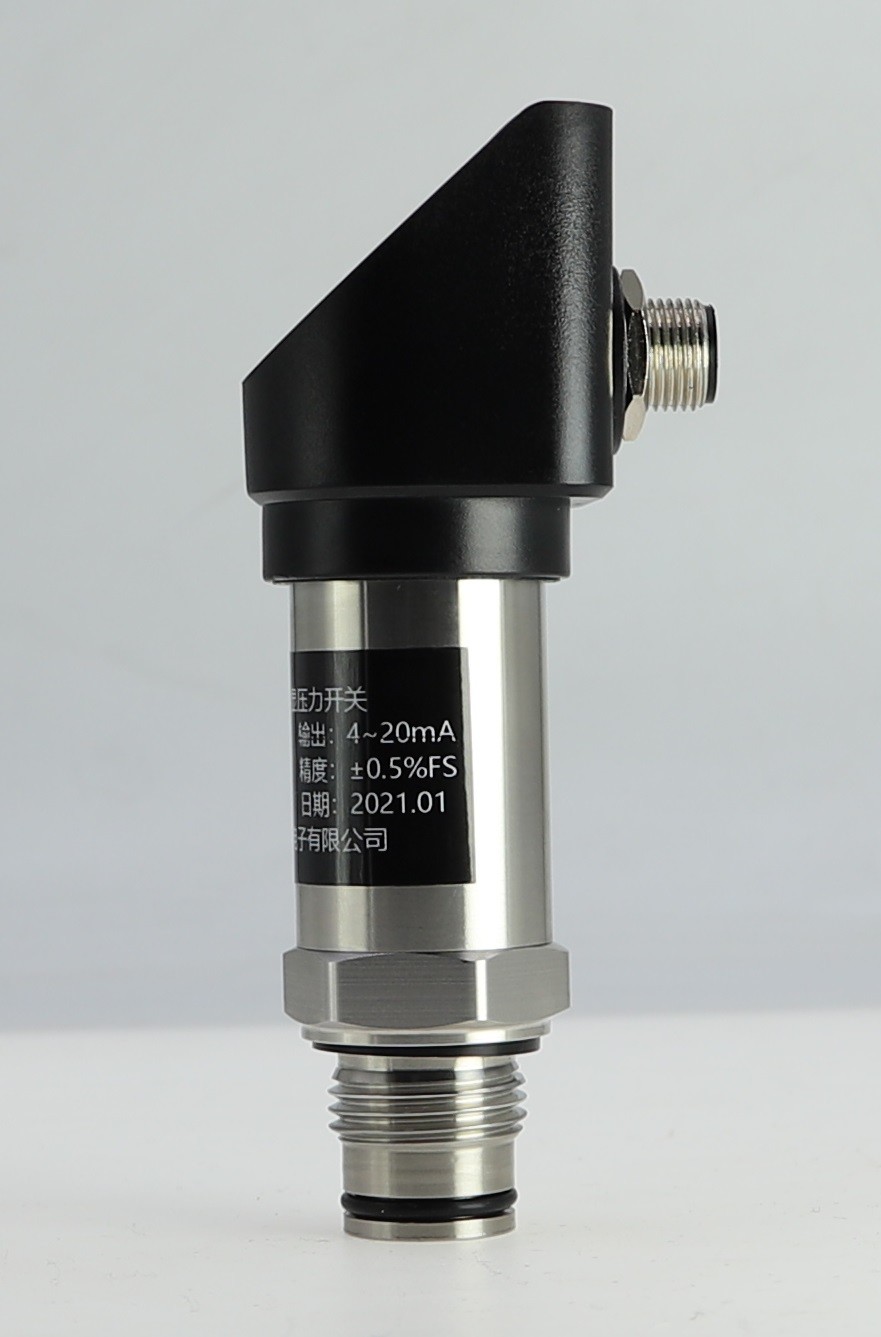

24mA Air Compressor Pressure Switch Fan Pressure Switch

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPK21
Minimum Order Quantity 1piece
Packaging Details Carton
Delivery Time 7days
Supply Ability 5000 pieces each month
Product Details
Place Of Origin Shaanxi, China Model Number SPK21
Max. Voltage 10V Type 316L Stainless Steel Adjustable Pressure Control Switch
Max. Current 24mA Feature Fan Pressure Switch
High Light

24mA Air Compressor Pressure Switch


10V Fan Pressure Switch


SS316L Air Compressor Pressure Switch

Leave a Message
Product Description

24mA Air Compressor Pressure Switch Fan Pressure Switch


Performance Character

electric pressure switch can be used for the gas and liquid medium

Adjustable controller, adjustable range is 0.02~10MPa


Range Table of fan pressure switch

Range Switch Value Switch frequency Sensor material
0.0-0.61MPa 0.04MPa 20times/min. 304
0.02-1MPa 0.025MPa 20times/min. 304
0.05-2.5MPa 0.25MPa 20times/min. 304
0.3-6MPa 0.3MPa 20times/min. 304
1-10MPa 0.3MPa 20times/min. 304


Setting Value Adjustment of fan pressure switch

1). Use the wrench to clamp the six square plane of controller, to screw the pressure interface into pressure interface of the pressure check table.

2). Open the cover plate, to connect the one end of cable to the wiring terminal 1-3, another end connected with universal meter.

3). To add the pressure value into necessary value, adjust the screw with counterclockwise rotation. Make the setting value from large to small, till the switch contacts switch the value in the required pressure value. And change the pressure value back and forth on required pressure value, so that to check the switch value of contacts is the needed pressure value.

4). Closed the cover plate

Single pole double throw micro switch process.

Connect terminal 1-3, to put through until pressure raised to upper switching value.

Connect terminal 1-2, to switch off until pressure raised to upper switching value


The quality principle: Quality is the best sales
Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow
1.All parts will be shipped out within 1 - 3 working days after comfirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
4.Any import fees or charges are afed by the buyers
Service :
1.Provide you one-stop service of electronic components
2. Competitive price advantage help to save your purchase cost and bring in you more profits
3. Having advanced e-commerce capabilities
4. Quick and accurate delivery and flexible logistics support
5. Personalized service, based on your programs and ideas to serve you






Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2017, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Delivered with DHL, Fedex, TNT, with delivery time in 4 - 5 business days.
