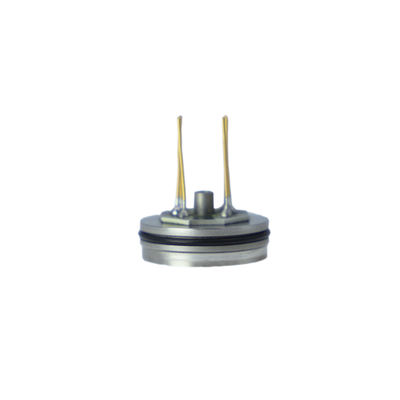

SPT86 High Stable Piezoresistive OEM Pressure Sensor

Features1.5mA 70MPa Piezoresistive OEM Pressure Sensor For Pressure Calibrator 0
·Pressure range -100kPa~0kPa~10kPa…100MPa
·Gauge, absolute, sealed gauge
·Constant current power supply
·Isolated construction, enable to measure various media
·Φ19mm standard OEM pressure sensor
·Full stainless steel 316L

Application
·Industrial process control ·Level measurement ·Gas, liquid pressure measurement
·Pressure checking meter ·Pressure calibrator ·Liquid pressure system and switch
·Cooling equipment and air conditioning system ·Aviation and navigation inspection

Introduction
SPT81 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Ф19mm. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.
SPT81 pressure sensor is inspected and screened on automatic production line, testing and checking time after time strictly. It is widely used for various pressure measurement fields.

Electric Specification


Power supply≤1.5mADC
Electric connectionKovar pin or 100mm silicon rubber flexible wires
Common mode voltage output50% input (typ.)
Input impedance3kΩ~6kΩ
Output impedance3kΩ~6kΩ
Response (10%~90%)<1ms
Insulation resistor100MΩ, 100VDC
Overpressure2 times FS



Construction


Diaphragmstainless steel 316L
Housingstainless steel 316L
PinKovar or silicon rubber flexible wires
O-ringNBR
Net weight~16g



Environment Condition


Position effectdeviate 90° from any orientation, zero change ≤±0.05%FS
Shockno change at 10gRMS,(20~2000)Hz
Impact100g,11ms
Media compatibilitythe gas or liquid which is compatible with stainless steel and NBR




Basic Condition


Media temperature(25±1)℃
Environment temperature(25±1)℃
Humidity(50%±10%)RH
Local air pressure(86~106)kPa



Basic Specification


Specification*Min.Typ.Max.Units
Linearity ±0.15±0.3%FS,BFSL
Repeatability ±0.05±0.075%FS
Hysteresis ±0.05±0.075%FS
Zero output  ±2mVDC
FS output45100130mVDC
Zero thermal error ±0.75±1.0%FS
Span thermal error ±0.75±1.0%FS
Compensated temp. range0~70
0~50(10kPa,20 kPa)
Working temp. range-40~125
Storage temp. range-40~125
Stability error  ±0.2%FS/year
*testing at basic condition


1.5mA 70MPa Piezoresistive OEM Pressure Sensor For Pressure Calibrator 1

Order Guide
1.5mA 70MPa Piezoresistive OEM Pressure Sensor For Pressure Calibrator 2

Order Note:
1. We suggest you to use Floating construction when you install the sensor to prevent affecting sensor stability;
2. Please pay attention to protect sensor isolated diaphragm and ceramic compensated board, to avoid damaging sensor and affecting the performance;
3. When the temperature exceeds viton working temperature, or the user needs to use sensor at rugged environment, please contact our company freely.
1.5mA 70MPa Piezoresistive OEM Pressure Sensor For Pressure Calibrator 3
