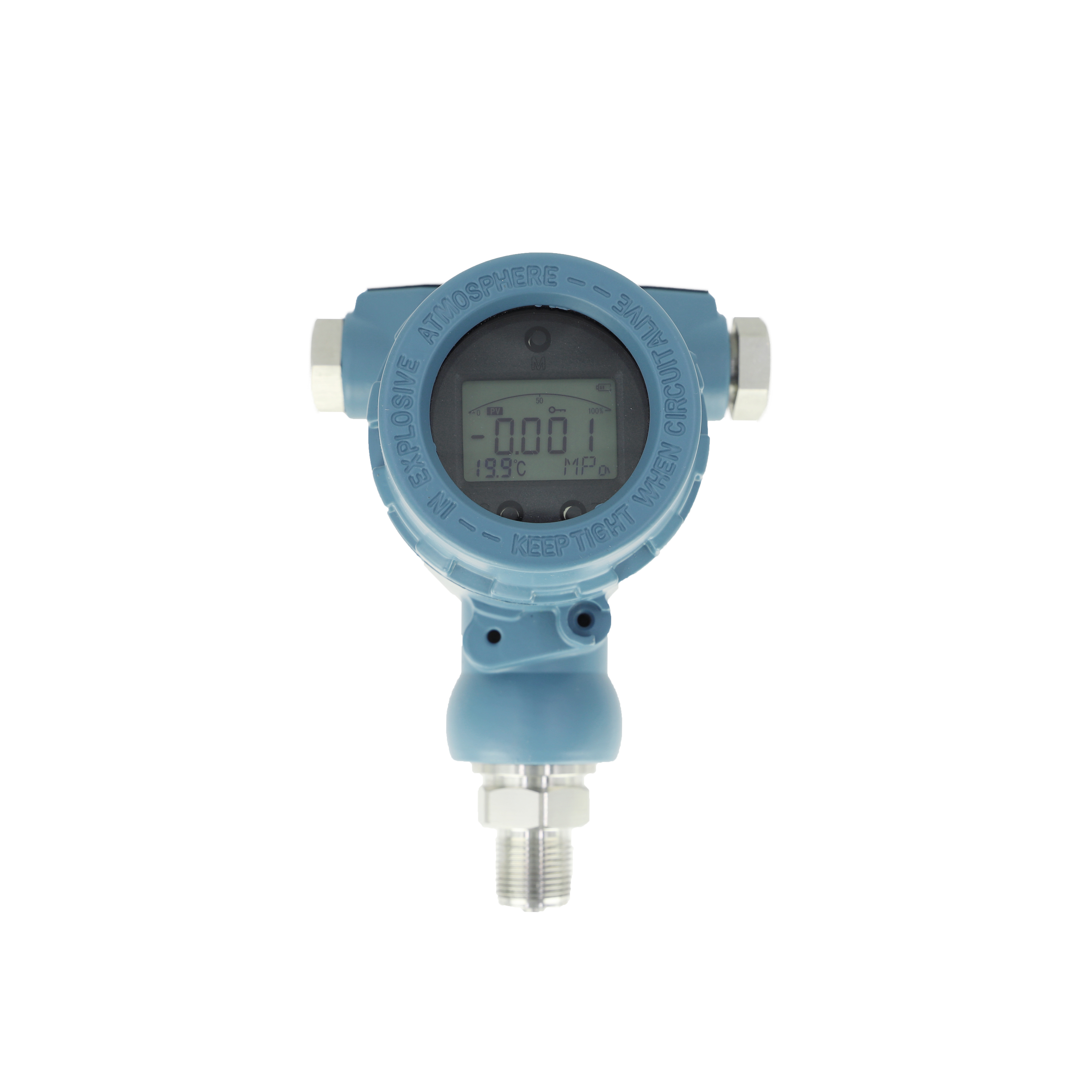

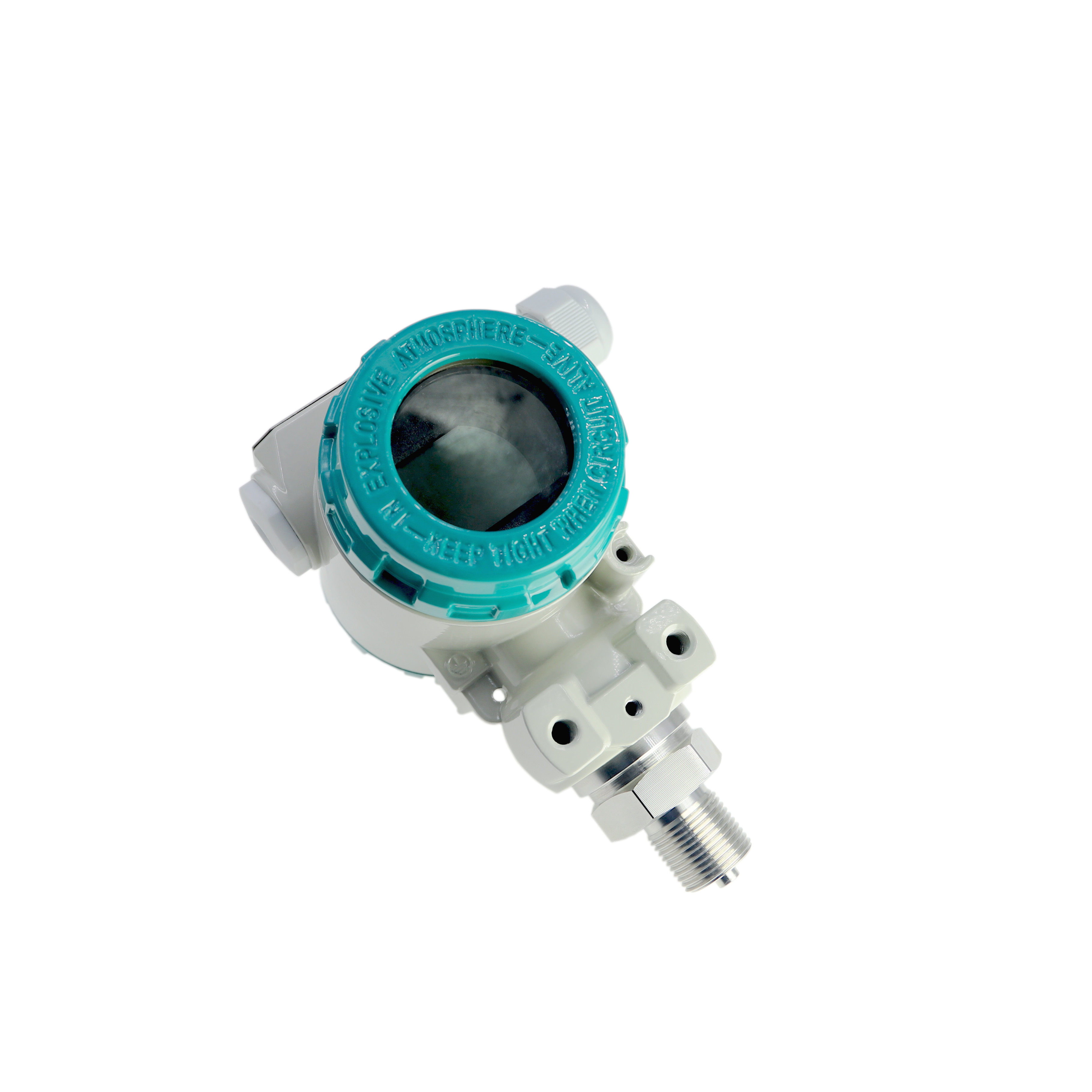

Wireless 24VDC SS316L High Precision Pressure Transmitter

  • Wireless 24VDC SS316L High Precision Pressure Transmitter
  • Wireless 24VDC SS316L High Precision Pressure Transmitter
  • Wireless 24VDC SS316L High Precision Pressure Transmitter
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT22Z
Minimum Order Quantity 1
Price USD40~80/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing Aluminum-alloy Pressure Port SS304 Or SS316L Optional
Diaphragm SS316L Sealing Gasket Viton
Cable Gland Plastic Housing Protection IP65
High Light

CE SS316L high precision pressure transmitter

,

CE 36VDC capacitance type pressure transmitter

,

Viton SS316L industrial pressure transducer
Leave a Message
Product Description



Smart Pressure Transmitter

FeaturesWireless 24VDC SS316L High Precision Pressure Transmitter 0

  • Double shell outside
  • Triple protection
  • Rapid response
  • Imported chip
  • LCD display

Introduction

The product uses piezoresistive OEM pressure sensor as sensing element, which is accurate tested and laser trimmed to compensated zero and sensitivity in wider temperature range. This product is high precision,high sensitivity, a variety of electrical connections are optional. It's medeicine and health, wine, beverage, paper, glue and other sticky easily blocked occasions. The product ca  used for medical field, wine&milk enterprise application, natural gas pipeline application, constant pressure water application, etc.

Specification

Pressure range -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/2 male thread (or as per customer’s requirement)
Accuracy ±0.1％FS ±0.2％FS optional
Indicator 4 digit LCD
Display range -1999~9999
Compensated temp. 0~50℃
Environment temp. -20~70℃
Power supply 18~36VDC
Output signal 4~20mADC(2 wires)/RS485
Housing protection IP65
Electrical connection Cable gland

Wireless 24VDC SS316L High Precision Pressure Transmitter 1

Wireless 24VDC SS316L High Precision Pressure Transmitter 2

Construction and Outline Dimension

Construction material:

  ♦Housing: Aluminum-alloy

  ♦Pressure port: SS304 or SS316L optional

  ♦Diaphragm: SS316L

  ♦Sealing gasket: Viton

  ♦Cable gland: Plastic

Outline dimension:                                            Electrical Connection:

Wireless 24VDC SS316L High Precision Pressure Transmitter 3                          Wireless 24VDC SS316L High Precision Pressure Transmitter 4

Wireless 24VDC SS316L High Precision Pressure Transmitter 5
