Waterproof 20mA SS316L Digital Pressure Transducer

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT22
Minimum Order Quantity 1
Price USD40~60/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing Aluminum-alloy Pressure Port SS304 Or SS316L Optional
Diaphragm SS316L Sealing Gasket Viton
Cable Gland Plastic Housing Protection IP65
Indicator 4 Digit LCD
High Light

SS316L digital pressure transducer


4 digit LCD 20mA oem pressure transducer


4 digit LCD SS316L oem pressure transducer

Leave a Message
Product Description

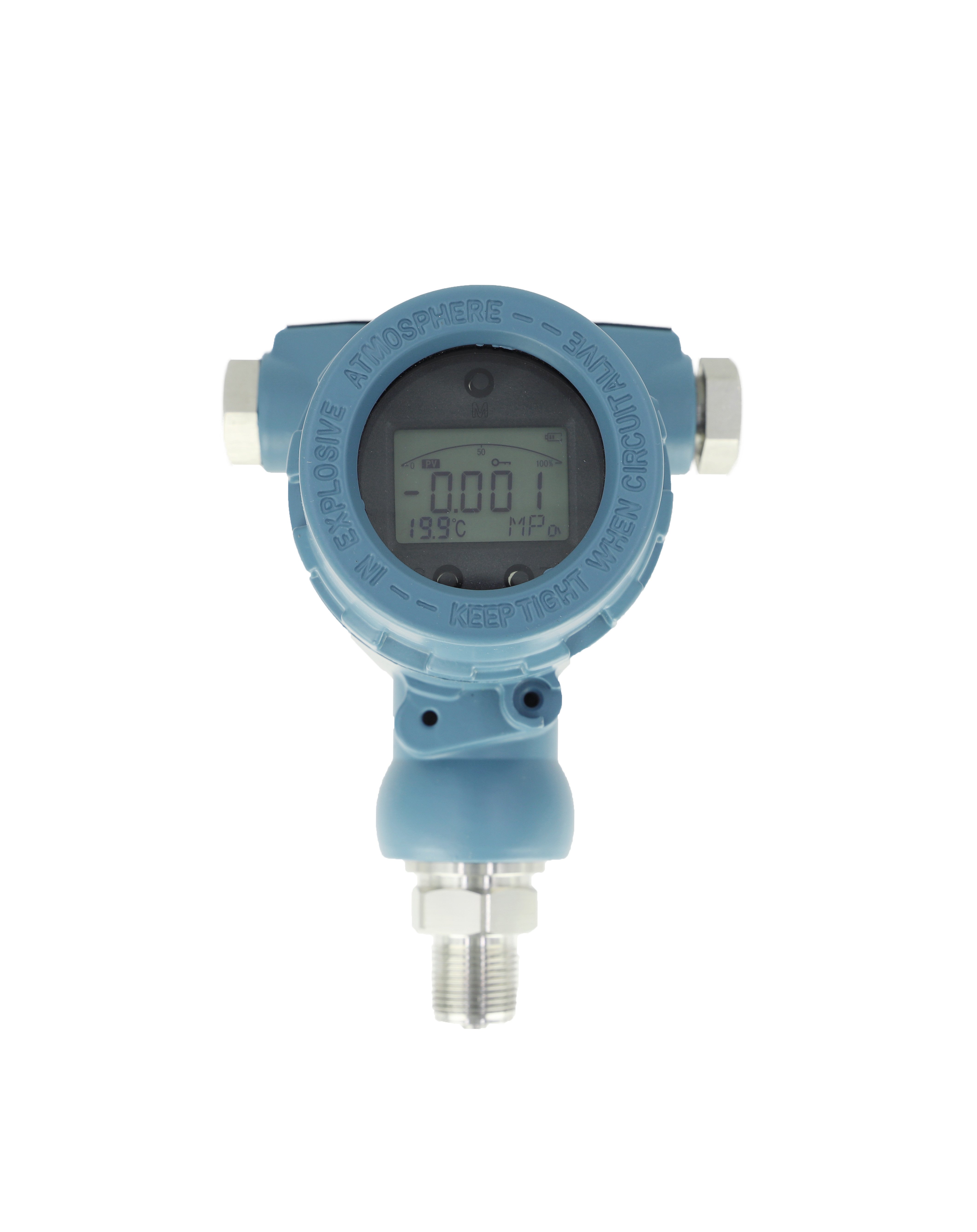

Waterproof 20mA SS316L Digital Pressure Transducer 0

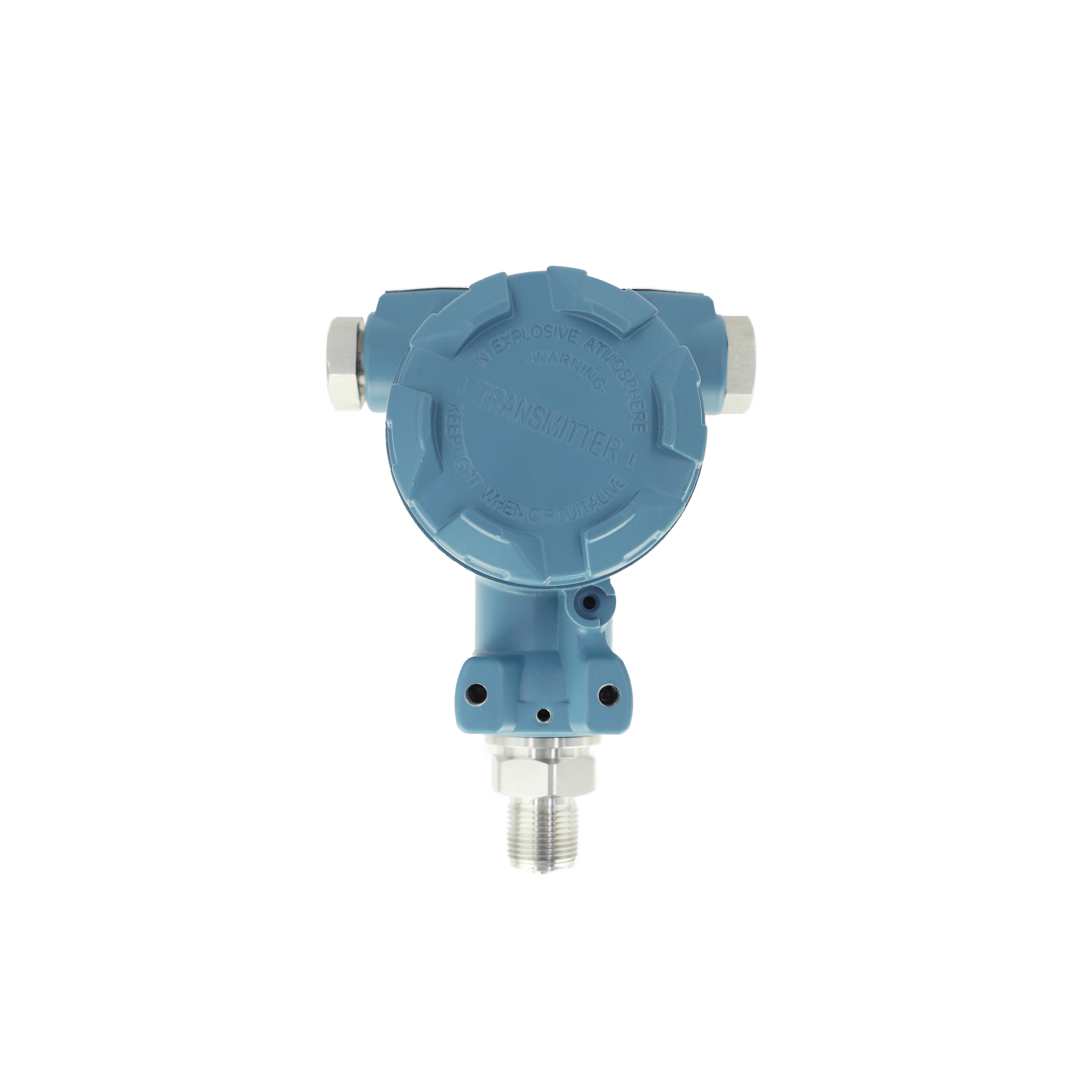

FeaturesWaterproof 20mA SS316L Digital Pressure Transducer 1

  • Aluminum-alloy electronic housing; protection IP65;
  • Reversed signal polarity; moment overcurrent,overvoltage, interference protection;
  • Optional signal output;
  • Gauge, absolute and sealed gauge optional
  • Offset and full scale adjustable
  • LCD indicator optional
  • Stainless steel material contacting with the media; flush diaphragm and tantalum diaphragm optional;


The product uses piezoresistive OEM pressure sensor as sensing element, which is accurate tested and laser trimmed to compensated zero and sensitivity in wider temperature range. The amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, the whole product’s performance is stable and reliable. The product is suitable for rugged environment which needs zero elevation and range adjustment, could be widely used for process control and pressure measure of petroleum, chemi-industry, metallurgy, power station, textile industry, building material, hydrology and environment control, etc.


Pressure range -0.1…0~0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/2 male thread (or as per customer’s requirement)
Accuracy ±0.2%FS ±0.5%FS optional
Indicator 4 digit LCD
Display range -1999~9999
Compensated temp. 0~50℃
Environment temp. -20~70℃
Power supply 18~36VDC
Output signal 4~20mADC(2 wires)/RS485
Housing protection IP65
Electrical connection Cable gland

Construction and Outline Dimension

Construction material:

  • Housing: Aluminum-alloy

  • Pressure port: SS304 or SS316L optional

  • Diaphragm: SS316L

  • Sealing gasket: Viton

  • Cable gland: Plastic

Outline dimension:                                                                      Electrical Connection

Waterproof 20mA SS316L Digital Pressure Transducer 2Waterproof 20mA SS316L Digital Pressure Transducer 3

Waterproof 20mA SS316L Digital Pressure Transducer 4
