UPS2 1000bar IP65 Digital 24VDC Water Pressure Switch

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPK21
Minimum Order Quantity 1piece
Packaging Details Carton
Delivery Time 7days
Supply Ability 5000 pieces each month
Product Details
Certification CE ROHS Pressure Ranges -1...0~0.1...1000bar
Service Life Of Switch >1million Times Pressure Medium Gas Or Liquid Compatible With Stainless Steel
Overload Pressure 150%FS Power Consumption <3W
High Light

24VDC Water Pressure Switch


IP65 Digital Water Pressure Switch


1000bar Water Pressure Switch

Leave a Message
Product Description

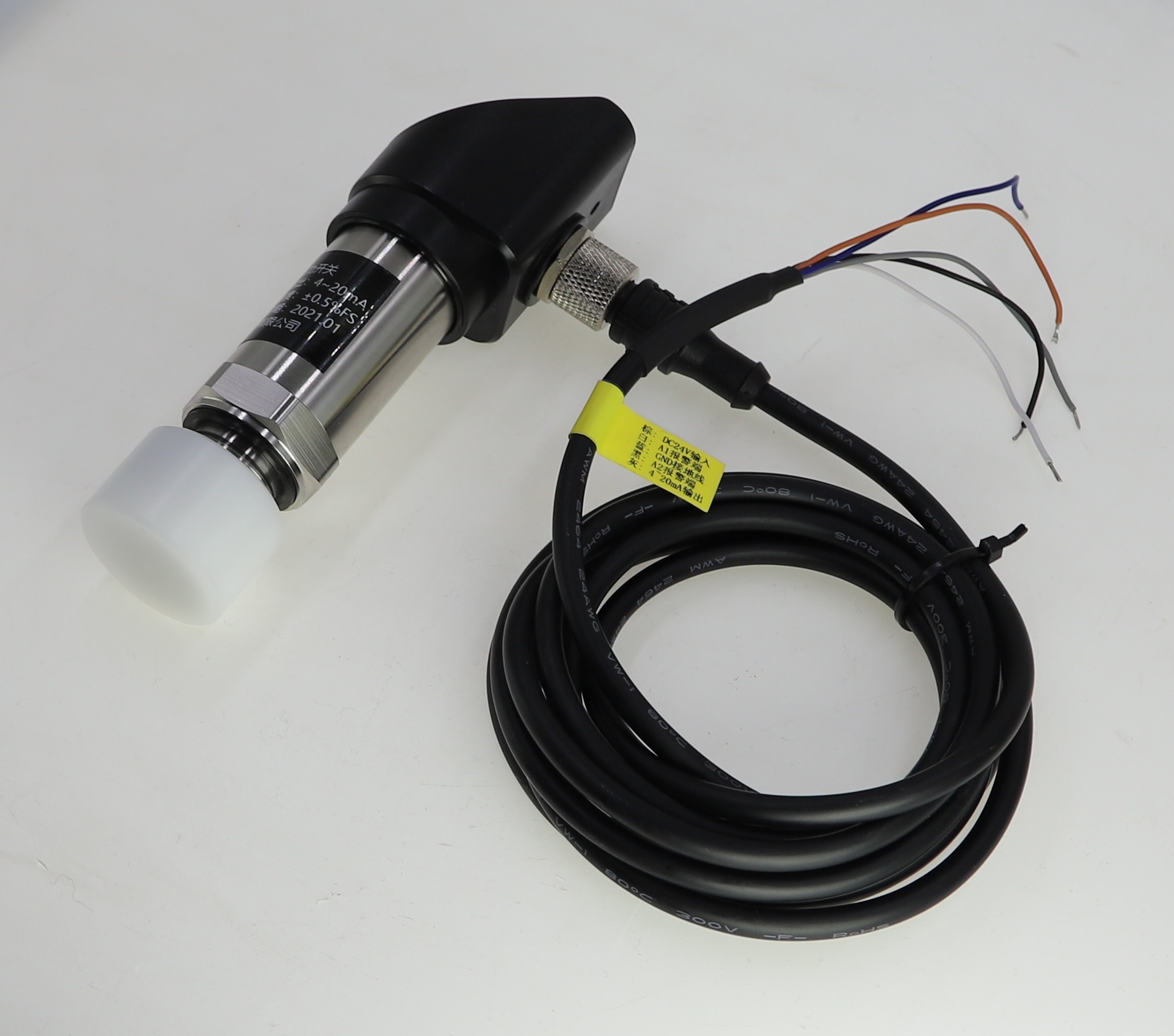

Digital 24VDC Water Pressure Switch



spk21 electronic pressure switch is pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control. This product is made with entire electronic structure, and built isolated-membrane pressure sensor in its front end. Its output signal is amplified through high accuracy & low temperature swift amplifer, then is input high accuracy A/D converter, and processed by microprocessor, the processed signal controls two-way switch, to realize the pressure measurement and control for systems.

The use of spk21 electronic pressure switch is very flexible. UPS2's operation and adjustment is simple and easy, meanwhile, this product also has good reliability and safety.




pressure medium gas or liquid compatible with stainless steel
pressure ranges
overload pressure 150%FS
output signal 4~20mA(option)
control accuracy 0.5%FS(standard)
display range
long-term stability <0.2%FS/year
display mode
4 digit LED
supply voltage 18~32V DC
ambient temperature range -30~+80 ℃
media temperature range -40~+100 ℃
storage temperature range -20~100 ℃
service life of switch >1million times
power consumption <3W
load capacity <24V, 1.2A
process connection G1/4 or others
electrical connection aviation connector or others
material of wetted part 1Cr18Ni9Ti
relative humidity 0~80%
protection IP65



UPS2 is widely used in water and electricity industry, petroleum industry, chemical industry, machinery industry etc, for the pressure measurement and control of many kinds of fluids.
