Stainless Steel Welding Seal FKM Digital Pressure Switch

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPK21
Minimum Order Quantity 1piece
Packaging Details Carton
Delivery Time 7days
Supply Ability 5000 pieces each month
Product Details
Sensor Seal Stainless Steel Welding Seal; FKM Media Temperature Sensor With Silicon Oil Filling -40-120℃
Working Humidity 0-95%RH@40℃ Stability ±0.2% URL/ 5 Years
Reference Accuracy ±0.1%URL Pressure Types Gauge Pressure
High Light

FKM Digital Pressure Switch


Welding Seal Digital Pressure Switch


25MPa Digital Pressure Switch

Leave a Message
Product Description


Product Description

Measuring range and limit
Nominal value Smallest calibratable span Lower range limit (LRL) Upper range limit (URL) Overload limit
6kPa 1kPa -6kPa 6kPa 25MPa
40kPa 2kPa -40kPa 40kPa 25MPa
250kPa 12.5kPa -100kPa 250kPa 25MPa
1MPa 50kPa -100kPa 1MPa 25MPa
3MPa 150kPa -0.1MPa 3MPa 25MPa
*10MPa 500kPa -0.1MPa 10MPa 25MPa
40MPa 5MPa -0.1MPa 40MPa 42MPa
*The norminal value of PS131-TSR-H ≤ 10MPa

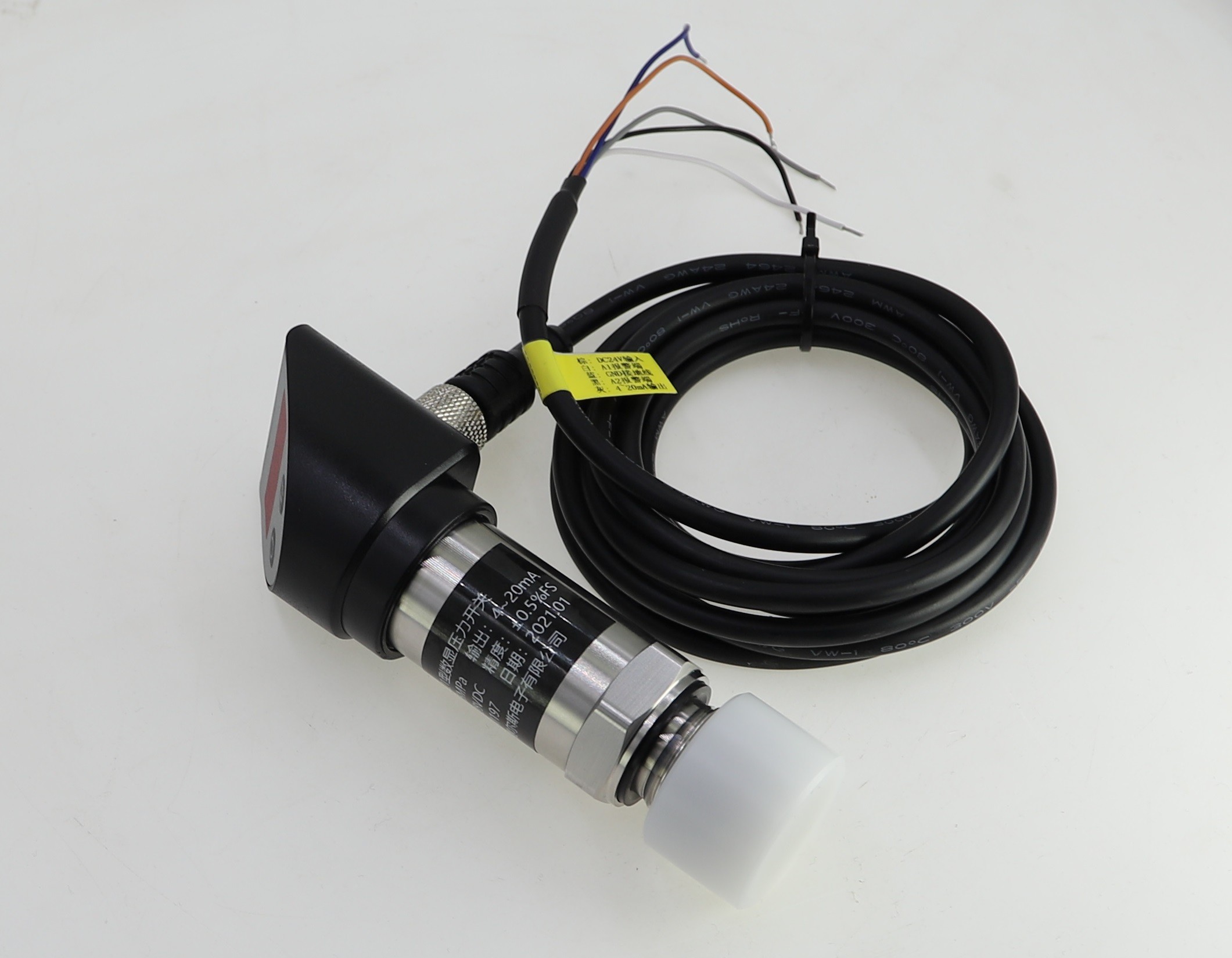

Stainless Steel Welding Seal FKM Digital Pressure Switch 0


Each of our products is subject to below testing process:

1.Automatic temperature compensation to ensure the temperature influence effects.

2.Automatic linear calibration to ensure linear precision.

3.Real-time online aging system to ensure the time drift performance.

4.Pressure cycling impact tests to ensure long-term stability.
