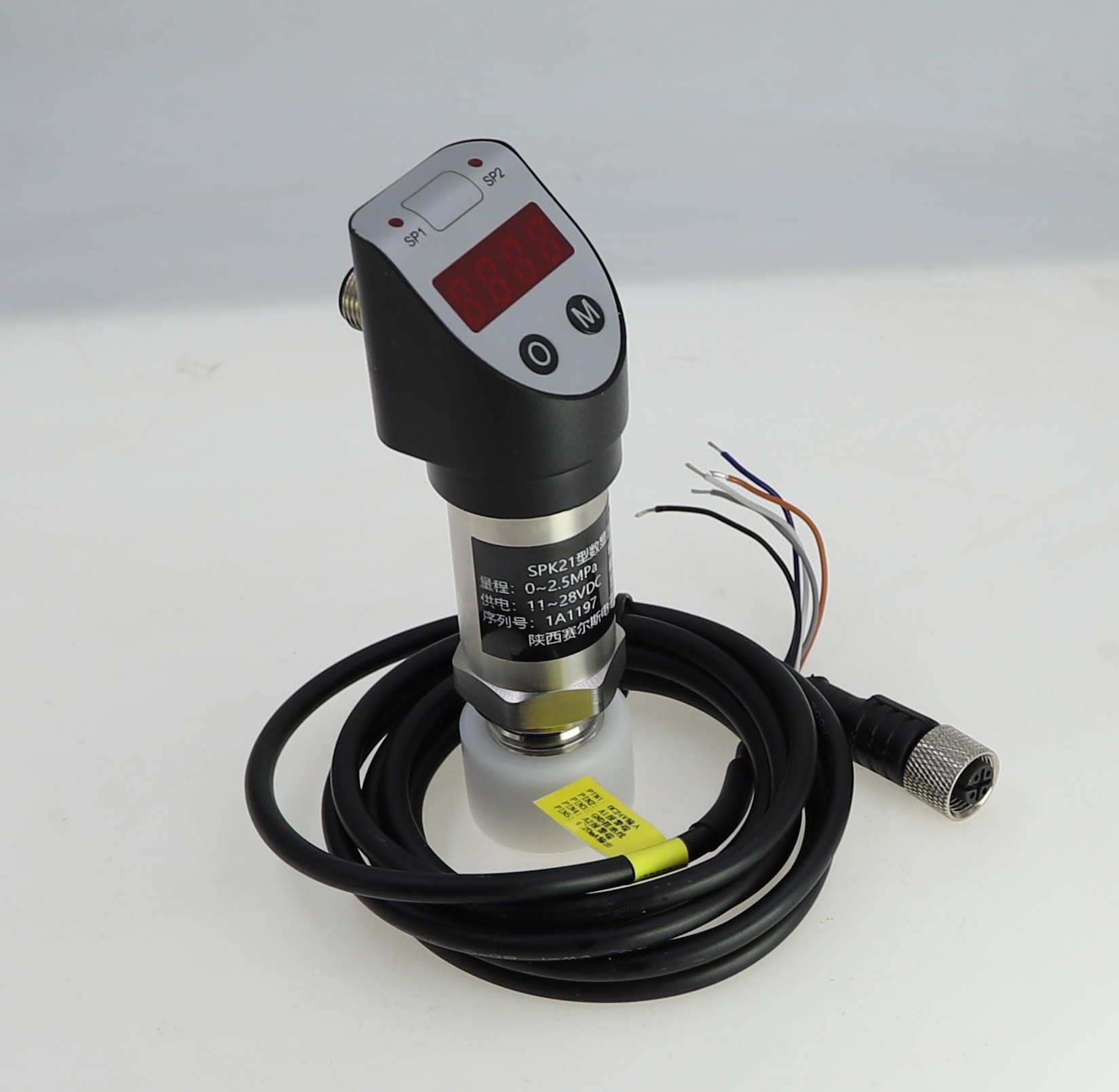

SPK21 Ss304 1.0A IP65 60MPa Digital Pressure Switch

  • SPK21 Ss304 1.0A IP65 60MPa Digital Pressure Switch
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPK21
Minimum Order Quantity 1piece
Packaging Details Carton
Delivery Time 7days
Supply Ability 5000 pieces each month
Product Details
Output Signal 2×PNP Pressure Range -100kPa~60MPa
Storge Temperature -40~80ºC Process Temperature -30~80ºC
Switching Type Normally Open / Closed (settable) Pressure Measurment Gauge Pressure, Absolute Pressure
High Light

60MPa Digital Pressure Switch

,

Ss304 Digital Pressure Switch

,

IP65 Digital Pressure Switch
Leave a Message
Product Description



Product Description


Applicable media: Liquid, Gas, Steam
Pressure measurment: Gauge Pressure, Absolute pressure
Pressure range: -100kPa~60MPa
Output Signal: 2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
                        2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy: 0.5% FS
Stability: ±0.3% FS/year
Switch current: 1.0A(Max.)
Switching type: Normally open / closed (settable)
Display: LED (Optional)
Housing material: 304 stainless steel
Mechanical connection: M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature: -40~80ºC
Process temperature: -30~80ºC
Protection class: IP65



SPK21 Ss304 1.0A IP65 60MPa Digital Pressure Switch 0

SPK21 Ss304 1.0A IP65 60MPa Digital Pressure Switch 1



FAQ

1:Could you provide me the shortest lead time?
We have materials in stock,we will put your order ahead of schedule if need in rush.



2:Could I visit your factory?
Of course,we warmly welcome you to visit our factory.



3:What’s the terms of payment?

TT in advance.
