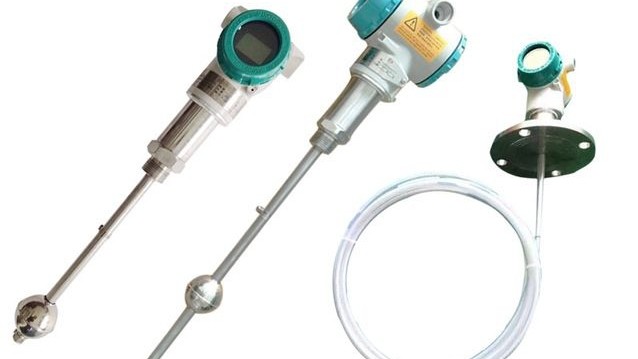

RS485 Soft Rod Anti Surge Magnetostrictive Level Meter

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SCZ21
Minimum Order Quantity 1
Packaging Details Carton
Delivery Time 7days
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Accuracy ±1mm Environment Temperature -25℃-70℃
Liquid Temperature -25℃-150℃ Power Supply DC24V
Temperature Measurement -25℃-70℃ Thermal Error ±0.5℃
High Light

Anti Surge Magnetostrictive Level Meter


RS485 Magnetostrictive Level Meter


25000mm Magnetostrictive Level Meter

Leave a Message
Product Description

SCZ21 Magnetostrictive Liquid Level Transmitter



• Safe and reliable, stable operationRS485 Soft Rod Anti Surge Magnetostrictive Level Meter 0
• Large measuring range and high precision
• Liquid level and boundary level measurement
• Anti-static, anti-surge, anti-interference and electromagnetic compatibility design

• The pressure-bearing pipe design of the high-pressure vessel does not require pressure relief for maintenance

• It can be used in dangerous places such as Viscous medium, corrosive, toxic, flammable and explosive



Magnetostrictive liquid level gauge / transmitter is a new generation of high precision liquid level gauge developed by magnetostrictive principle. It has the characteristics of high precision, high reliability, long life, high stability, exquisite structure, strong environmental adaptability and convenient installation. Compared with other principle liquid level meters, it has obvious advantages. Can be widely used in petroleum, chemical, pharmaceutical, food and other tanks, pools, tanks of liquid level monitoring, measurement and control.



Range: 0-6000mm (hard rod)/0-25000mm (soft rod)
Accuracy: ±1mm
Resolution: 0.1mm
Environment temperature: -25℃-70℃
Liquid temperature: -25℃-150℃
Process interface: M27*2
Power supply: DC24V
Output signal: 4-20mA, two-wire system/three-wire
Temperature measurement: -25℃-70℃
Thermal error: ±0.5℃
Explosion-proof: ExiaIIBT4
Communication: RS-485, RS-232, Modbus, Hart and other protocols, can be equipped with CAN bus or customized.



The magnetostrictive level transmitter has two installation forms to meet user needs, including: top-mounted and side-mounted.

RS485 Soft Rod Anti Surge Magnetostrictive Level Meter 1

RS485 Soft Rod Anti Surge Magnetostrictive Level Meter 2


RS485 Soft Rod Anti Surge Magnetostrictive Level Meter 3
