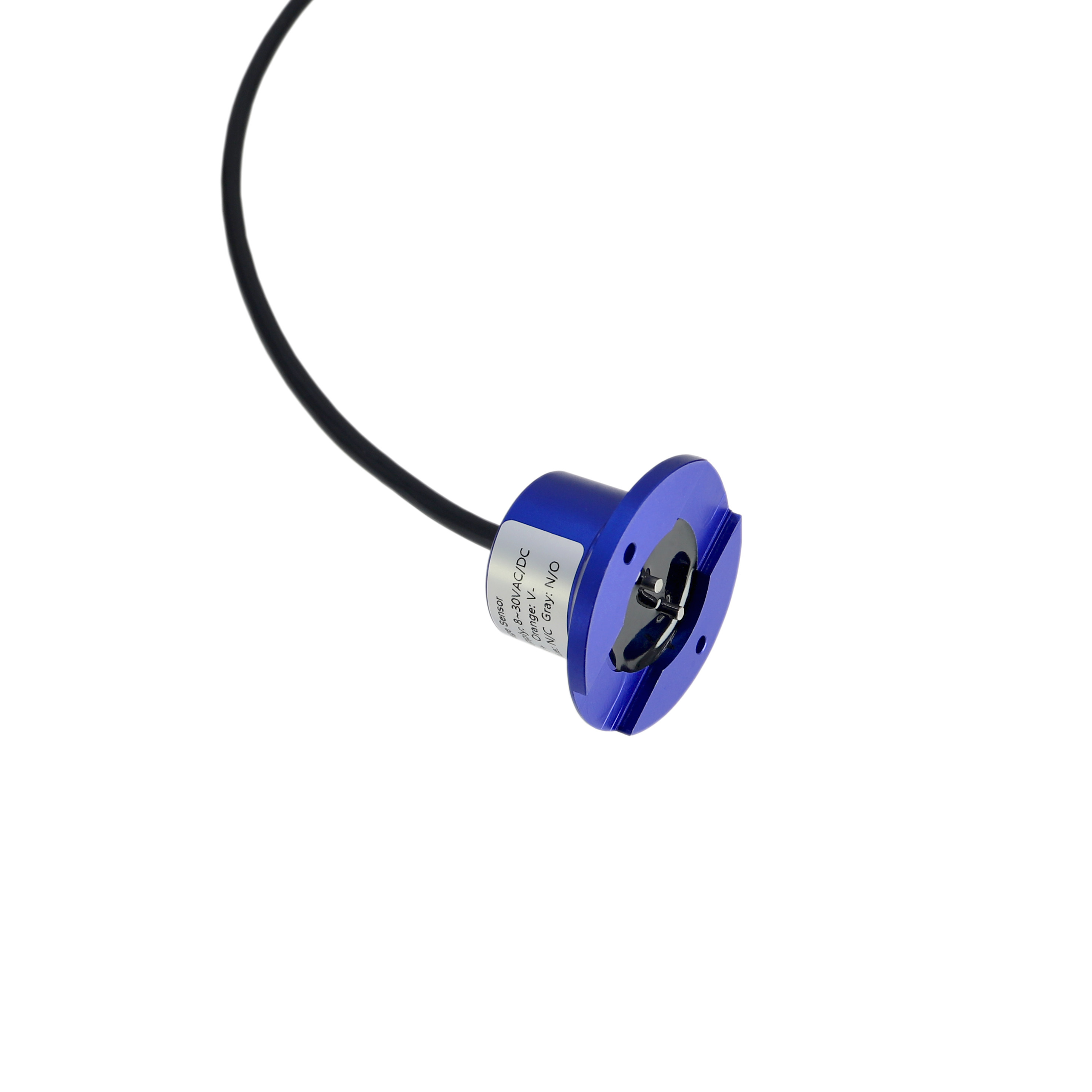

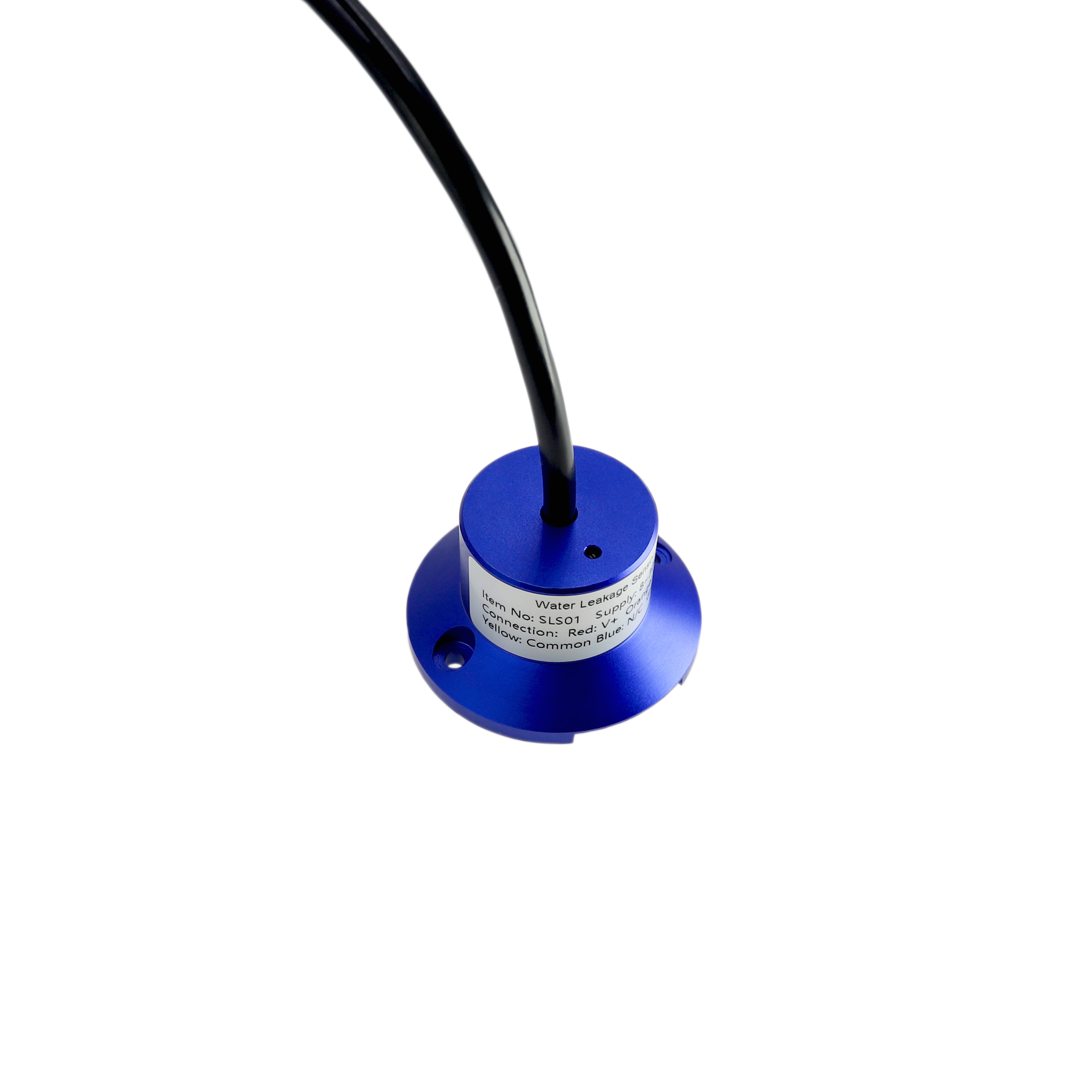

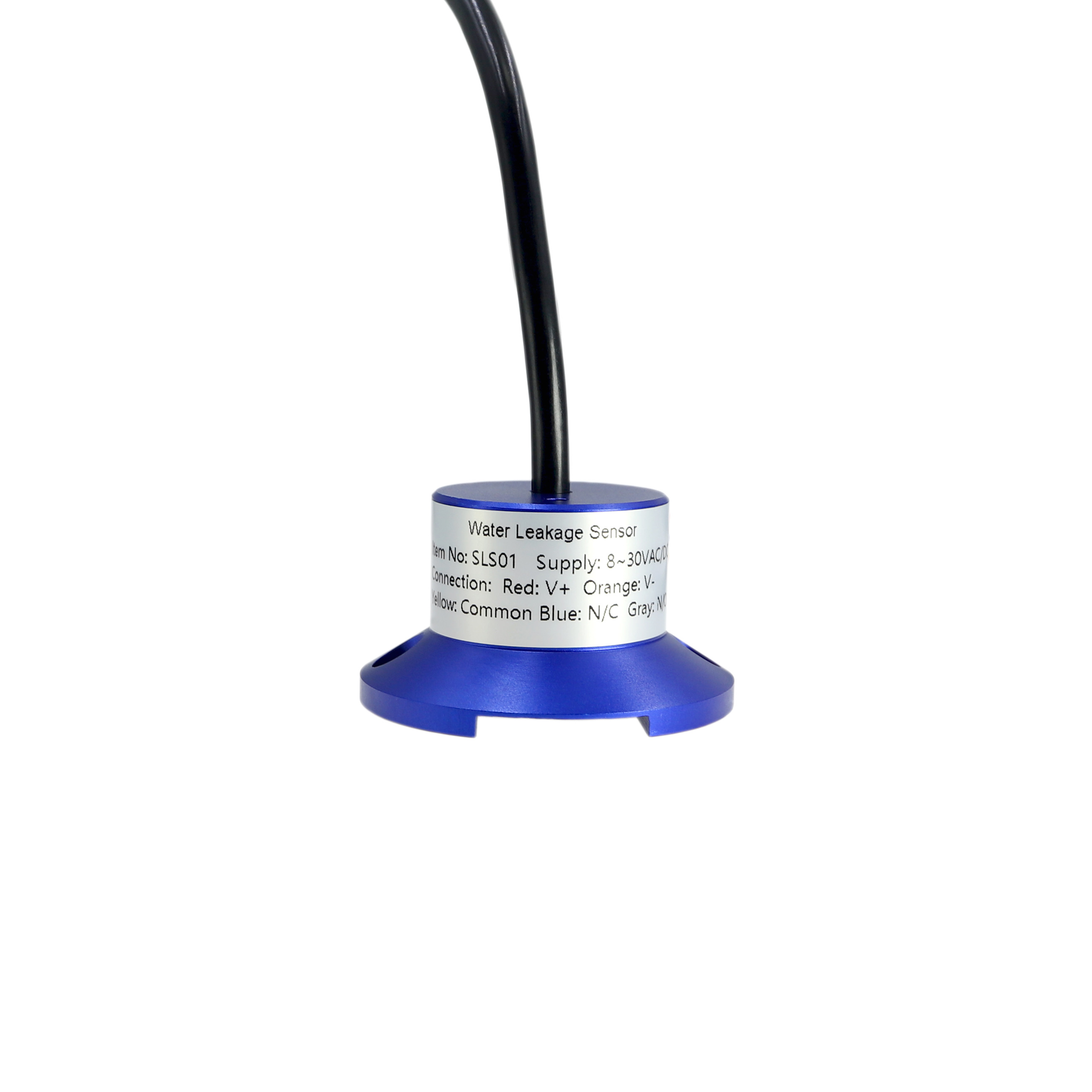

RoHS SS304 24VDC Water Leakage Detector
Housing | SS304 | Probe | Copper |
---|---|---|---|
Cable | PE Coated Cable | Response Time | <50mS |
Working Temperature | 0~60℃ | ||
High Light | SS304 Water Leakage Detector,24VDC Water Leakage Detector,24VDC water detection sensor |
SLS01 Water Leakage Sensor
Features
♦Reliable performance, easy application
♦Short protection and reverse polarity protection
♦High sensitivity for water leakage
♦Compact size
Introduction
SLS01 water leakage sensor is contact probe type sensor for water leakage detection, there are two probes at the bottom of sensor, it give relay contact output when water is in contact with these probes. It can be put on ground wherever it is required, or can be fixed on ground, wall or equipment.This sensor can be used for telecom vertical, hotel, power generator room, library, warehouse, kitchen, basement, underground parking center, construction site, swimming pool, wine storage house, switching house, environment monitoring system or any place where water leakage can cause huge damage. It can also be used as a water level switch for tank, swimming pool, river/lake, etc.
Specification
Output | Relay (NC/NO optional) |
Display | Green LED for power supply, Red LED for alarm |
Supply voltage | 8-24VDC/AC |
Current consumption | relay working: <30mA |
Quiescent | <10mA |
Relay parameter | 3A, 250VAC/30VDC |
Response time | <50mS |
Working Temperature | 0~60℃ |
Construction and Outline Dimension
Construction material:
• Housing: SS304
• Probe: copper
• Cable: PE coated cable
