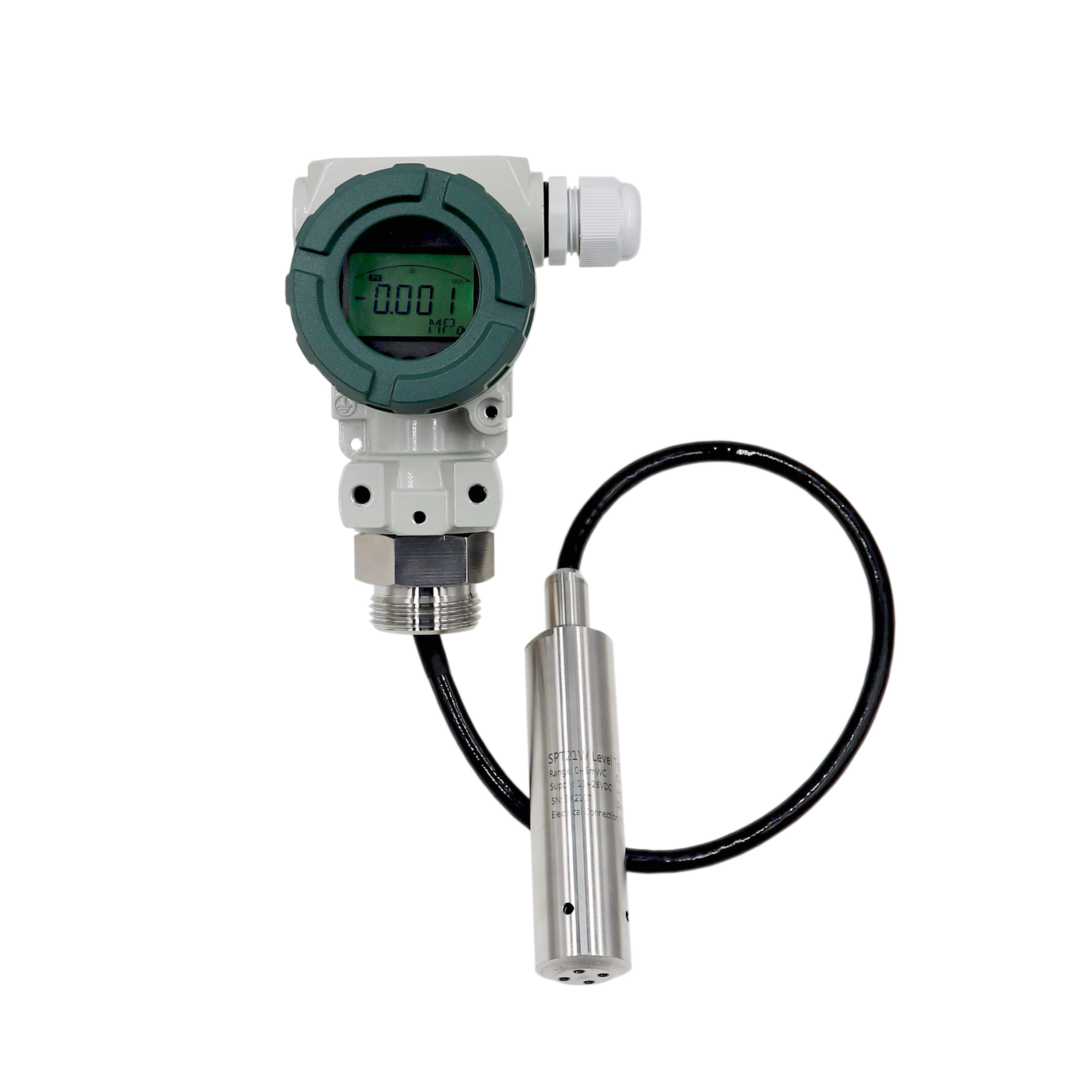

PTFE Contact Capacitive Fuel Liquid Level Transmitter 600kHZ 32Mpa

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT21W
Minimum Order Quantity 1
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Model Number SPT21W Brand Name Sier
Place Of Origin Shaanxi, China Supply Ability 5000 Set/Sets Per Month
Applicable Medium Water, Acid, Alkali Working Temperature -40~85°C
High Light

Capacitive Fuel Liquid Level Transmitter


PTFE Contact Liquid Level Transmitter


Liquid Level Transmitter 600kHZ

Leave a Message
Product Description




* Ground level test function available
* Max. operating temperature: 800°C
* Sensitivity and time delay adjustable





SPT21W is for liquids and solids can be used in mediums such as liquids, pastes, syrups, powders, granules, flakes and chips. It’s broad application and rugged build makes it a highly versatile across all industries. Capacitance switches rely on electrical capacitance theory (the ability of a medium to store electrical energy). When an electrical circuit has two separated conductive plates, the space between the plates acts as a capacitor and stores the electrical energy.




Measuring range
cable type: 2-10m
Applicable medium
water, acid, alkali, salt or any medium that is non-corrosive to polytetrafluoroethylene
Max 600kHZ
Working temperature
Shelf Temperature
1-32 Mpa
0.2%FS(typical) 0.5%FS(max)
0.25%FS(typical)/6 months
4 ~ 20mA (2 wire HART)
Power supply
15~36 VDC(Rated 24VDC)
Contact material
Stainless steel PTFE…
Cable Entry
M20 * 1.5
Exib II CT6
Weather Proof
IP68(The sensor parts),IP65(Junction Box)



PTFE Contact Capacitive Fuel Liquid Level Transmitter 600kHZ 32Mpa 0

PTFE Contact Capacitive Fuel Liquid Level Transmitter 600kHZ 32Mpa 1

PTFE Contact Capacitive Fuel Liquid Level Transmitter 600kHZ 32Mpa 2

Order Note:

  • Please pay attention that the medium should be compatible with the contacted parts; please inform the density of the media (except water);
  • Two kinds of cable are optional, polyurethane and polyethylene. The default is polyethylene. Polyurethane cable is more flexible and endurable; it can be selected due to the requirement;
  • When the product is used in thunder storm area, we suggest the user to use protection device to protect the product and power grounding reliably;
  • For special requirement, please feel free to contact us.
