Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal
Customized Support | OEM, ODM, OBM | Rsponse Time(10%~90%) | 10ms |
---|---|---|---|
Accuracy | 0.5%,0.25% | Relative Humidity | 0~100%RH |
Connection Method | Chuck Seal Or Specifified | OEM | Acceptable |
High Light | Piezoresistive Industrial Pressure Transmitter,Industrial Pressure Transmitter 3.3V,Chuck Seal Industrial Pressure Transmitter |

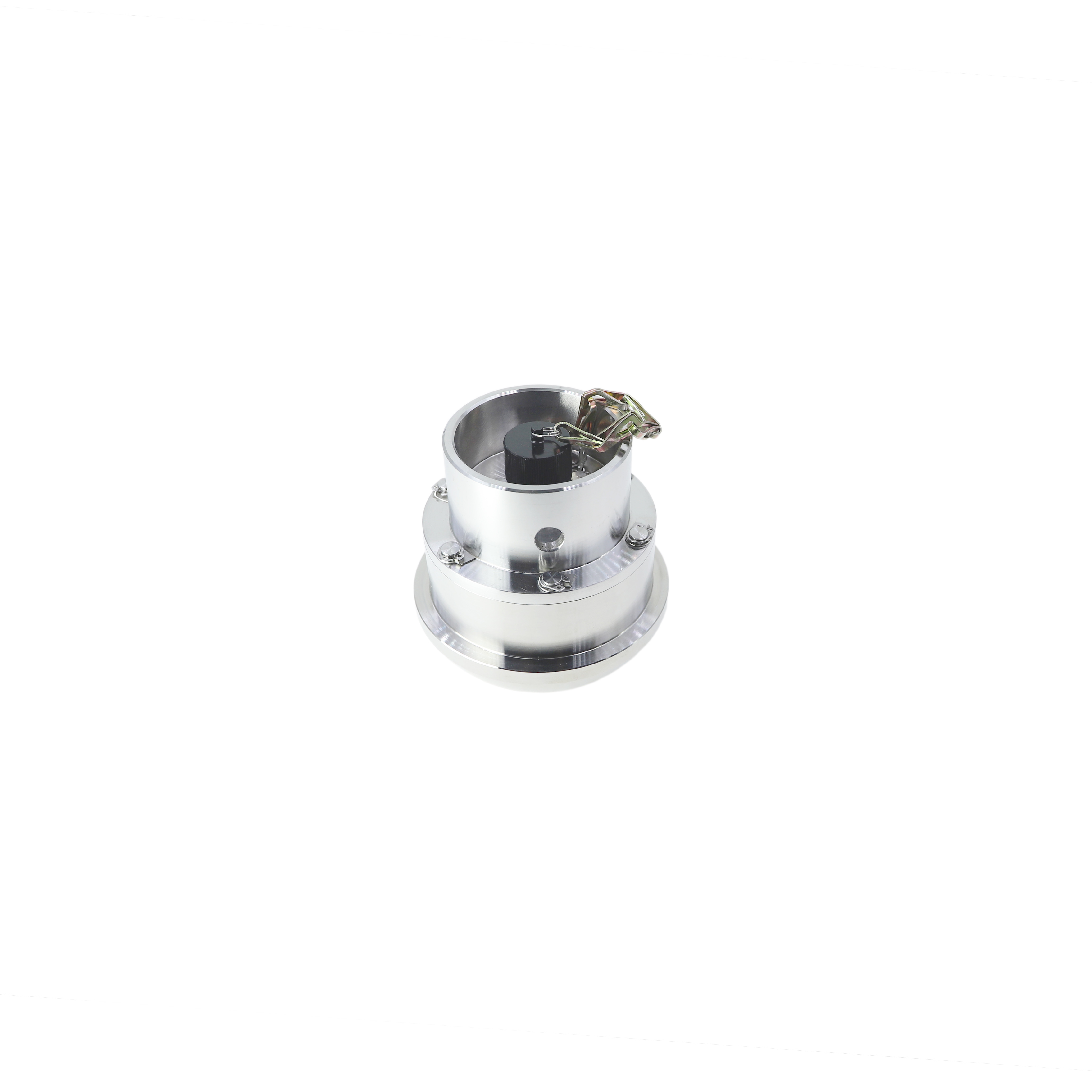

Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal
Feathers
This is a piezoresistive pressure sensor with 304 stainless steel corrosion-resistant rugged housing, built-in diffused silicon oil-filled core, 316L stainless steel isolation diaphragm and high-performance amplifier circuit. With 4-20mA, voltage, RS485 and other outputs. Current output, usually designed for conecting to the standard 4-20mA current loop widely used in industrial sensing and control.
Specification
Media to be measured
|
wet soil, crude oil, corrosive liquids and gases | ||
Pressure type | absolute pressure, sealed reference pressure, vent pressure | ||
Range | 0~35MPa, 70MPa, 105MPa, 140MPa, 210MPa, 315MPa | ||
Power supply | 9-30VDC | ||
Output signal | 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC, 3mV/V | ||
Nonlinear | 0.04% FS | ||
Repeatability | 0.04% FS | ||
Accuracy | 0.1% FS, 0.2% FS, 0.5% FS | ||
Long-term stability | 0.1% FS / year (typical) | ||
Working temperature | -43~85°C/125°C | ||
Compensation temperature | -25 ~ 70 ° C / 100 ° C | ||
Response time | ≤ 1 millisecond (typical) | ||
Insulation resistance | ≥500MΩ/100V | ||
Overload pressure | 200% FS (2 times full scale, special: 5 times full scale) | ||
Destruction pressure | 500% FS (5 times full scale, special 10 times full scale) | ||
Vibration resistance | about 10g/0~2000HZ | ||
Vibration resistance | about 10g/0~2000HZ | ||
Impact resistance | about 50g/1ms | ||
Connection method | Chuck seal or specifified | ||
Wetted material |
17-4PH stainless steel
|
||
Relative humidity | 0~100%RH | ||
Protection rating | IP67 | ||
Electrical output lead | aerospace connector, Amphenol |
Electrical connection
Why choose us
- 24hour aging
- Tempersture test
- Weld gold wire
- Laser trimming
- Weld shell base
Application
* Air filter
* Liquild tanks
* Hydraulic control system
* Diesel engine
Package&Shpping
Standard export package: each unit has individual box and all boxes are packed in standard packages
Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available
