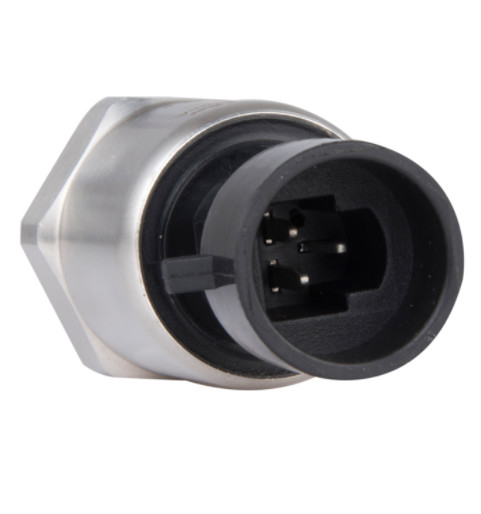

OEM Compact Pressure Transducer Transmitter Ceramic Sensor Packard
Output | 4-20mA, 0~5V, 0~10 V, 0.5~4.5 V Output Signal | Material | 304 Stainless Steel |
---|---|---|---|
Warranty | 1 Year, And Free Repair For Quality | Brand Name | Sier |
Power Supply | 12-36 V DC | Electronic Connection | Packard 3 Pin Connector |
High Light | 304 Stainless Steel Pressure Transducer Transmitter,Packard connection Pressure Transducer Transmitter,OEM Pressure Transducer Transmitter |
OEM Compact Low-Price Pressure Transducer Transmitter Ceramic Sensor Packard
Features
- Packard connection, practical and convenient
- Imported flush ceramic pressure core, stable and durable
- Imported circuit board, stable for long time
- Design for make precise measurement
- One-stop service
Performance
Different output signals: 4~20mA, 0~10V, 0~5V, 0.5~4.5V
Wide applications: Refrigeration system, HAVC system, Air compressors
Multiple pressure port to select: 1/4NPT, female or by customized
Parameters
Response time: ≤1ms (Up to 90%FS)
Overpressure: 150%FS(≤60MPa), 120%FS(60~100 MPa)
Service life: ≥10×106 pressure cycles
Ambient temp.: -20℃~85℃
Medium temp.: -30℃~105℃
Storage temp.: -40℃~125℃
EMC-interference: IEC 61000-6-3
EMC-immunity: IEC 61000-6-2
Insulation resistance: ≥100MΩ/2500VDC(200MΩ/500VDC)
Vibration resistance: Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6
Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64
Shock resistance: Shock: 200g/1ms; IEC 60068-2-27
Free fall: 1m; IEC 60068-2-32
Protection: IP65
Medium compatibility: All media compatible with stainless steel 304
