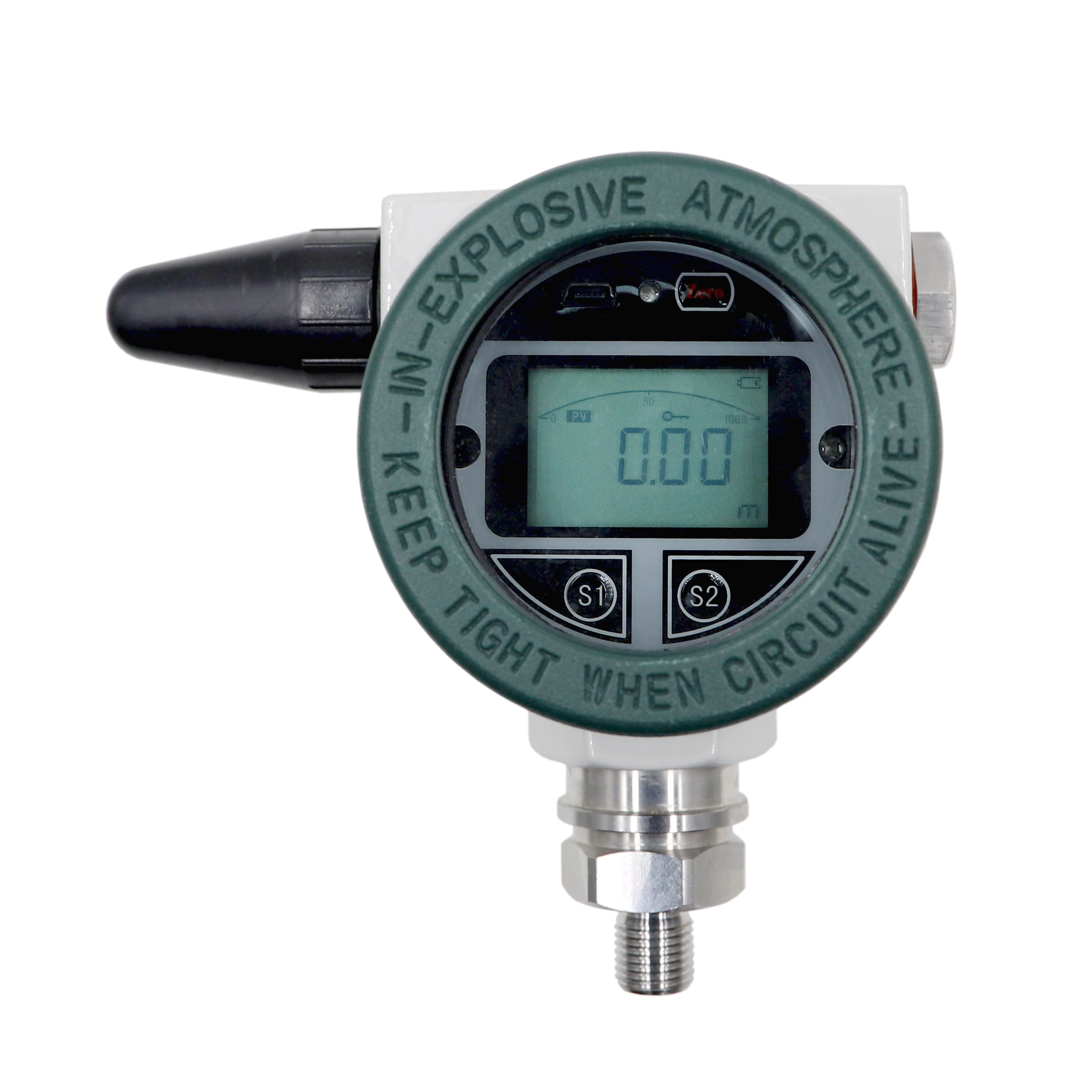

IP68 GPRS 4g Wireless Pressure Transmitter Explosion Proof

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT22Z
Minimum Order Quantity 1 piece
Packaging Details Carton
Delivery Time 7days
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Place Of Origin China Pressure Range 0-2M,5M,10M...500M H2O
Working Temp. 40℃~85℃ Customized Support OEM, ODM
Accuracy 0.5%F.S Electronic Connection Sensor Water Proof IP68,Electronic Indicator IP65
High Light

GPRS 4g Wireless Pressure Transmitter


IP68 Wireless Pressure Transmitter


330mA Wireless Pressure Transmitter

Leave a Message
Product Description


* Smart battery reminder: Check remaining battery freely

* Five digit display: 4 decimal places retained

* Time and date display: More convenient to know time


Product Name
Wireless pressure sensor
Pressure Range
0 ~ 100MPA optional
Configuration method
Local USB / remote configuration
Working power
3.6V,19Ah (Can be replaced by yourself)
Battery Life
5 years (send data every hour)
Power consumption
Normal work 70mA sleep is less than 0.1mA, data sending and receiving 330mA
2.4 inch large size LCD screen
Network format
External waterproof antenna
SIM Card
Built-in SIM card
Sampling interval
1 time / min
Wake-up mode
Buttons, timing, USB
Upload information
Pressure, temperature, signal, battery power
Working temperature
-30℃~+70℃(Medium does not crystallize)
Temperature influence
Waterproof level
Normal IP66/Explosion-proof type IP68
Normal 0.55kg/ Explosion-proof type 1.5kg
Vertical and horizontal installation

IP68 GPRS 4g Wireless Pressure Transmitter Explosion Proof 0

IP68 GPRS 4g Wireless Pressure Transmitter Explosion Proof 1

IP68 GPRS 4g Wireless Pressure Transmitter Explosion Proof 2

Application Cases

IP68 GPRS 4g Wireless Pressure Transmitter Explosion Proof 3

Connect all field devices to the same platform for unified coordination and processing, and provide customers with multi-user authority and multi-terminal (Web, computer client, mobile phone APP) management, so that enterprise personnel can always get the data and progress of industrial sites.
