IP65 Infrared M18 Non Contact Temperature Sensor

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number ST03
Minimum Order Quantity 1
Price USD100~150/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Construction Stainless Steel Weight With 1.5m Cable 180g
Environmental Rating IP65 Ambient Temperature Range 0°C To 60°C
Thread M18x1 Relative Humidity 95% Maximum Non-condensing
High Light

M18 Non Contact Temperature Sensor


anti aging infrared temperature sensor


M18 pressure temperature sensor

Leave a Message
Product Description

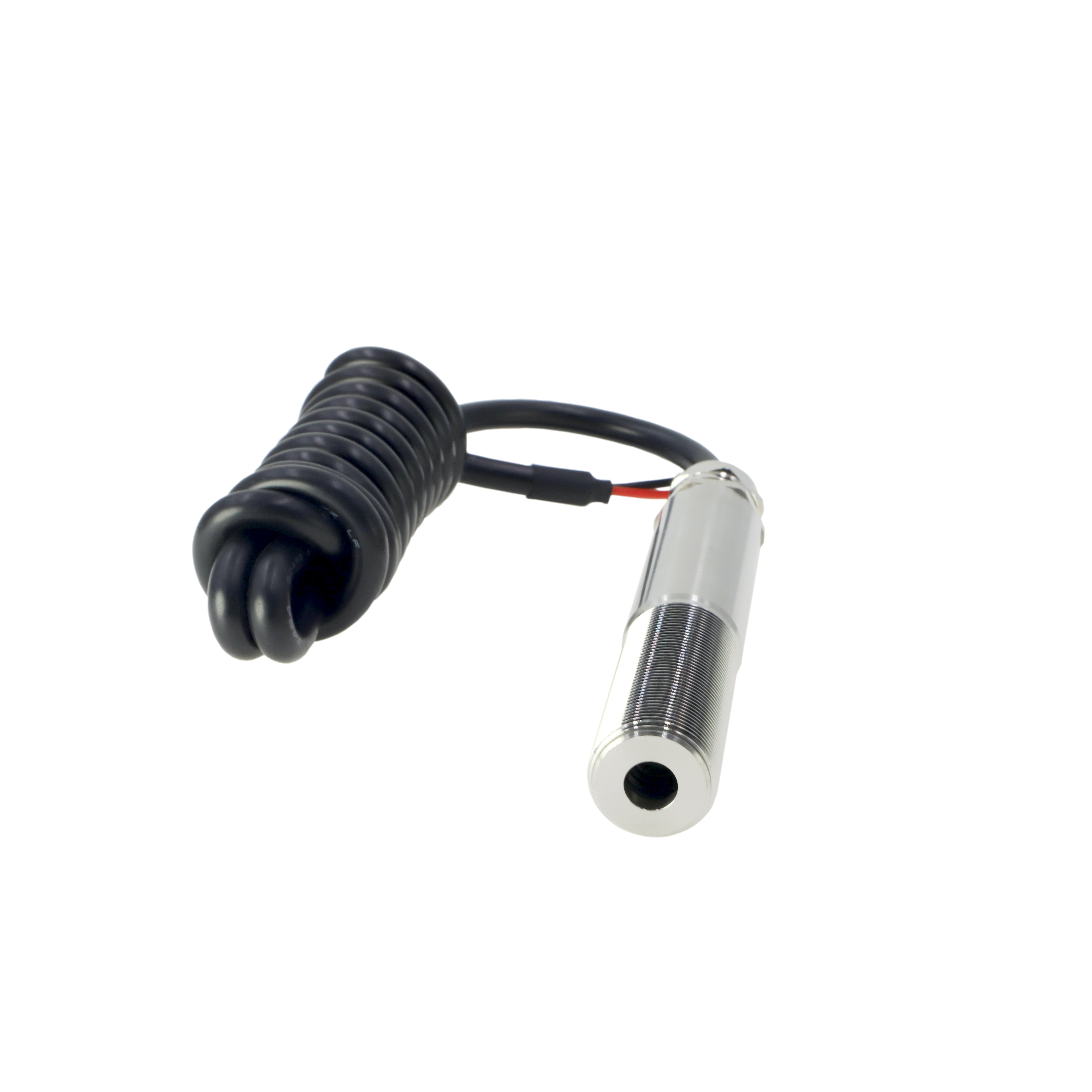

IP65 Infrared M18 Non Contact Temperature Sensor 0
Non-contactInfraredTemperature Sensor
ST03 non-contact infrared sensors measure temperature from 0°C to 1200°C and provide a linear 4 to 20mA output. This output signal is compatible with almost any indicator, controller, recorder, data logger ect., without the need for special interfacing or signal conditioning. They are suitable for most materials such as food, paper, textiles, plastics, leather, tobacco, pharmaceuticals, chemicals, rubber, coal and asphalt; but mot materials with low emissivity, for example polished metals. Two-wire CS20L4sensorstransmit thetarget temperatureasa 4-20mA output and offer a simple solution for most applications.
IP65 Infrared M18 Non Contact Temperature Sensor 1
Part number ST03
Measuring range 0~100/200/250....../1200°C
D:S 20:1
Accuracy ±1.5% or ±1.5°C(whichever is greater)
Emissivity 0.95(fixed)
Response time 240 ms (90% response)
Spectral response 8 to 14µm
Output 4~20 mA
Supply Voltage 5~30V DC
Construction Stainless Steel
Dimensions 19mm diameter x 113mm length
Thread (sensing head) M18x1
Cable length 1.5m as standard
Weight with 1.5m cable 180g
Environmental Rating IP65
Ambient Temperature Range 0°C to 60°C
Relative Humidity 95% maximum non-condensing
IP65 Infrared M18 Non Contact Temperature Sensor 2

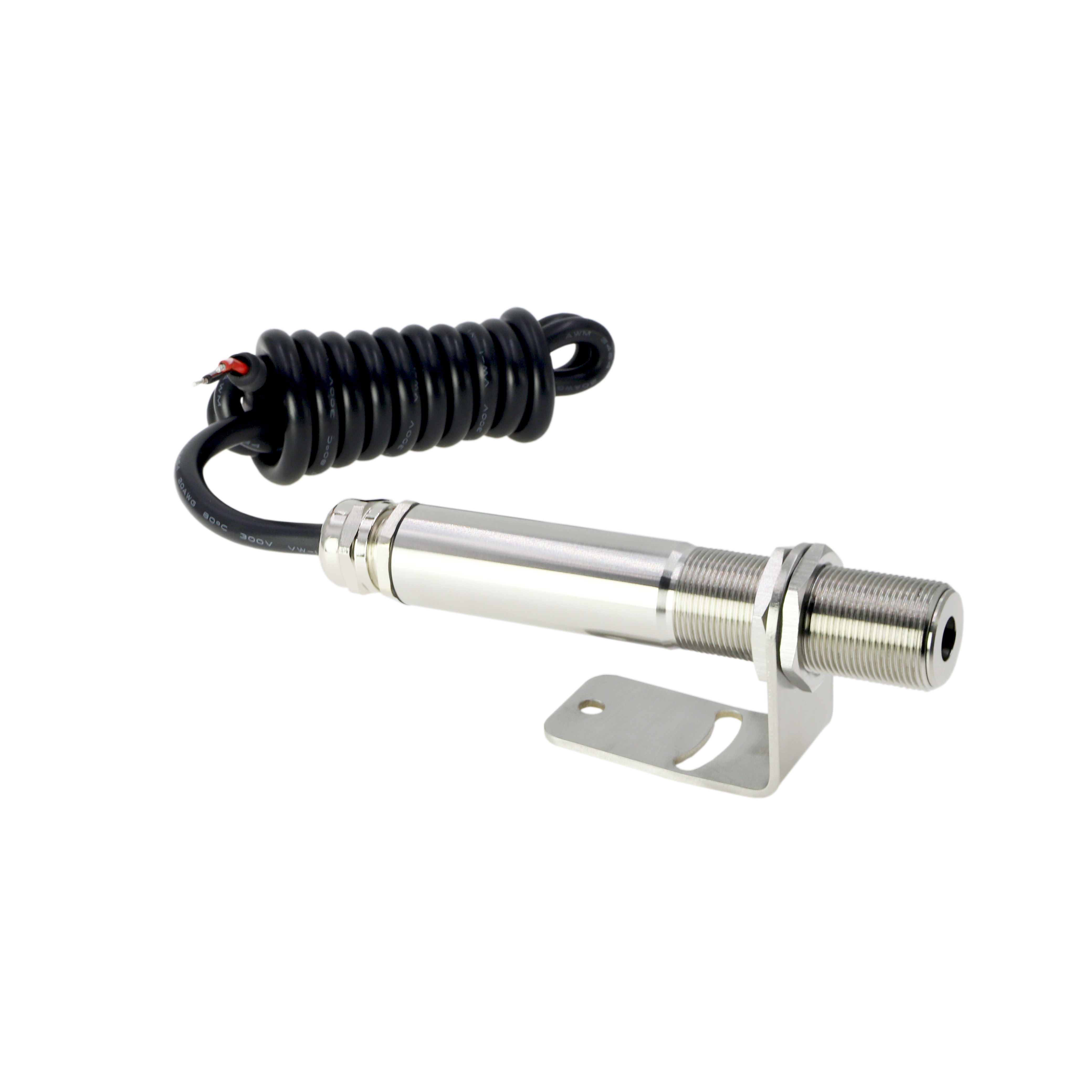

A range of accessories to suit different applications and industrial environments is available. These may be ordered at any time. The accessories consist of the following parts. Fixed mounting bracket Adjustable mounting bracket Air purge collar Laser sighting tool
The optical chart below indicates the nominal target spot diameter at any given distance from the sensing head and assumes 90% energy.
IP65 Infrared M18 Non Contact Temperature Sensor 3
The installation process consists of the following stages: Preparation Mechanical installation Electrical installation Please read the following sections thoroughly before proceeding with the installation.
Ensure that the sensor is positioned so that it is focused on the target only.
IP65 Infrared M18 Non Contact Temperature Sensor 4
Distance and spot size
The size of the area (spot size) to be measured determines the distance between the sensor and the target. The spot size must not be larger than the target. The sensor should be mounted so that the measured spot size is smaller than the target.
Ambient temperature
The sensor is designed to operate in ambient temperatures from 0°C to 60°C. For ambient temperatures above 60°C, an air/water-cooled housing will be required. Avoid thermal shock. Allow 20 minutes for the unit to adjust to large changes in ambient temperature.
Atmospheric quality
Smoke,fumes or dust can contaminate the lens and cause errors in temperature measurement. In these types of environment the air purge collar should be used to help keep the lens clean.
Electrical interference
To minimize electromagnetic interference or ‘noise’, the sensor should be mounted away from motors, generators and such like.
Checking the distance between the sensor and the indicating/controlling device. If necessary, the CS20L4 sensor can be ordered with a longer cable attached.
Models with thermocouple output
When extending the cable, ensure thermocouple extension cable and connectors are used.
Power supply
Be sure to use a 5~30V DC (>25mA) power supply.
All sensors come with a 1.5m cable and a mounting nut. The sensor can be mounted on brackets or cut outs of your own design, or you can use the fixed and adjustable mounting bracket accessories.
IP65 Infrared M18 Non Contact Temperature Sensor 5
Once the sensor is in position and the appropriate power, air, water, and cable connections are secure, the system is ready for continuous operation by completing the following simple steps:
1. Turn on the power supply
2. Turn on the meter, chart recorder or controller
3. Read/monitor the temperature.
Be aware of the following when using the sensor:
1. If the sensor is exposed to significant changes in ambient temperature (hot to cold, or cold to hot), allow 20 minutes for the temperature to stabilize before taking or recording measurements.
2. Do not operate the sensor near large electromagnetic fields (e.g. around arc welders or induction heaters). Electromagnetic interference can cause measurement errors.
3. Wiresmust be connected only the appropriate terminals.
4. Do not damage the cable, as this could provide a path for moisture and vapour into the sensor.
5. Do not open the sensor housing. This will damage the sensor and invalidate the warranty.
