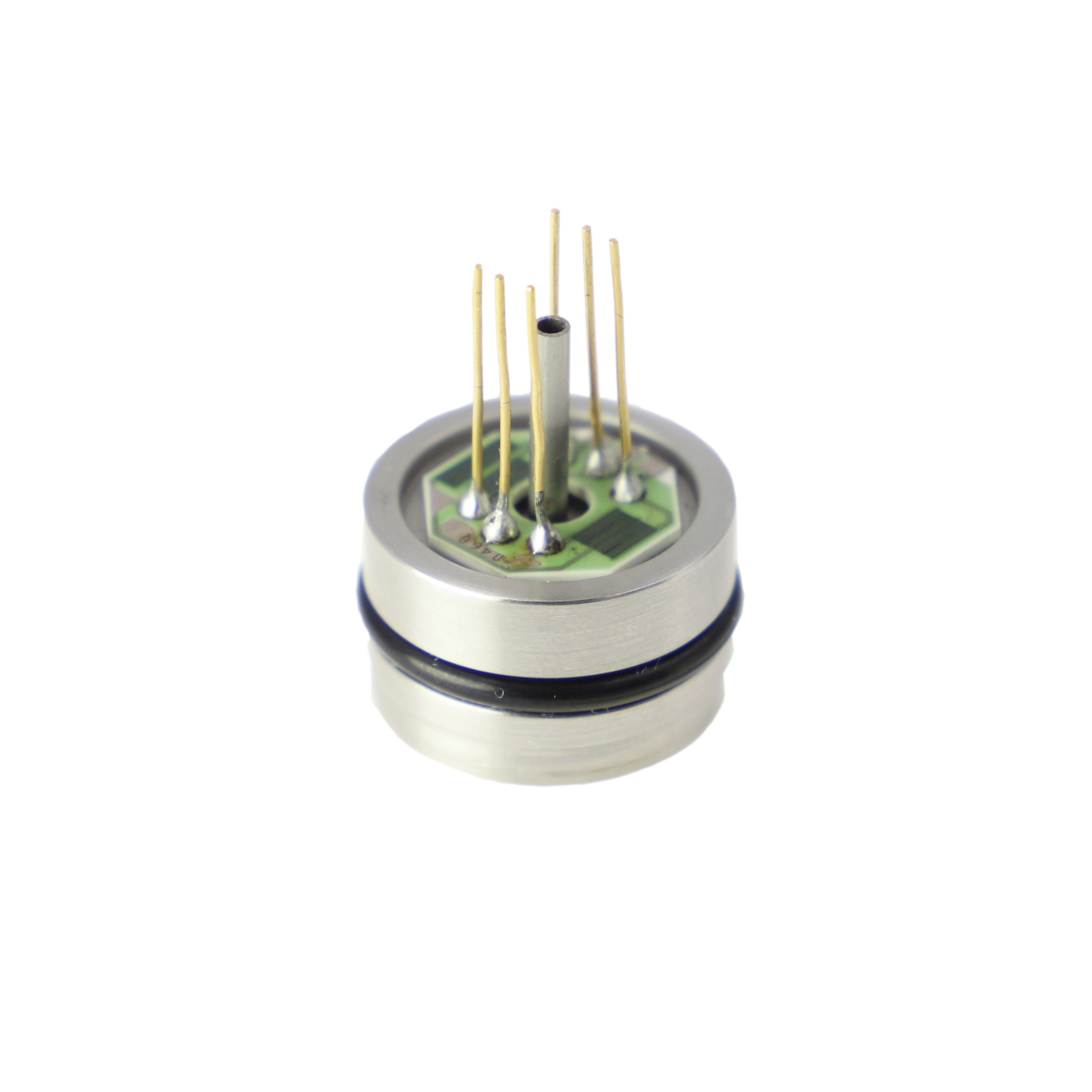

High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor

  • High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor
  • High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor
  • High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT81
Minimum Order Quantity 1
Price USD15~35/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Diaphragm Stainless Steel 316L Housing Stainless Steel 316L
Pin Kovar Or Silicon Rubber Flexible Wires O-ring NBR
Net Weight ~16g Overpressure 2 Times FS
High Light

RoHS 3.5MPa oil fuel pressure sensor

,

RoHS 1.5mA hydraulic oil pressure sensor

,

3.5MPa precision digital pressure gauge
Leave a Message
Product Description



SPT81 High Stable Piezoresistive OEM Pressure Sensor

FeaturesHigh Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor 0
·Pressure range -100kPa～0kPa～10kPa…100MPa
·Gauge, absolute, sealed gauge
·Constant current power supply
·Isolated construction, enable to measure various media
·Φ19mm standard OEM pressure sensor
·Full stainless steel 316L

Application
·Industrial process control        ·Level measurement          ·Gas, liquid pressure measurement
·Pressure checking meter        ·Pressure calibrator            ·Liquid pressure system and switch
·Cooling equipment and air conditioning system                 ·Aviation and navigation inspection

Introduction
SPT81 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Ф19mm. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.
SPT81 pressure sensor is inspected and screened on automatic production line, testing and checking time after time strictly. It is widely used for various pressure measurement fields.

Electric Specification

Power supply≤1.5mADC
Electric connectionKovar pin or 100mm silicon rubber flexible wires
Common mode voltage output50% input (typ.)
Input impedance3kΩ～6kΩ
Output impedance3kΩ～6kΩ
Response (10%～90%)<1ms
Insulation resistor100MΩ, 100VDC
Overpressure2 times FS


Construction

Diaphragmstainless steel 316L
Housingstainless steel 316L
PinKovar or silicon rubber flexible wires
O-ringNBR
Net weight~16g


Environment Condition

Position effectdeviate 90° from any orientation, zero change ≤±0.05%FS
Shockno change at 10gRMS,(20～2000)Hz
Impact100g,11ms
Media compatibilitythe gas or liquid which is compatible with stainless steel and NBR


Basic Condition

Media temperature(25±1)℃
Environment temperature(25±1)℃
Humidity(50%±10%)RH
Local air pressure(86～106)kPa


Basic Specification

Specification*Min.Typ.Max.Units
Linearity ±0.15±0.3%FS,BFSL
Repeatability ±0.05±0.075%FS
Hysteresis ±0.05±0.075%FS
Zero output  ±2mVDC
FS output45100130mVDC
Zero thermal error ±0.75±1.0%FS
Span thermal error ±0.75±1.0%FS
Compensated temp. range0～70℃
0～50(10kPa,20 kPa)
Working temp. range-40～125℃
Storage temp. range-40～125℃
Stability error  ±0.2%FS/year
*testing at basic condition

High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor 1

High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor 2

Order Guide

High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor 3
High Stability 1.5mA 3.5MPa Oil Fuel Pressure Sensor 4
