Gas Station Magnetostrictive Liquid Level Transmitter

SCZ21 Magnetostrictive Liquid Level Transmitter

Features

• Smart Proofreading Sensitivity
  Hardly affected by corrosion, foam;

  hardly affected by atmospheric water vapor, temperature, and pressure changes

• Long Life
  Maintenance-free: no moving parts, no need to maintain after installation.
  Low driving power, low running cost and long service life

• Wide range of applications
 High adaptation: no influence on electrical parameter and density of medium, suitable for various conditions.


Specification

Range: 0-6000mm (hard rod)/0-25000mm (soft rod)
Accuracy: ±1mm
Resolution: 0.1mm
Environment temperature: -25℃-70℃
Liquid temperature: -25℃-150℃
Process interface: M27*2
Power supply: DC24V
Output signal: 4-20mA, two-wire system/three-wire
Temperature measurement: -25℃-70℃
Thermal error: ±0.5℃
Explosion-proof: ExiaIIBT4
Communication: RS-485, RS-232, Modbus, Hart and other protocols, can be equipped with CAN bus or customized.

Installation

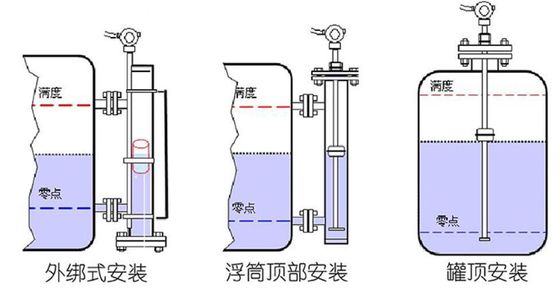

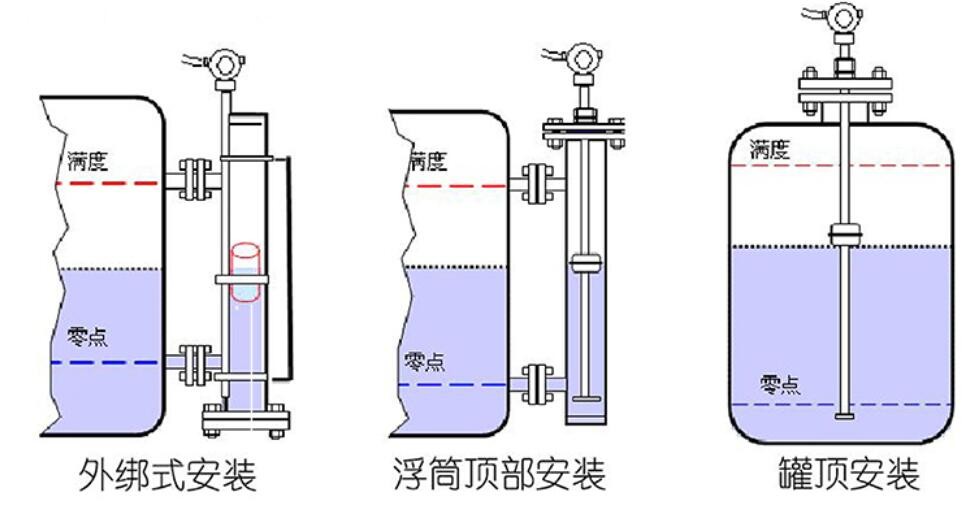

The magnetostrictive level transmitter has two installation forms to meet user needs, including: top-mounted and side-mounted.

Mounted Magnetostrictive liquid level meter Magnetostrictive level transmitter

Applications Magnetostrictive liquid level meter Magnetostrictive level transmitter
