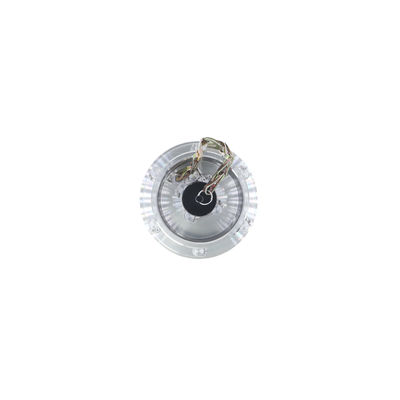

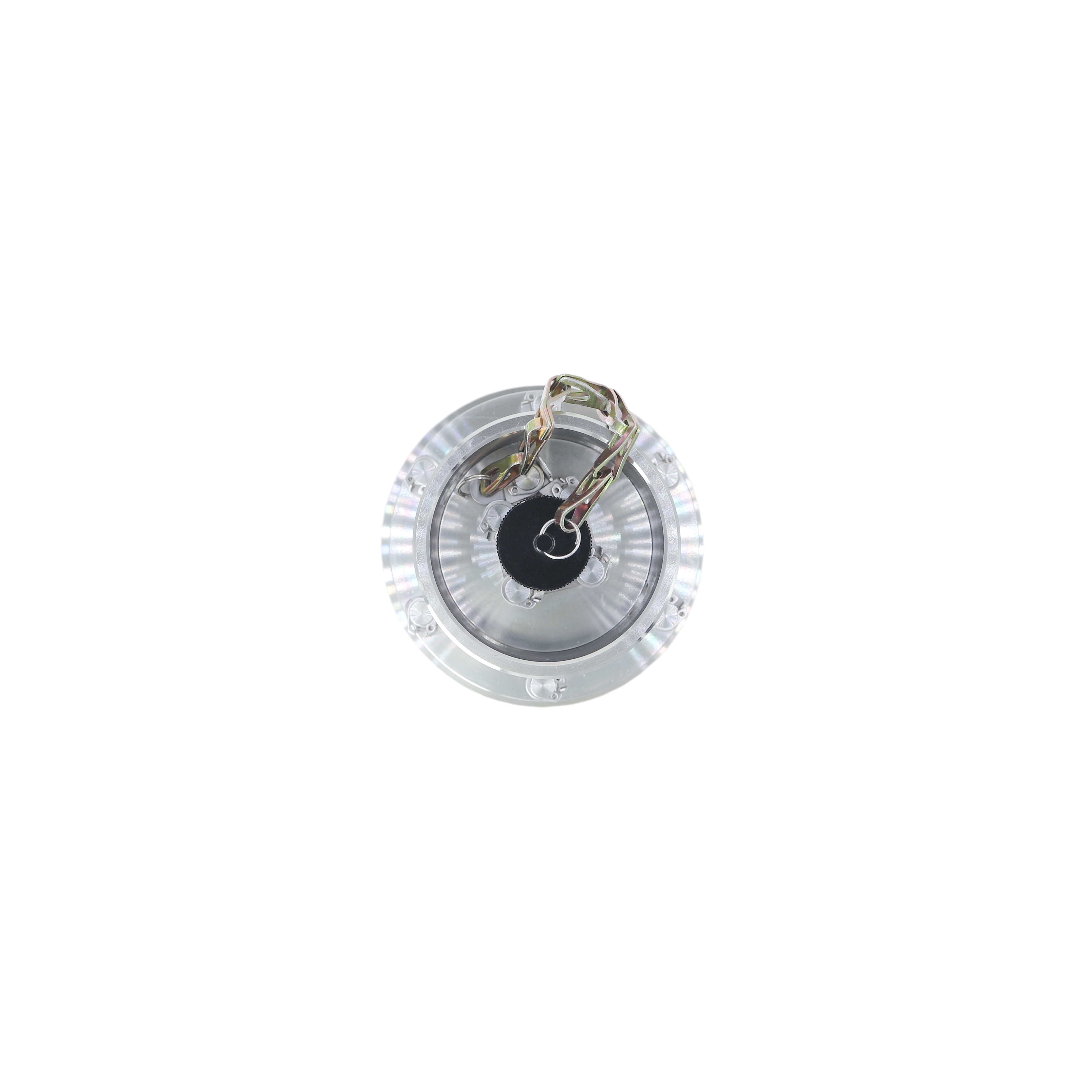

Fluid Melt OEM Industrial Pressure Transmitter IP67 20mA Output
| Place of Origin | China |
|---|---|
| Brand Name | Sier |
| Certification | CE,RoHS |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Carton |
| Delivery Time | 7days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 pieces each month |
Product Details
| Measuring Medium | Gas, Liquid, Oil, Mud | Ingress Protection | IP67 |
|---|---|---|---|
| Process Connection | M20x1.5,M14x1.5,M12x1,G1/4,G1/2,1/4NPT Or Other On Request | Output Signal | 4~20mA, 0~5VDC, 1~5VDC, 0~10VDC, 0.5~4.5VDC |
| Customized Support | OEM, ODM | Medium Temperature | -40℃~+125℃ |
| High Light | Fluid Melt Industrial Pressure Transmitter,OEM Industrial Pressure Transmitter,Industrial Pressure Transmitter IP67 |
||
Product Description
Fluid Melt OEM Industrial Pressure Transmitter IP67 20mA Output
Feathers
This product is using high quality diffused silicon core, after aging, compensation and high precision digital circuit debugging, the transmitter is made into standard signal. With low cost, mass production, spot supply. Also suitable for measuring low voltage range, standardized production, stable and reliable quality.
Specification
|
Media to be measured
|
wet soil, crude oil, corrosive liquids and gases | ||
| Pressure type | absolute pressure, sealed reference pressure, vent pressure | ||
| Range | 0～35MPa, 70MPa, 105MPa, 140MPa, 210MPa, 315MPa | ||
| Power supply | 9-30VDC | ||
| Output signal | 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC, 3mV/V | ||
| Nonlinear | 0.04% FS | ||
| Repeatability | 0.04% FS | ||
| Accuracy | 0.1% FS, 0.2% FS, 0.5% FS | ||
| Long-term stability | 0.1% FS / year (typical) | ||
| Working temperature | -43～85°C/125°C | ||
| Compensation temperature | -25 ~ 70 ° C / 100 ° C | ||
| Response time | ≤ 1 millisecond (typical) | ||
| Insulation resistance | ≥500MΩ/100V | ||
| Overload pressure | 200% FS (2 times full scale, special: 5 times full scale) | ||
| Destruction pressure | 500% FS (5 times full scale, special 10 times full scale) | ||
| Vibration resistance | about 10g/0~2000HZ | ||
| Vibration resistance | about 10g/0~2000HZ | ||
| Impact resistance | about 50g/1ms | ||
| Connection method | Chuck seal or specifified | ||
| Wetted material |
17-4PH stainless steel
|
||
| Relative humidity | 0～100%RH | ||
| Protection rating | IP67 | ||
| Electrical output lead | aerospace connector, Amphenol | ||
Electrical connection
Application
- Constant pressure water supply
- Hot water project
- Servo system
- Compressor use
- Hydraulic pressure ststion
- Oilfeld project
FAQ
Q: How long will you give me the reply?
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples asap.
Q: How about the quality of the managements ?
A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
