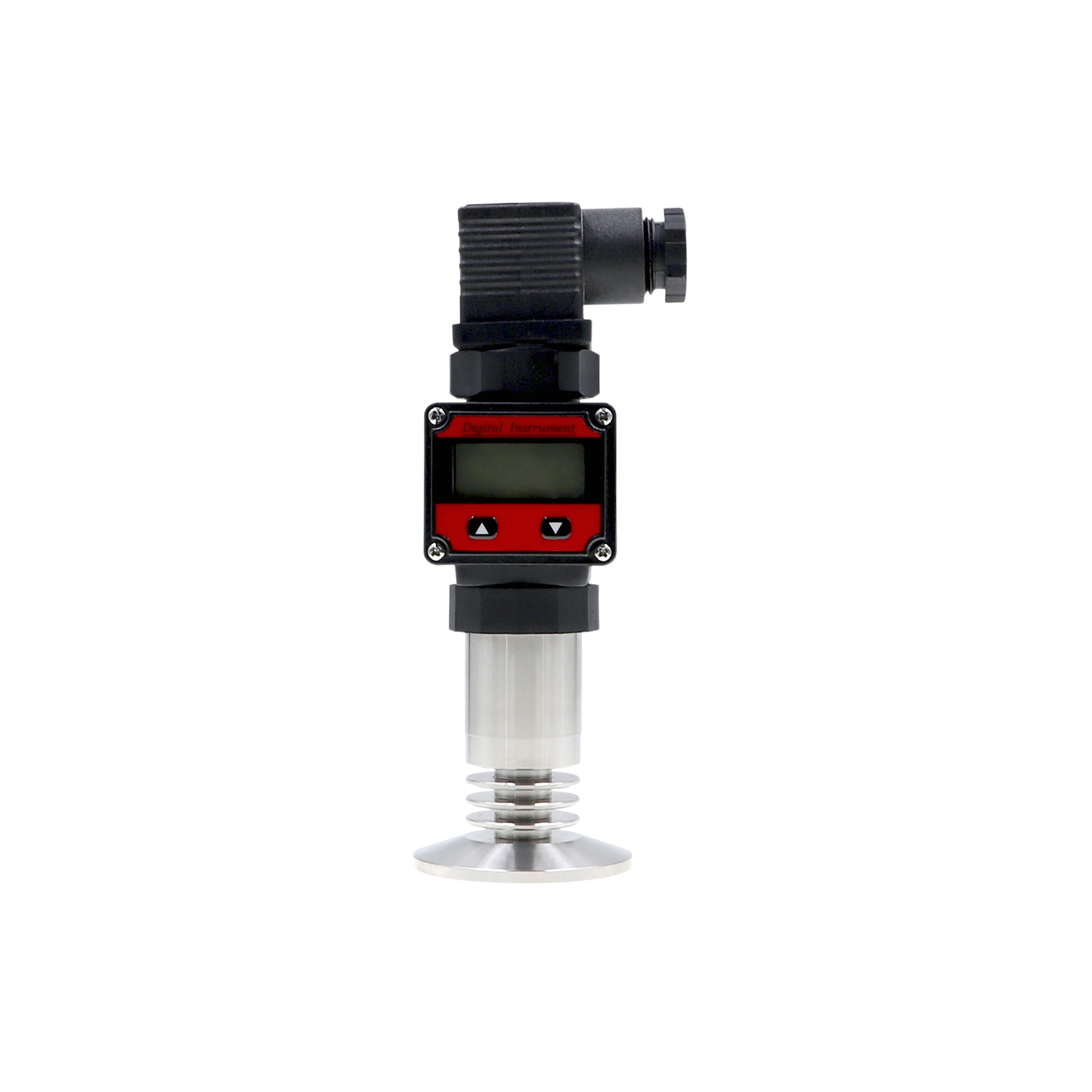

Flat Membrane Sanitary Pressure Transmitter For Food Industry

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Minimum Order Quantity 1 piece
Packaging Details Carton
Delivery Time 7days
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Product Name Food Industry Flat Membrane Sanitary Pressure Transmitter Ingress Protection IP65
Medium Water, Gas, Oil Purity Medium Accuracy 0.1,0.25,0.5% F.S Optional
Overload Capacity 150%F.S Output 4~20mA,0~5VDC,1~5VDC,0~10VDC Optional
High Light

Flat Membrane Sanitary Pressure Transmitter


IP65 Sanitary Pressure Transmitter


5VDC Sanitary Pressure Transmitter

Leave a Message
Product Description

Flat Membrane Sanitary Pressure Transmitter For Food Industry




* Top grade pressure core

* High protective seal shell

* Wide voltage supply

* IP65 grade

* Withstand voltage shock

* As high as 2 times instantaneous

Non-pressure hole technology, no cavity plane structure design enlarge contact area with medium, wide temperature measurement perfect anti-scaling character, widely used in food, medical, pharmaceutical, wine and other industries.



Pressure range Thread:0~0.01....20MPa Clamp:0~0.035...3.5MPa
pressure type gauge (G), absolute (A), sealed gauge (S)
Overload pressure 150%FS
Accuracy ±0.25%FS(typ.) ±0.5%F.S
long-term stability ±0.2%FS/year
compensate temperature -10°C~70°C
Output signal 4~20mA 0~5VDC 1~5VDC 0~10VDC (OEM)
Power supply 5V, 12~30Vdc
electrical interface DIN43650, cable connection, 2088 shell
pressure interface M20x1.5,G1/2 ,NPT1/2(customer request)
shock 11ms
protection IP65(OEM)



Process control system

Biological products


Food hygiene


Outline dimension

Flat Membrane Sanitary Pressure Transmitter For Food Industry 0
