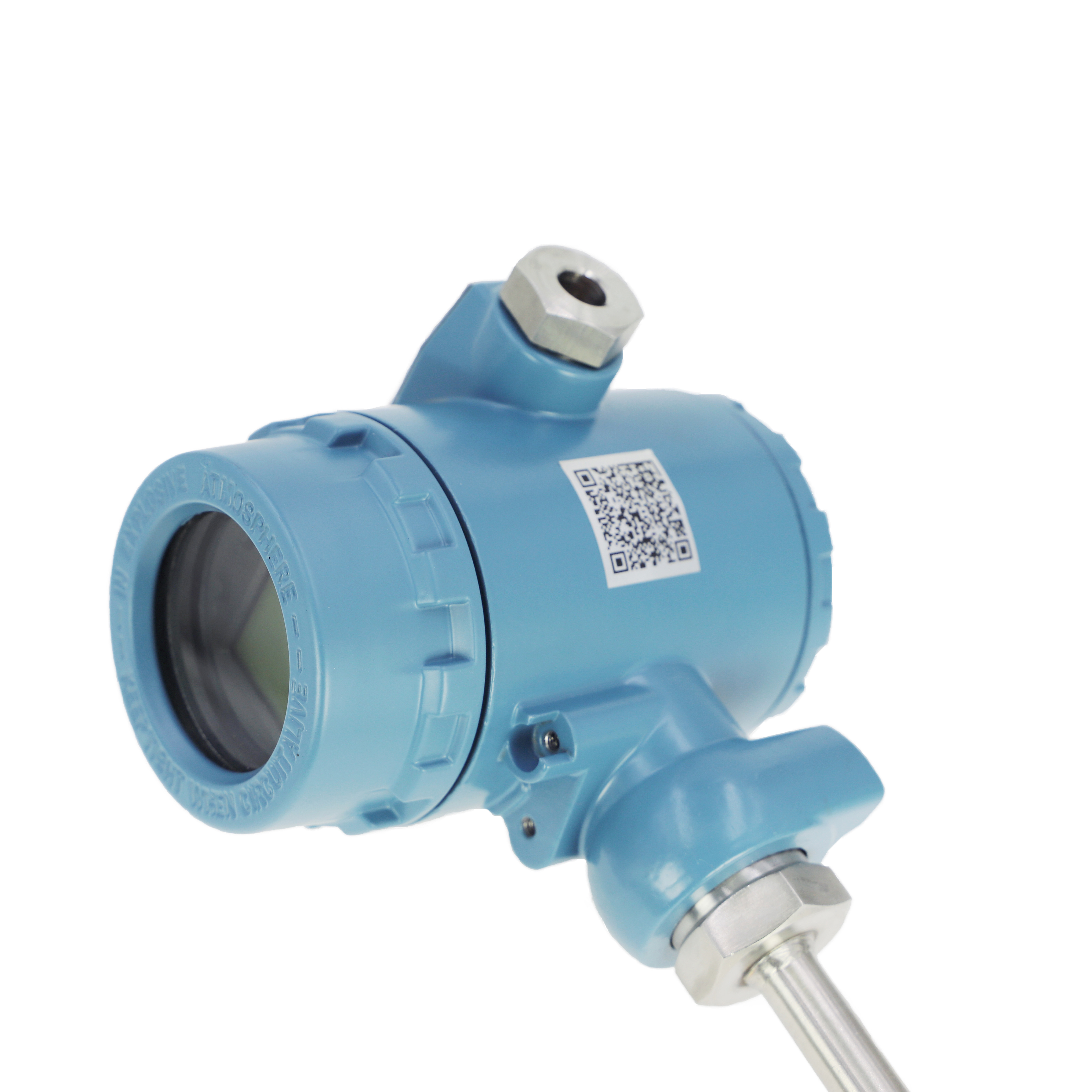

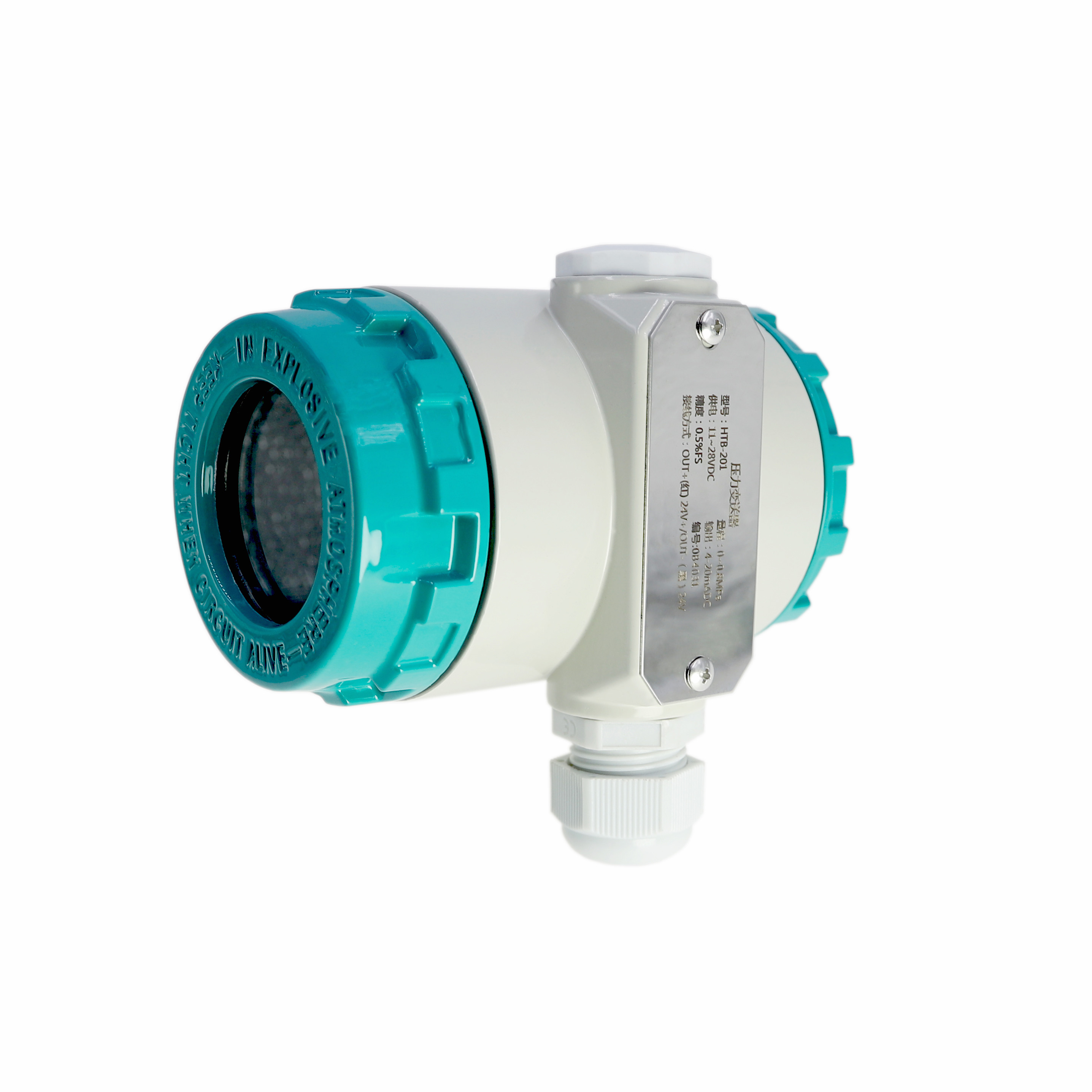

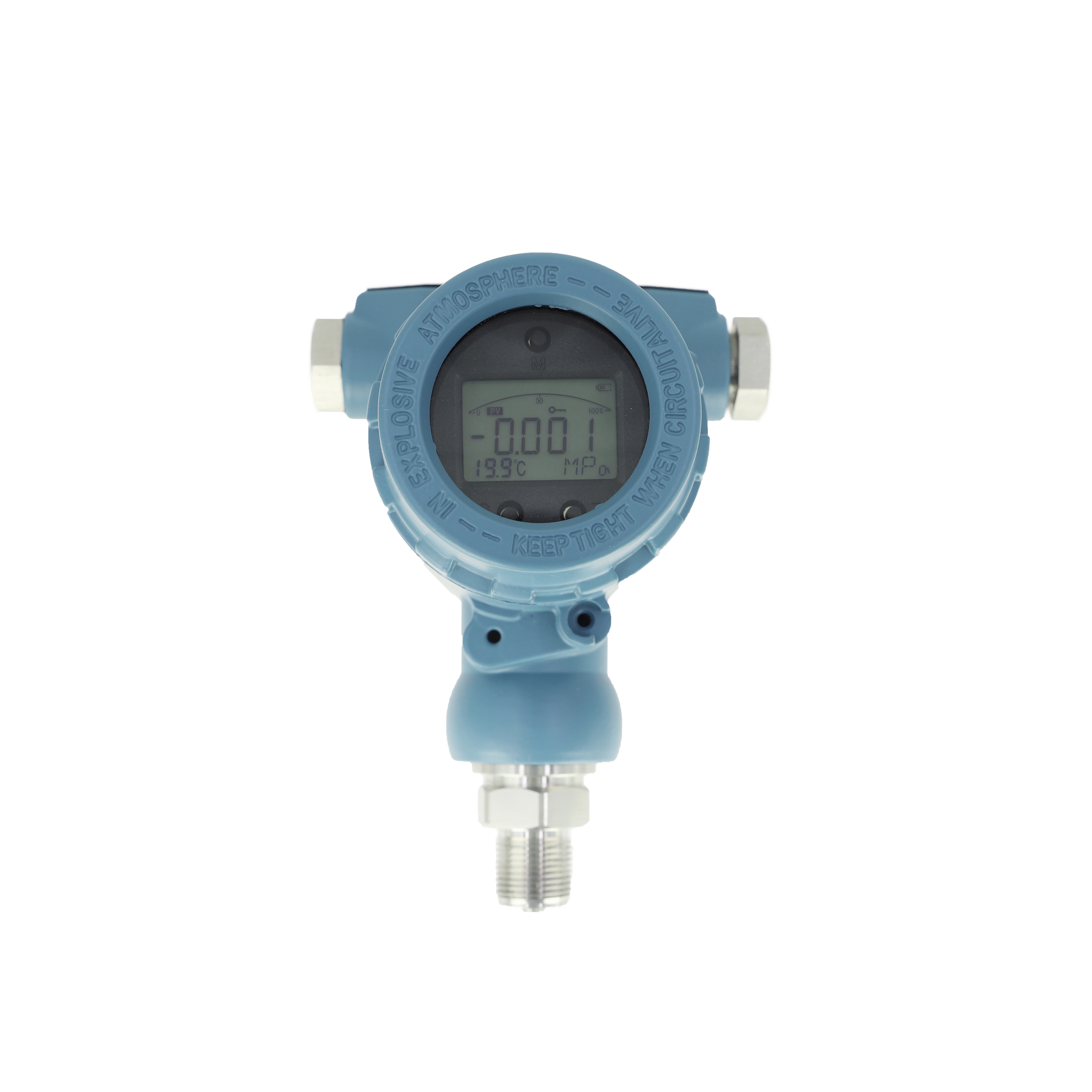

Explosion Proof IP65 SS304 Industrial Pressure Transmitter
| Place of Origin | China |
|---|---|
| Brand Name | Sier |
| Certification | CE,RoHS |
| Model Number | SPT22Z |
| Minimum Order Quantity | 1 |
| Price | USD40~80/Piece |
| Packaging Details | Carton |
| Delivery Time | 7 |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 pieces each month |
Product Details
| Housing | Aluminum-alloy | Pressure Port | SS304 Or SS316L Optional |
|---|---|---|---|
| Diaphragm | SS316L | Sealing Gasket | Viton |
| Cable Gland | Plastic | Housing Protection | IP65 |
| Compensated Temp. | 0~50℃ | ||
| High Light | RoHS 0.2％FS Industrial Pressure Transmitter,IP65 digital water pressure meter,SS304 digital water pressure meter |
||
Product Description
Smart Pressure Transmitter
Features
- Aluminum-alloy electronic housing
- Optional signal output
- Gauge, absolute and sealed gauge optional
- Air compressor, refrigerator
- Water pump, urban intelligent pipe network
Introduction
The product uses piezoresistive OEM pressure sensor as sensing element, which is accurate tested and laser trimmed for compensated zero and sensitivity in wider temperature range. The amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, the whole product is stable and reliable. The product is suitable for rugged environment which needs zero elevation and range adjustment, could be widely used for process control and pressure measure of petroleum, chemi-industry, metallurgy, power station and environment control, etc.
Specification
| Pressure range | -0.1…0～0.01…100MPa (-1…0~0.1…1000bar) |
| Over pressure | 1.5 times FS or 110MPa (min. value is valid) |
| Pressure type | Gauge/absolute/sealed gauge optional |
| Process connection | G1/2 male thread (or as per customer’s requirement) |
| Accuracy | ±0.1％FS ±0.2％FS optional |
| Indicator | 4 digit LCD |
| Display range | -1999~9999 |
| Compensated temp. | 0~50℃ |
| Environment temp. | -20~70℃ |
| Power supply | 18~36VDC |
| Output signal | 4~20mADC(2 wires)/RS485 |
| Housing protection | IP65 |
| Electrical connection | Cable gland |
Construction and Outline Dimension
Construction material:
♦Housing: Aluminum-alloy
♦Pressure port: SS304 or SS316L optional
♦Diaphragm: SS316L
♦Sealing gasket: Viton
♦Cable gland: Plastic
Outline dimension: Electrical Connection:
- High elasticity
- Impact resistance
- Vibration resistance
- High stability
- High precision
- Fast response speed
