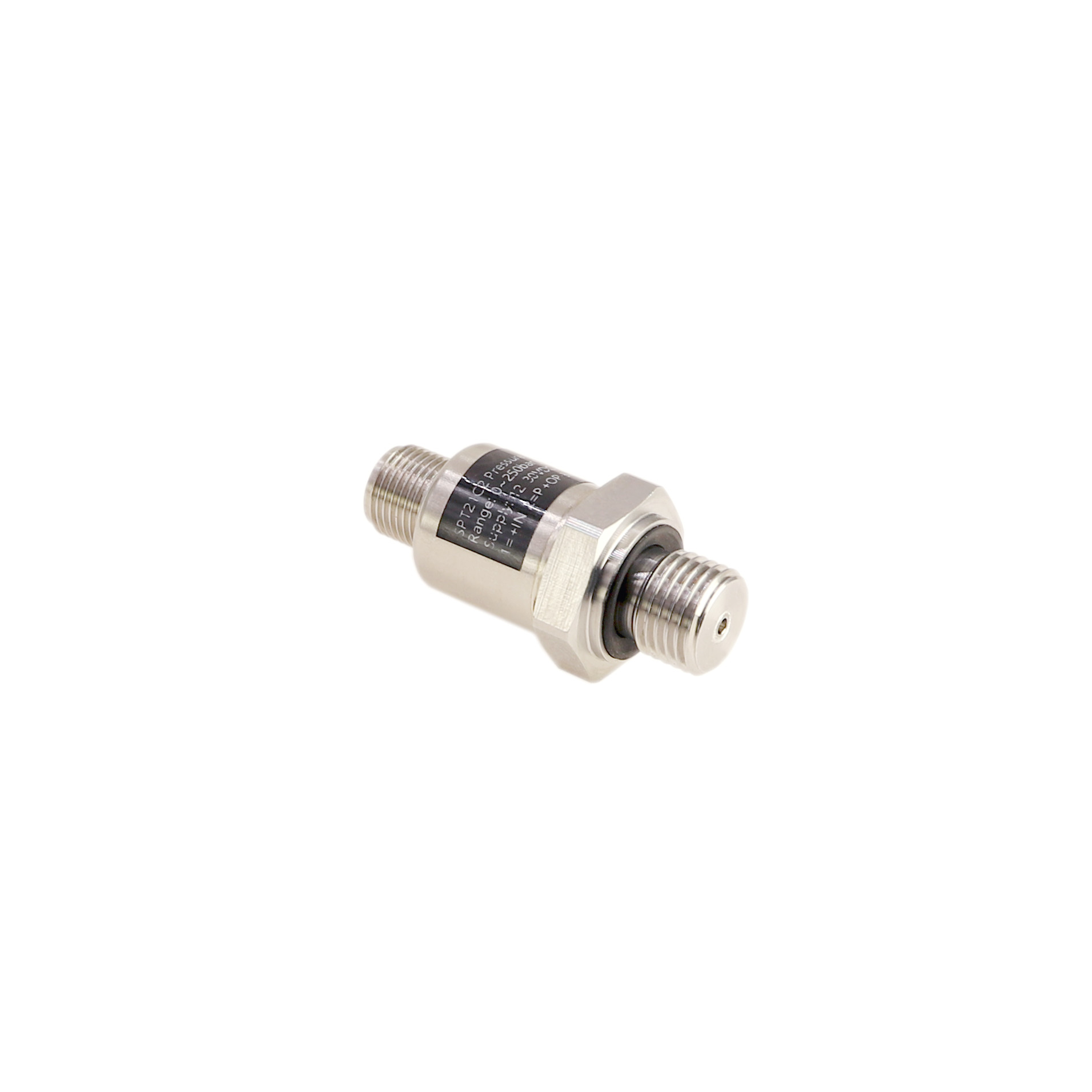

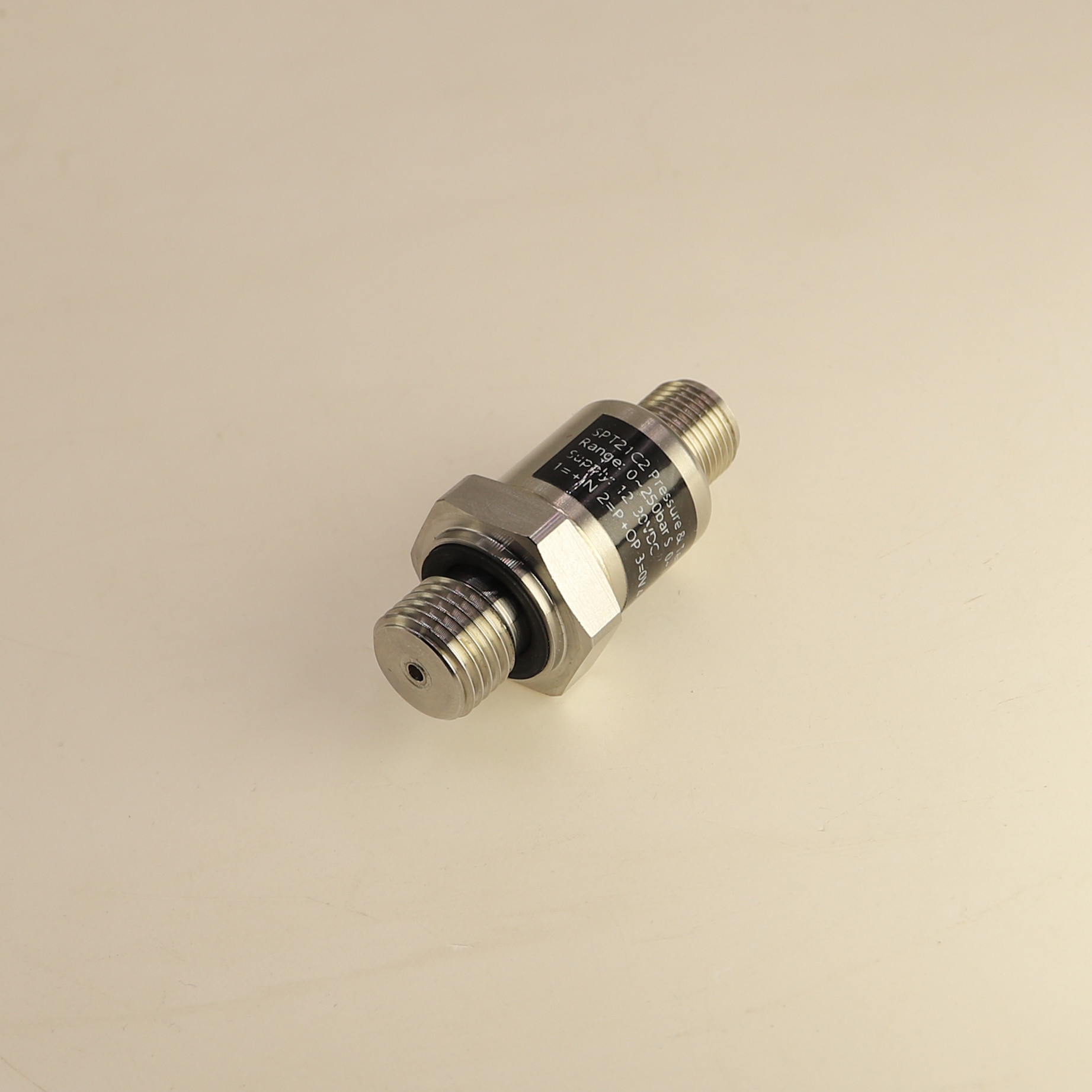

Customized M12x1 IP65 SS316L 10V Steam Pressure Sensor
Housing Material | Stainless Steel : 1Cr18Ni9Ti | Diaphragm Material | SS316L |
---|---|---|---|
Customized | Acceptable | Voltage | 5VDC/10VDC |
Protection | IP65 | Electrical Connection | M12x1 Or Customize |
High Light | 10V Steam Pressure Sensor,SS316L Steam Pressure Sensor,IP65 Steam Pressure Sensor |
Compact Temperature Steam Pressure Sensor 0-10V With Good Price
Feature
high temperature pressure transmitter
pressure range: -100kPa~0...0~10kPa...100MPa
gas or dilute liquid compatible with 316LSS
high reliability and stability
Pressure range | -0.1...0~0.01...100MPa |
Pressure type | gauge (G), absolute (A), sealed gauge (S) |
Accuracy | 0.25%FS(typ.) ±0.5%F.S |
Output signal | 4~20mA 0~5V 1~5V 0~10V 0.5-4.5V |
Power supply | 5VDC 12~30VDC |
compensate temperature | -10°C~70°C |
Operating temperature | -20°C~150°C |
protection | IP65 |
electrical interface | DIN43650 Cable connection |
material of pressure | stainless steel |
Application
♦ Service standards: we are committed to providing a high quality,and responsive services to all clients
♦The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
♦ Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
♦ Excellent package: each unit has individual box and all boxes are packed in standard packages.
♦ OEM available
FAQ
Q: Are you trading company or manufacturer ?
A: We are a company with a factory in china.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could provide the sample. But, you need to pay for the cost.
Q: What are your main products?
A: Our main products are Pressure Transmitters, Temperature Transmitters,Differential Pressure Transmitters,etc.
Package&Shipping
♦Standard export package: each unit has individual box and all boxes are packed in standard packages
♦As the clients requirement
