Cost Effective Factory Ceramic Pressure Transmitter With Compact Size

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT21C1
Minimum Order Quantity 1
Price USD15~25/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing SS304 Pressure Port SS304
Diaphragm SS316L Sealing Gasket Viton
Plug Housing Plastic Cable Polyethylene
High Light

40MPa Ceramic Pressure Transmitter

,

40MPa piezoresistive pressure transmitter

,

SS316L piezoresistive pressure transmitter

Leave a Message
Product Description

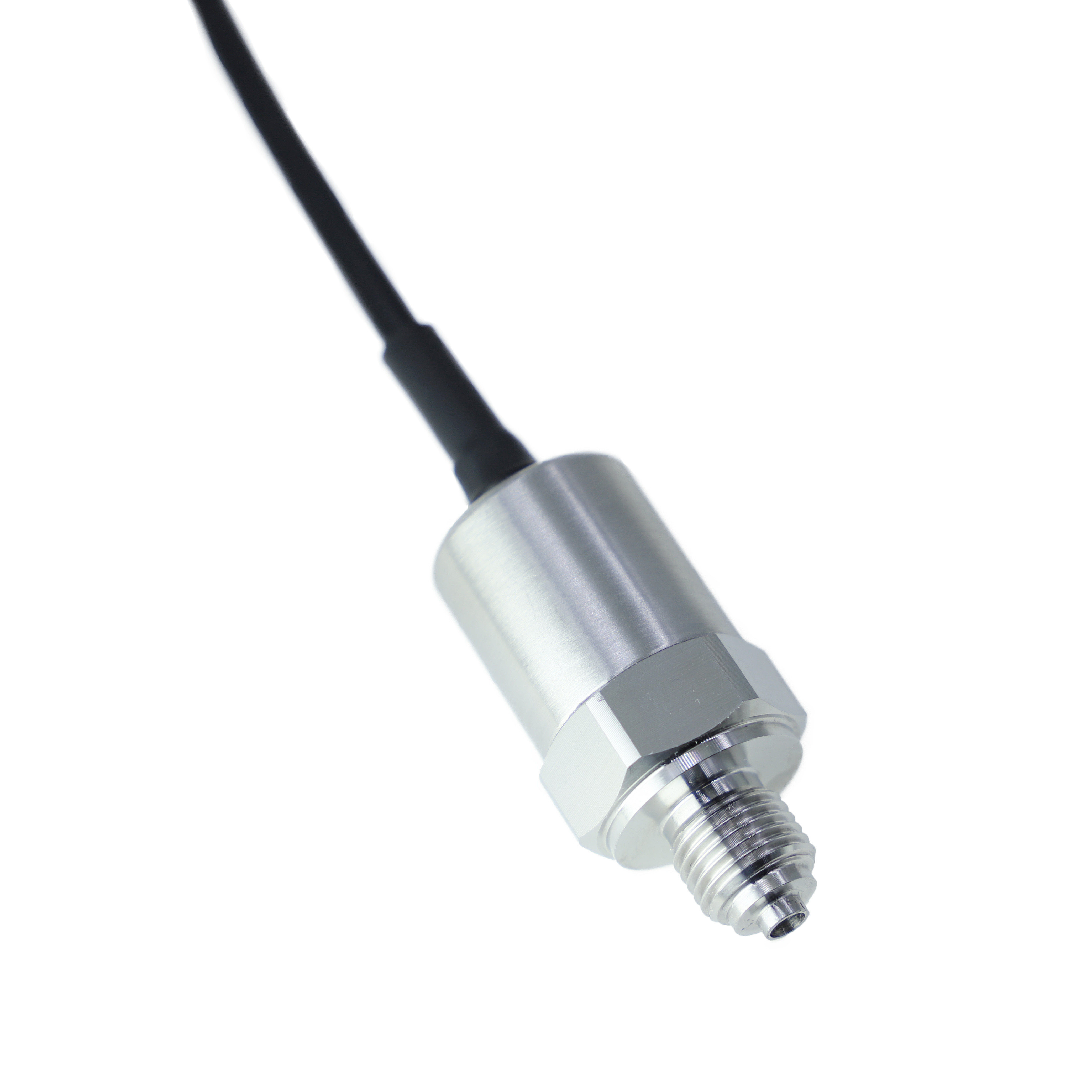

Cost Effective Factory Ceramic Pressure Transmitter With Compact Size 0

SPT21C1 Pressure Transmitter

FeaturesCost Effective Factory Ceramic Pressure Transmitter With Compact Size 1

Reliable performance, easy application
Short protection and reverse polarity protection
Low cost
Compact size



Introduction

SPT21C1 is economical pressure transmitter, uses standard ceramic pressure sensor and special circuit board to make it cost effective and good performance. This product is used for measure and control of liquid or gas pressure.



Specification

Pressure range 0~0.5…40MPa (0~5…400bar)
Over pressure 2 times FS
Pressure type Gauge
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.5%FS
Long term stability max. ±0.3%FS/year
Offset thermal drift ±0.02%FS/℃
Application temp. -30~80℃
Storage temp. -40~125℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug,M12 (or as per customer’s requirement)



Construction and Outline Dimension

Construction material:

Housing SS
Pressure port SS
Sensor Ceramic
Sealing gasket Viton
Plug housing Plastic
Cable Polyethylene



Outline dimension:

Cost Effective Factory Ceramic Pressure Transmitter With Compact Size 2

Cost Effective Factory Ceramic Pressure Transmitter With Compact Size 3



Order Information

Cost Effective Factory Ceramic Pressure Transmitter With Compact Size 4

Note:

  • Please pay attention that the media should be compatible with the contacted parts;
  • If any special requirements on function or specification, please contact with us freely;
