Anticorrosive Magnetostrictive Level Transmitter
Accuracy | ±1mm | Environment Temperature | -25℃-70℃ |
---|---|---|---|
Liquid Temperature | -25℃-150℃ | Power Supply | DC24V |
Temperature Measurement | -25℃-70℃ | Explosion-proof | ExiaIIBT4 |
High Light | Magnetostrictive Level Transmitter,Anticorrosive Level Transmitter,DC24V Liquid Level Transmitter |

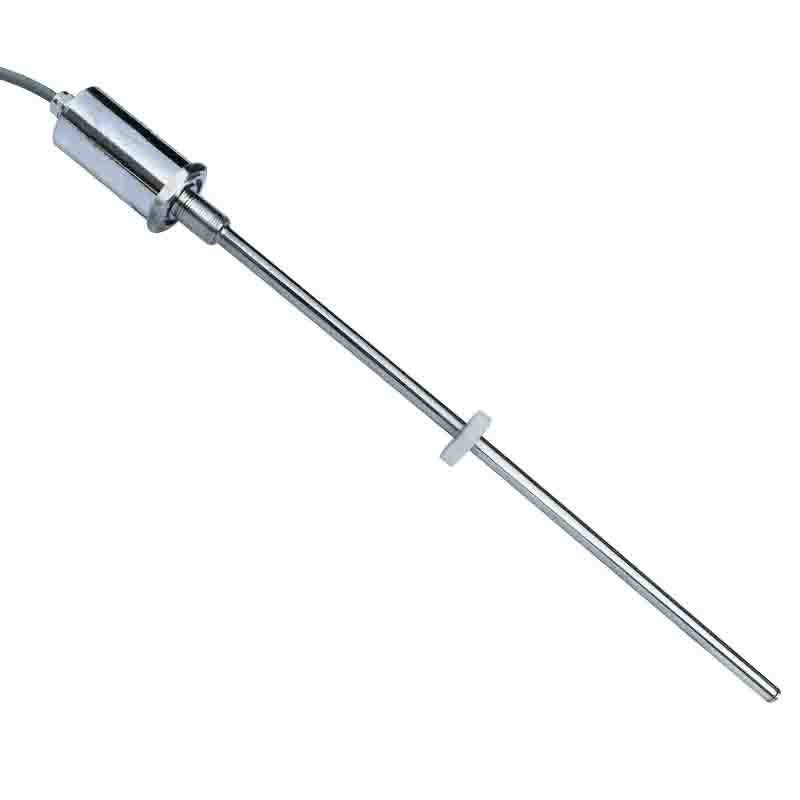

SCZ21 Magnetostrictive Liquid Level Transmitter
Features
• Safe and reliable, stable operation
• Large measuring range and high precision
• Liquid level and boundary level measurement
• Anti-static, anti-surge, anti-interference and electromagnetic compatibility design
• The pressure-bearing pipe design of the high-pressure vessel does not require pressure relief for maintenance
• It can be used in dangerous places such as Viscous medium, corrosive, toxic, flammable and explosive
Introduction
The SCZ21 series magnetostrictive liquid level transmitter is a remote continuous measuring liquid level instrument designed based on the Villari effect. It’s suitable for the measuring the liquid level or boundary level in open or closed containers. Because of its high measurement accuracy and low maintenance rate, magnetostrictive liquid level transmitter is an better choice for long-distance continuous liquid level meters.
The magnetostrictive level transmitter’s structure is reasonable, high precision, low maintenance rate. This product has been widely used in petroleum, chemical, electric power, metallurgy, food, pharmaceutical, paper, water treatment and other industries in the level measurement and liquid level process control.
Specification
Range: 0-6000mm (hard rod)/0-25000mm (soft rod)
Accuracy: ±1mm
Resolution: 0.1mm
Environment temperature: -25℃-70℃
Liquid temperature: -25℃-150℃
Process interface: M27*2
Power supply: DC24V
Output signal: 4-20mA, two-wire system/three-wire
Temperature measurement: -25℃-70℃
Thermal error: ±0.5℃
Explosion-proof: ExiaIIBT4
Communication: RS-485, RS-232, Modbus, Hart and other protocols, can be equipped with CAN bus or customized.
Installation
The magnetostrictive level transmitter has two installation forms to meet user needs, including: top-mounted and side-mounted.
