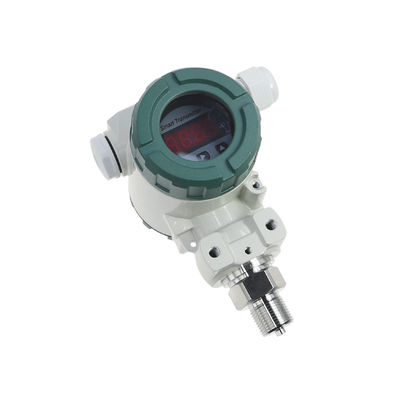

Aluminium Die Casting Industrial Pressure Transmitter NPT1/2 Thread
Application | Gas | Explosion-proof | Yes |
---|---|---|---|
Material | Aluminum | Type | Cast Aluminium Die Casting |
Product Name | Pressure Transmitters Housing Enclosure | Brand Name | Sier |
High Light | OD 88MM Industrial Pressure Transmitter,NPT1/2 Thread Industrial Pressure Transmitter,M46*1.5 Industrial Pressure Transmitter |
Smart Pressure Transmitter
Features
- Full range coverage
- Accurate static pressure measurements
- Various field conditions
- High acccuracy at all times
Details
· Made of high quality steel forging and pressing, with high hardness, strong impact resistance.
· The display uses traditional digital diaplay to be economical and durable, and the on-site temperature data is clear at a glance.
· the anti-interference sensor is more durable and has excellent measurement accuracy and fast response.
Parameter | |
Brand | Sier |
Type | Flow meter enclosure |
Code | BP20 |
Material | Aluminum |
Size | OD Ø88,ID Ø78,H:77 |
Outlet Thread | NPT1/2 M20*1.5 |
Sensor Mouths | M46*1.5 |
Construction and Outline Dimension
Construction material:
♦Housing: Aluminum-alloy
♦Pressure port: SS304 or SS316L optional
♦Diaphragm: SS316L
♦Sealing gasket: Viton
♦Cable gland: Plastic
Outline dimension: Electrical Connection:
Using imported materials, diaphragm isolation technology, using micro-pressure pressure sensor chip.
High precision, high cost performance, high stability.
The sensor has strong anti-interference and long-term stability.
application
- Aerospace
- Petroleum manufactyring
- Ship
- CNG
- Railway
- Hydraulic engineering
Packing&Delivery
Usually, Different models, the package will be different,also according to different size. We support carton box, If you have special requirements, you can contact us.
Order Notes
1. Material and color can be customized.
2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.
3. For modification, there will be surcharge.
4. Drawings from website is just for reference.
5. Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.
6. More details you also can visit our company web: www.sierelectro.com
