20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland

  • 20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland
  • 20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland
  • 20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland
Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT22Z
Minimum Order Quantity 1
Price USD40~80/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Housing Aluminum-alloy Pressure Port SS304 Or SS316L Optional
Diaphragm SS316L Sealing Gasket Viton
Cable Gland Plastic Housing Protection IP65
High Light

350bar industrial pressure transmitter

,

20mA stainless steel pressure transmitter

,

0.1％FS air pressure transmitter
Leave a Message
Product Description

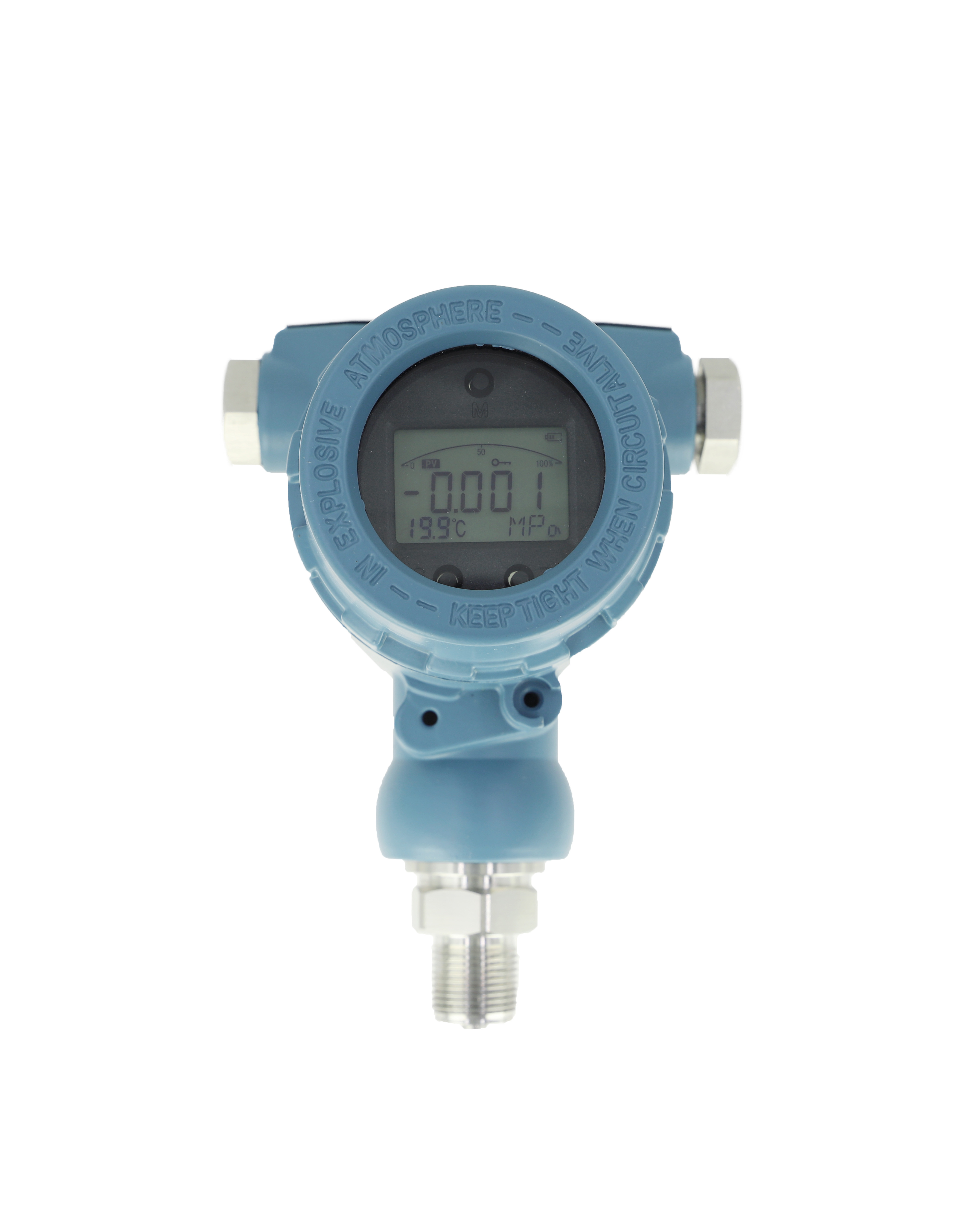

SPT22Z Smart Pressure Transmitter

Features

  • Aluminum-alloy electronic housing; protection IP65;
  • Reversed signal polarity; moment overcurrent,overvoltage, interference protection;
  • Optional signal output;
  • Gauge, absolute and sealed gauge optional
  • Offset and full scale adjustable
  • LCD indicator optional
  • Stainless steel material contacting with the media; flush diaphragm and tantalum diaphragm optional;

Introduction

The product uses piezoresistive OEM pressure sensor as sensing element, which is accurate tested and laser trimmed to compensated zero and sensitivity in wider temperature range. The amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, the whole product’s performance is stable and reliable. The product is suitable for rugged environment which needs zero elevation and range adjustment, could be widely used for process control and pressure measure of petroleum, chemi-industry, metallurgy, power station, textile industry, building material, hydrology and environment control, etc.

Specification

Pressure range -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/2 male thread (or as per customer’s requirement)
Accuracy ±0.1％FS ±0.2％FS optional
Indicator 4 digit LCD
Display range -1999~9999
Compensated temp. 0~50℃
Environment temp. -20~70℃
Power supply 18~36VDC
Output signal 4~20mADC(2 wires)/RS485
Housing protection IP65
Electrical connection Cable gland

Construction and Outline Dimension

Construction material:

  ♦Housing: Aluminum-alloy

  ♦Pressure port: SS304 or SS316L optional

  ♦Diaphragm: SS316L

  ♦Sealing gasket: Viton

  ♦Cable gland: Plastic

Outline dimension:                                            Electrical Connection:

20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland 0                          20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland 1

Order Information

20mA Stainless Steel 350bar Industrial Intelligence Pressure Transmitter Cable Gland 2



Note:

  1. Please pay attention that the media should be compatible with the contacted parts;

  2. If any special requirements on function or specification, please contact with us freely;



FAQ

Q: What detailed information do I need to provide if I want to place an order?
A: We need to know the following information: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



Q: Can you provide calibration report of Air Compressor Pressure Transducer?

A: Yes, the sensor can provide calibration report.



Q: Can you accept OEM brand?

A: Yes, we can accept OEM brand without extra charge.



Q: Can you offer samples?

A:Yes, you can apply for sample testing.
