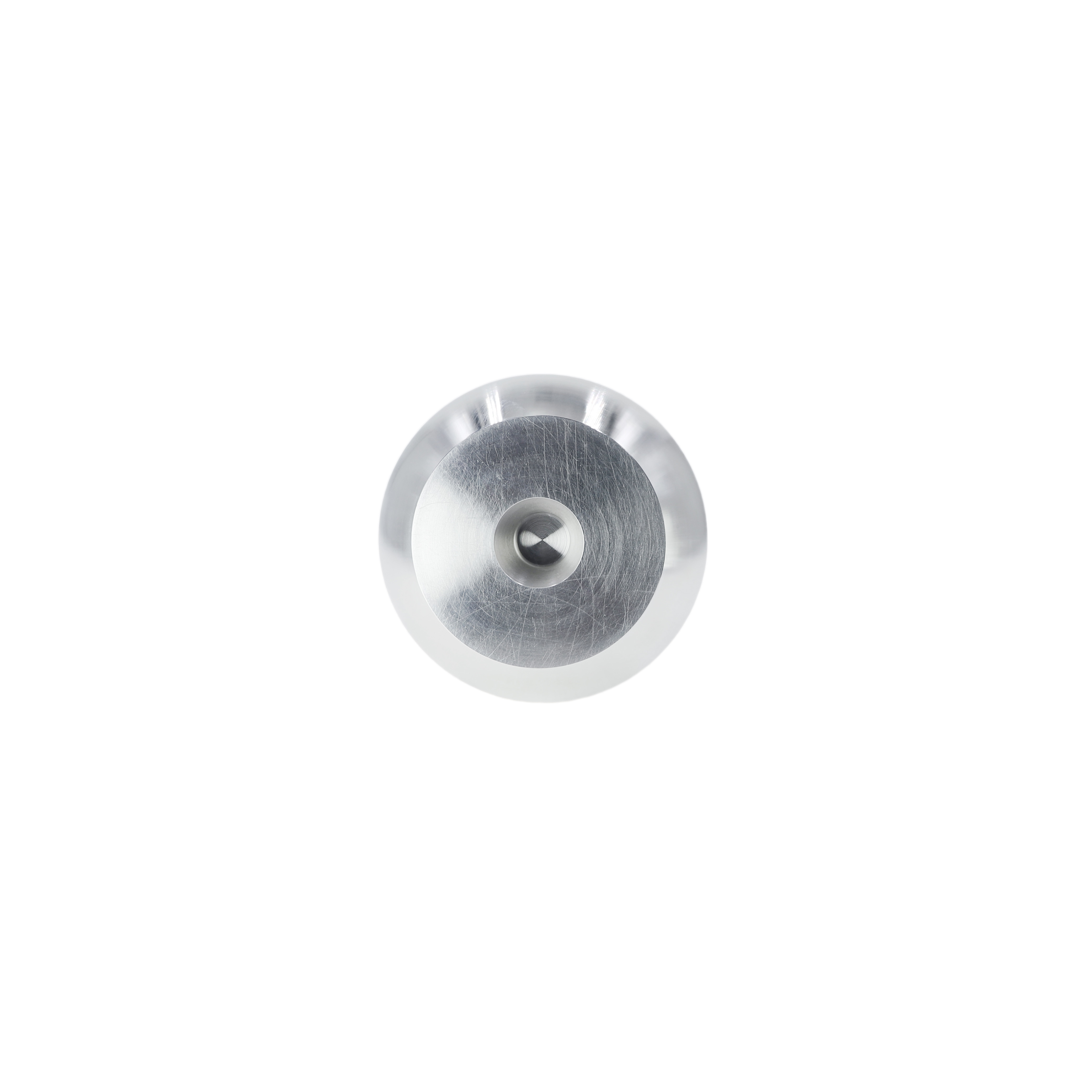

20mA Liquid Gas Pressure Transmitter OEM Gauge Pressure Transmitter
Product Name | Gauge Pressure Transmitter 4-20mA | Color | SS |
---|---|---|---|
Application | Liquid Oil Gas Pressure Transmitter | Place Of Origin | Shaanxi, China |
Warranty | 12Months | Customized Support | OEM |
High Light | 20mA Liquid Gas Pressure Transmitter,OEM Gauge Pressure Transmitter,105MPa Gas Pressure Transmitter |
Feathers
* Updating time of output current in 90 ms
* Improved performance, increased accuracy and greater stability
* Two years stability of 0.15%
* Parameter setting by keypad directly
* 4-20 mA output plus direct digital HART communication
* Automatic zero calibration by press-button
* Explosion proof and weather proof housing
Specification
Media to be measured
|
wet soil, crude oil, corrosive liquids and gases | ||
Pressure type | absolute pressure, sealed reference pressure, vent pressure | ||
Range | 0~35MPa, 70MPa, 105MPa, 140MPa, 210MPa, 315MPa | ||
Power supply | 9-30VDC | ||
Output signal | 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC, 3mV/V | ||
Nonlinear | 0.04% FS | ||
Repeatability | 0.04% FS | ||
Accuracy | 0.1% FS, 0.2% FS, 0.5% FS | ||
Long-term stability | 0.1% FS / year (typical) | ||
Working temperature | -43~85°C/125°C | ||
Compensation temperature | -25 ~ 70 ° C / 100 ° C | ||
Response time | ≤ 1 millisecond (typical) | ||
Insulation resistance | ≥500MΩ/100V | ||
Overload pressure | 200% FS (2 times full scale, special: 5 times full scale) | ||
Destruction pressure | 500% FS (5 times full scale, special 10 times full scale) | ||
Vibration resistance | about 10g/0~2000HZ | ||
Vibration resistance | about 10g/0~2000HZ | ||
Impact resistance | about 50g/1ms | ||
Connection method | Chuck seal or specifified | ||
Wetted material |
17-4PH stainless steel
|
||
Relative humidity | 0~100%RH | ||
Protection rating | IP67 | ||
Electrical output lead | aerospace connector, Amphenol |
Electrical connection
Shipping&Payment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working days or longer.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could provide the sample. But you need to pay for the cost.
Q: What certificates do you have?
A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.
Q: What are your main products?
A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
