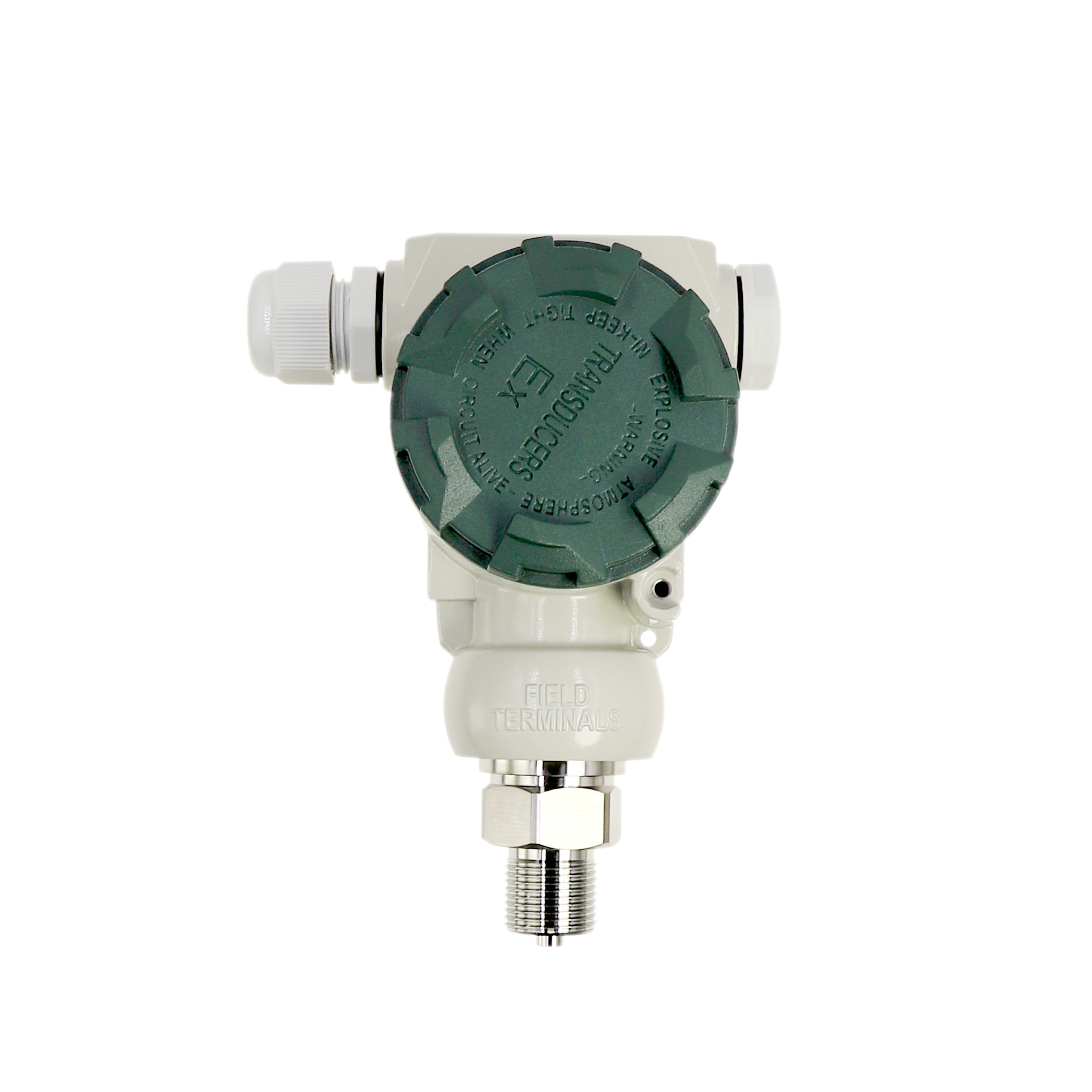

10v Industrial Pressure Transmitter 100MPa Analog Output

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT22Z
Minimum Order Quantity 1
Price USD40~80/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Medium Oil/water/gas Output Signal 4~20mA/0-10V/0-5V/RS485
Process Connection Thread,flange Warranty 2 Years
Product Name Explosion Proof Pressure Transmitter Pressure Range 0.1-0-100MPa
High Light

10v Industrial Pressure Transmitter


Industrial Pressure Transmitter 100MPa


SS316L Industrial Pressure Transmitter

Leave a Message
Product Description


Smart Pressure Transmitter


This series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.



· Strong anti-interference and long-term stability

· High precision isolation circuit board

· 304 or 316L stainless steel isolation diaphragm structure

· Microamplifier, output of voltage current and RS485 signals

· Water proof and dustproof


Mainly technical parameters


Model HDP800
Power supply 3-5VDC,12-28VDC
Output single 4~20mA,1~5V,0~10V,RS485
Measuring range -0.1...0...100Mpa
Compensation temperature

-10~70℃(Standard )

-10~400℃(High Temperature type)

Medium temperature -40~80℃
Environment temperature -40~85℃
Measuring media Gaseous,Liquid,Water
Pressure type Gauge pressure,Absolute pressure
Accuracy 0.1%F.S,0.25%F.S,0.5%F.S(standard)
Zero tempe drift ±0.03%F.S/℃
Sensitivity temperature drift ±0.03%F.S/℃
Overload 200%F.S
Long-term stability ≤0.2%F.S/year
Inherent frequency 5kHz~650kHz
Protection grade IP65

10v Industrial Pressure Transmitter 100MPa Analog Output 0

Construction and Outline Dimension

Construction material:

  ♦Housing: Aluminum-alloy

  ♦Pressure port: SS304 or SS316L optional

  ♦Diaphragm: SS316L

  ♦Sealing gasket: Viton

  ♦Cable gland: Plastic

Outline dimension:                                            Electrical Connection:

10v Industrial Pressure Transmitter 100MPa Analog Output 1                          10v Industrial Pressure Transmitter 100MPa Analog Output 2

Various types of pressure transmitter

Customization of various pressure sensors.



- Hydraulic pressure

- Air pressure

- Negative pressure

- Absolute pressure


Production process

1. Incoming quality controllncoming quality control

2. Six precise calibrations to ensure full range accuracy

3. Intelligent aging system to screen out defective products

4. Temperature, humidity and vibration comprehensive test

5. laser marking

6. Intelligent chip design, more accurate and stable signals

7. Silicon get protection technology

8. PCB board exit inspectio PCB


Order Notes

1. Material and color can be customized.

2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.

3. For modification, there will be surcharge.

4. Drawings from website is just for reference.

5. Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.

6. More details you also can visit our company web: www.sierelectro.com
