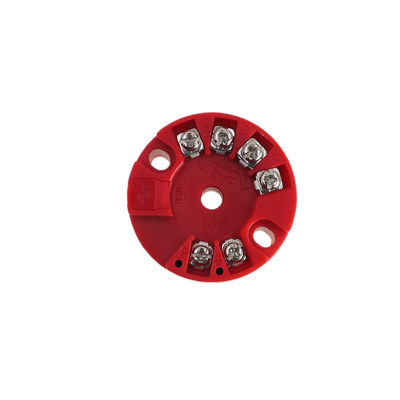

24VDC RTD Infrared Temperature Transmitter Head Mount
Accuracy | ≤0.1%F.S. | Operating Temp. | -40ºC-85ºC |
---|---|---|---|
Cold Junction Compensation | Build-in | Input | Thermocouples, RTD, Resistance Or Voltage |
Product Name | Temperature Transmitter Moduel | Power Supply | 24VDC |
High Light | RTD Infrared Temperature Transmitter,24VDC Infrared Temperature Transmitter,RoHS Infrared Temperature Transmitter |
ST04 Temperature Transmitter
ST04 is a head mount temperature transmitter with a single input. The single input accepts thermocouples, RTD, resistance or voltage source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA output for transmission to your system.
► Can convert all inputs to 4-20 mA
► Input: thermocouples, RTD, resistance or voltage
► Configuration directly via PDA or PC
► Build-in cold junction compensation
► Available with screw-in temperature probe
Outline dimension:
Function
* Install the driver
* Connect the transmitter with PC, open the software
* Choose the sensor type and temperature unit
* Set the temperature range accodingly
* Click ok or amend if need modify and the finish
* Other parameters are dufult and no need to set normally
