All Welded OEM SS316 20mA 28VDC Liquid Submersible Level Transmitter
|Cable||φ7.5mm Polyethylene Cable Or Polyurethane Cable For Options||Diaphragm||Stainless Steel 316L|
|Accuracy||0.5%FS||Overpressure||2 Times FS|
28VDC liquid level transmitter,
CE 20mA capacitance level transmitter,
SS316 28VDC capacitive liquid level sensor

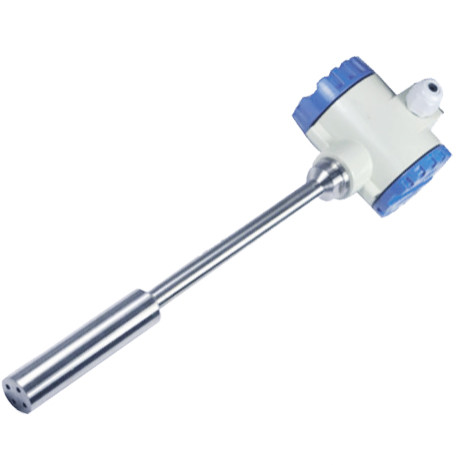

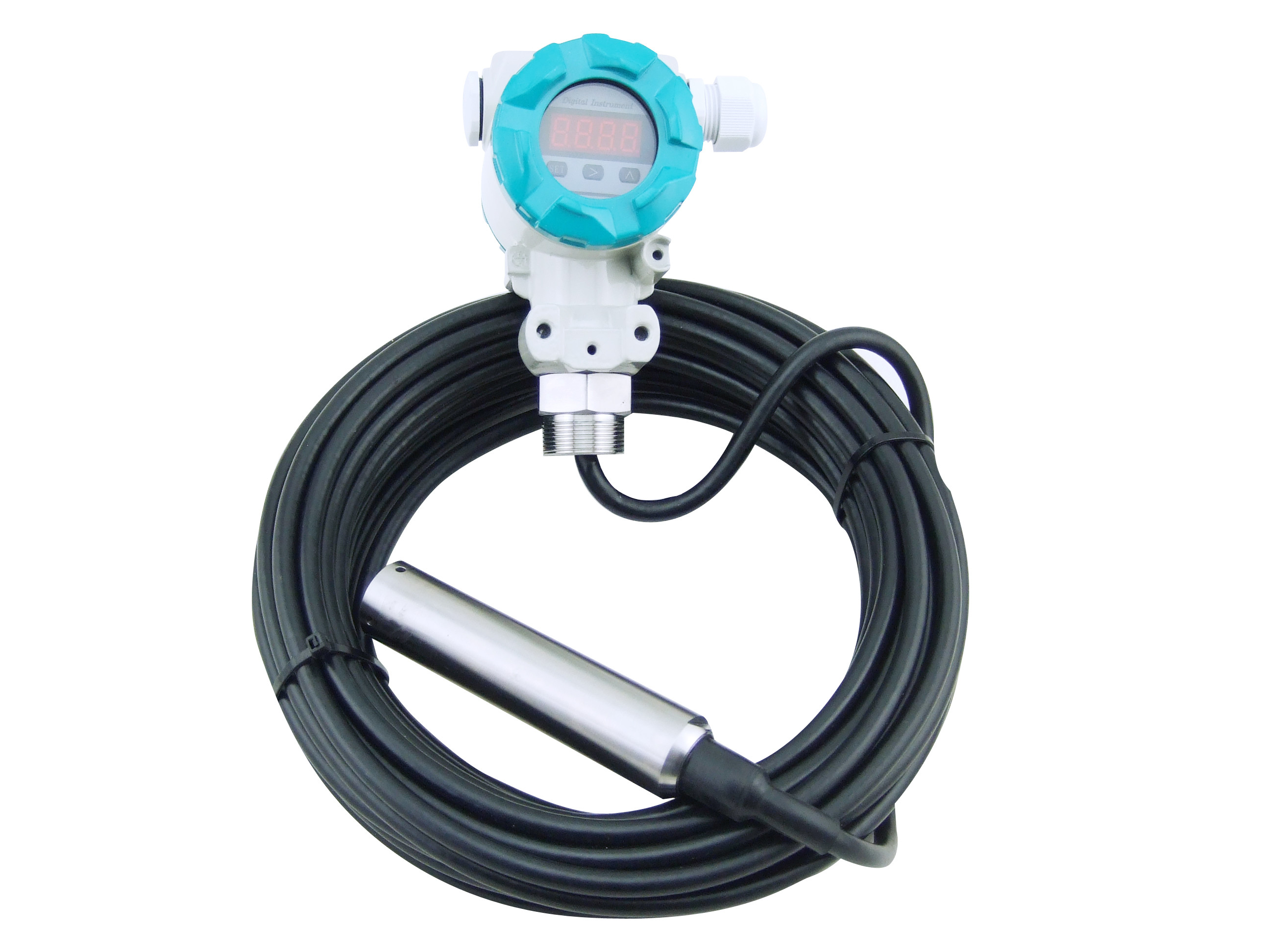

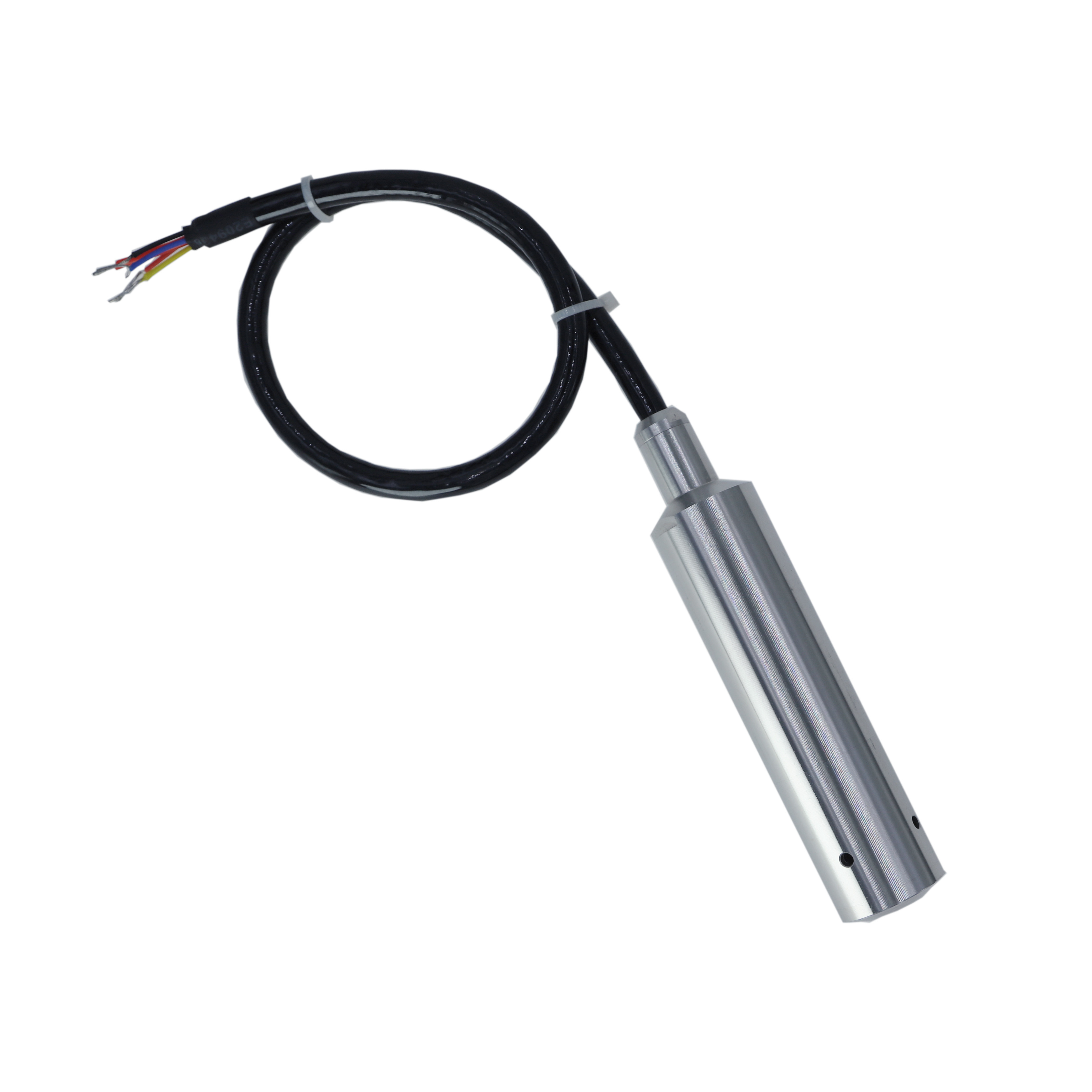

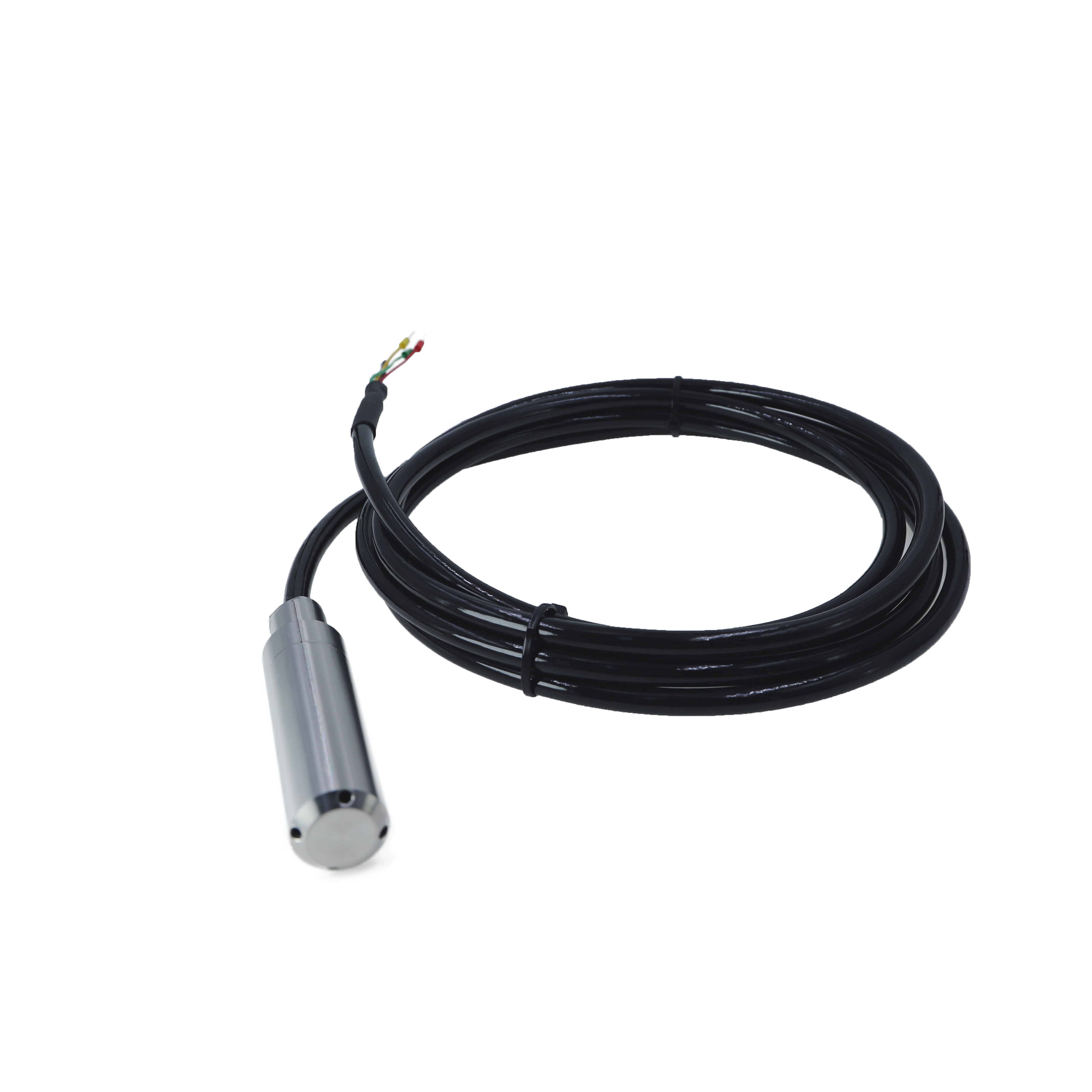

SPT21W Level Transmitter
·Integrated construction, unnecessary to do outer adjustment
·Sensor housing protection IP68
·Cost-efficient, high reliability and stability;
SPT21W is full sealed submersible level transmitter. It is made by building in high stable and reliable OEM piezo-resistive pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.
SPT21W level transmitter has compact size, light weight and good stability; it can be used for water or liquid measure and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.
|Range(FS)||1 2 5 10 20 50 100 200mWC|
|Overpressure||2 times FS|
|Thermal drift|| offset span
range＞10mWC 0.02％FS/℃ 0.05％FS/℃
range≤10mWC 0.05％FS/℃ 0.05％FS/℃
|Application temp. range||-10～80℃|
|Storage temp. range||-40～100℃|
- Please pay attention that the medium should be compatible with the contacted parts; please inform the density of the media (except water);
- Two kinds of cable are optional, polyurethane and polyethylene. The default is polyethylene. Polyurethane cable is more flexible and endurable; it can be selected due to the requirement;
- When the product is used in thunder storm area, we suggest the user to use protection device to protect the product and power grounding reliably;
- For special requirement, please feel free to contact us.
