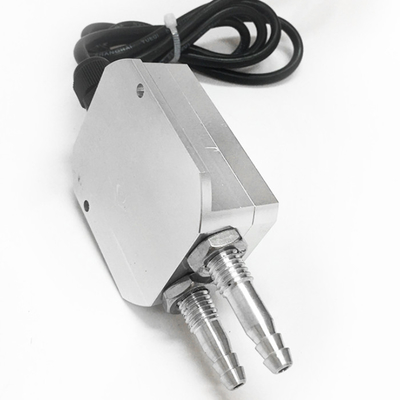

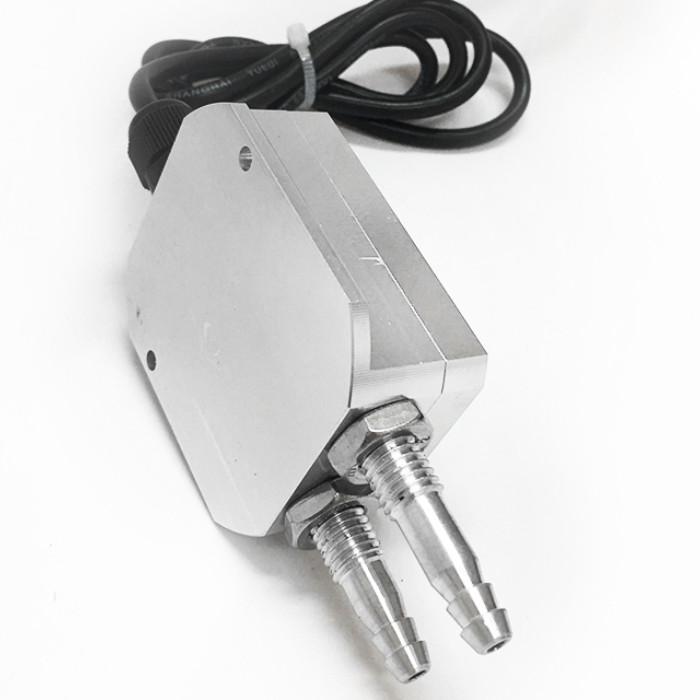

4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement

Place of Origin China
Brand Name Sier
Certification CE,RoHS
Model Number SPT91L
Minimum Order Quantity 1piece
Price USD60~100/Piece
Packaging Details Carton
Delivery Time 7
Payment Terms T/T, Western Union
Supply Ability 5000 pieces each month
Product Details
Measurement Range -10Pa~100Pa, -100kPa~+100kPa Customized Support OEM, ODM
Measured Media Air, Gas Output Signals 4-20mA, 1-5V
Housing Material Aluminum Working Temperature -10~70℃
Leave a Message
Product Description

Description

This type low pressure(differential) transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.



Specification

Applicable media
Gas, Steam
Pressure Measurement
Gauge pressure, Differential pressure
Pressure range
-10Pa~100Pa, -100kPa~+100kPa
Accuracy
0.2%, 0.5%
Stability
0.8%F.S./Year
Maximum static pressure
70 KPa
Max overload
250% of sensor range
Output signals
4~20mA
Housing material
Aluminum14
Induct Pressure Connection:
M 8x1 female or Ø 8 dowel connection

Power Supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Compensation temperature
-10~70℃
Working temperature
-10~70℃





Outline Construction


(Unit: mm)



4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement 0



Application: It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
